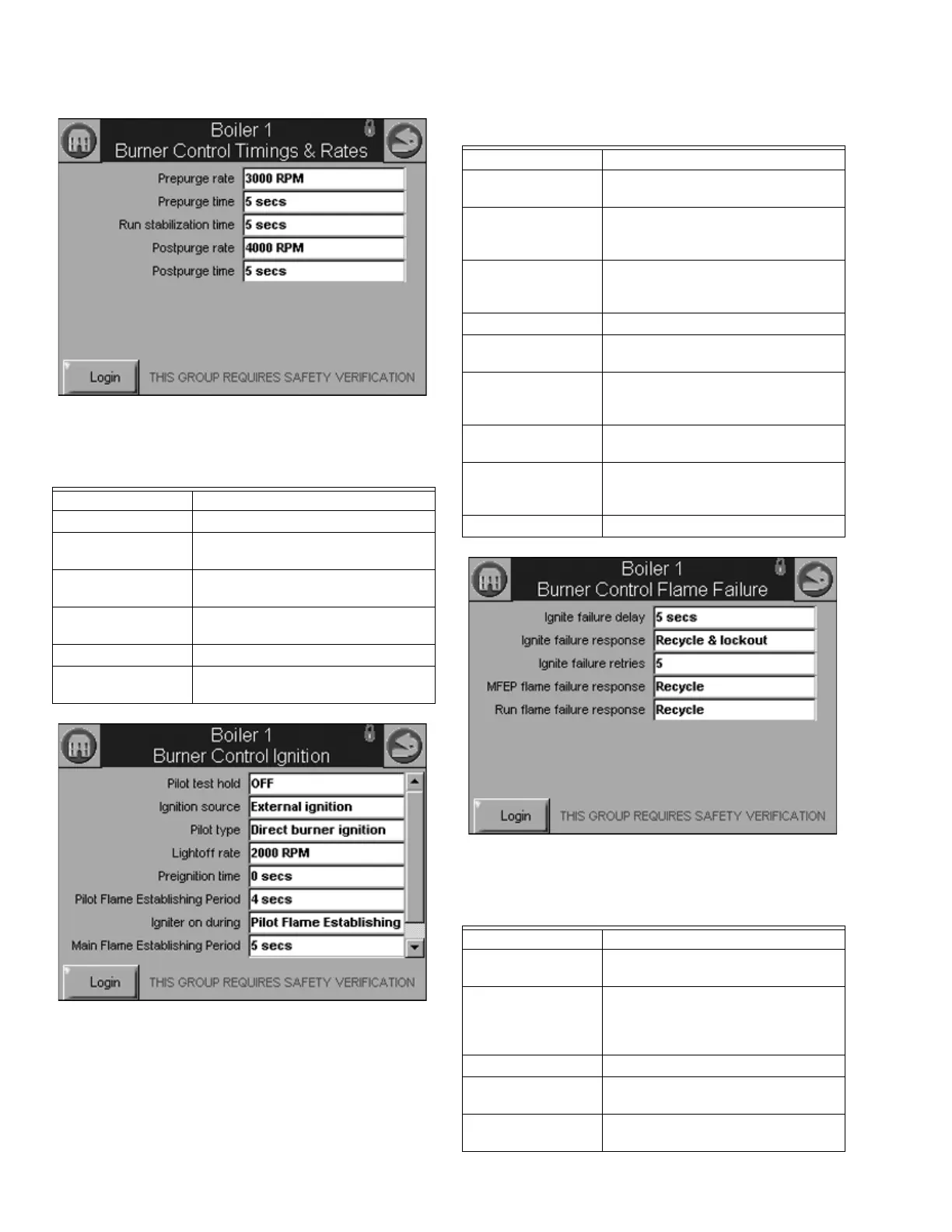

Fig. 46. Burner Control Safety Timing configuration.
Fig. 47. Burner Control Ignition configuration.
Fig. 48. Burner Control Flame Failure configuration.
Table 19. Burner Control Safety Timing Configuration.
Parameter Comment
Prepurge rate RPM or %
Prepurge time 0-600 seconds
0 = Not configured
Run stabilization time 0-600 seconds
0 = Not configured
Pre-ignition time 0-600 seconds
0xFFFF=Not configured
Postpurge rate RPM or %
Postpurge time 0-600 seconds
0 = Not configured
Table 20. Burner Control Ignition Configuration.
Parameter Comment
Pilot test hold ON
OFF
Ignition source Hot Surface Igniter
External ignition
Internal ignition
Pilot type Direct burner ignition
Intermittent
Interrupted
Lightoff rate %
Preignition time 0-600 seconds
0 = Not configured
Pilot Flame
Establishing Period
15 secs
10 secs
4 secs
Igniter on during 1st half of PFEP
Pilot Flame Establishing Period
Main Flame
Establishing Period
15 secs
10 secs
5 secs
Flame Threshold μA/V
Table 21. Burner Control Flame Failure Configuration.
Parameter Comment
Ignite failure delay 0-600 seconds
0 = Not configured
Ignite failure
response
Lockout
Continuous recycle
Recycle & hold
Recycle & lockout
Ignite failure retries 3 or 5
MFEP flame failure
response
Recycle
Lockout
Run flame failure
response
Recycle
Lockout
