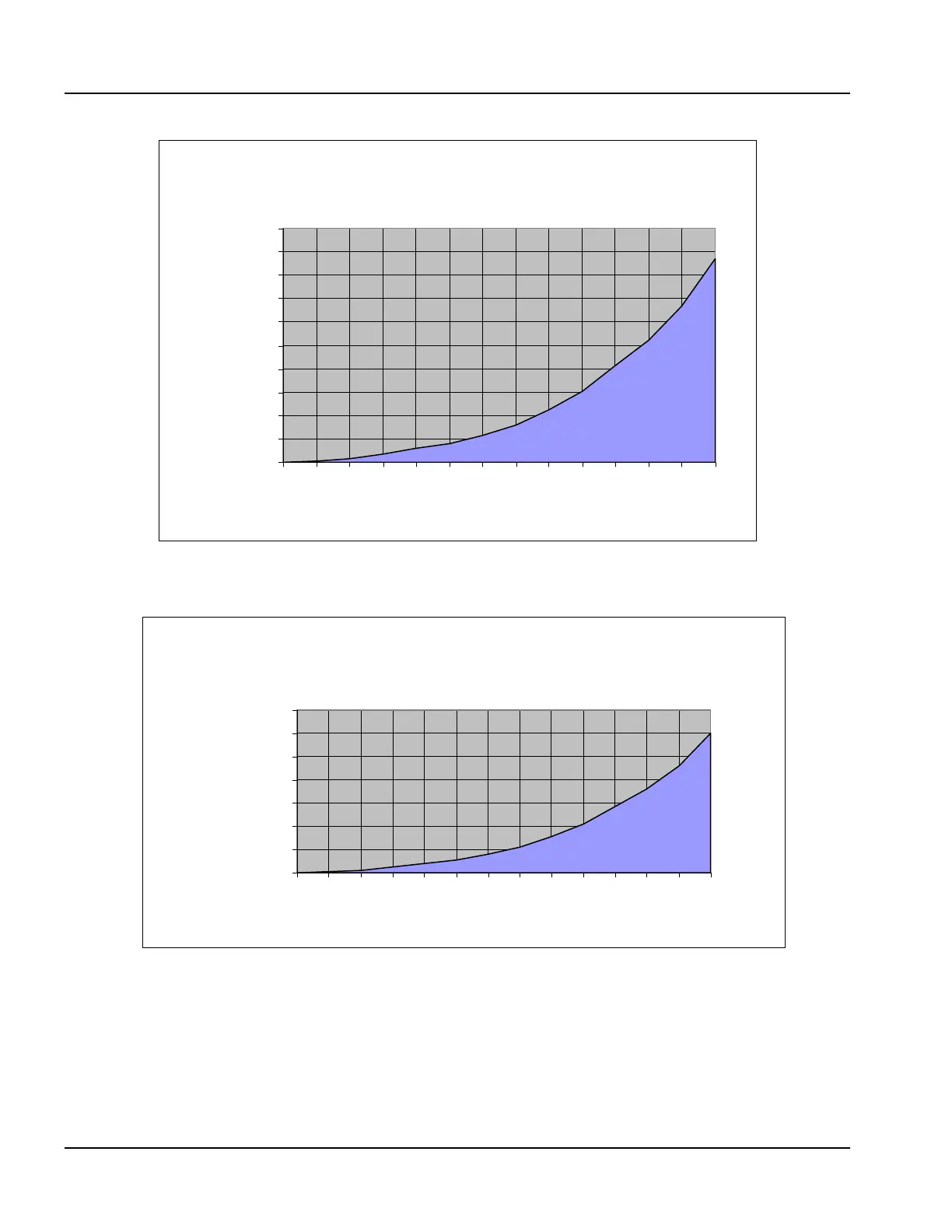

Figure 2-22 Pressure Drop Curve, CFC 1500, U.S. Flow Rates
Figure 2-23 Pressure Drop Curve, CFC 1500, Metric Flow Rates
Hydraulic Resistance CFC 1500
U.S. Standards
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
0 8.8 22 44 66 88 110 132 154 176 198 220 242 264
Flow - GPM
Pressure- PSI
Hydraulic Resistance CFC 1500
Metric
0
20
40
60
80
100
120
140
0 2 5 1015202530354045505560
Flow m3/h
Pressure mbar
