CleaverBrooks CFC User Manual

Section 2 — Installation
Part No. 750-263 2-25

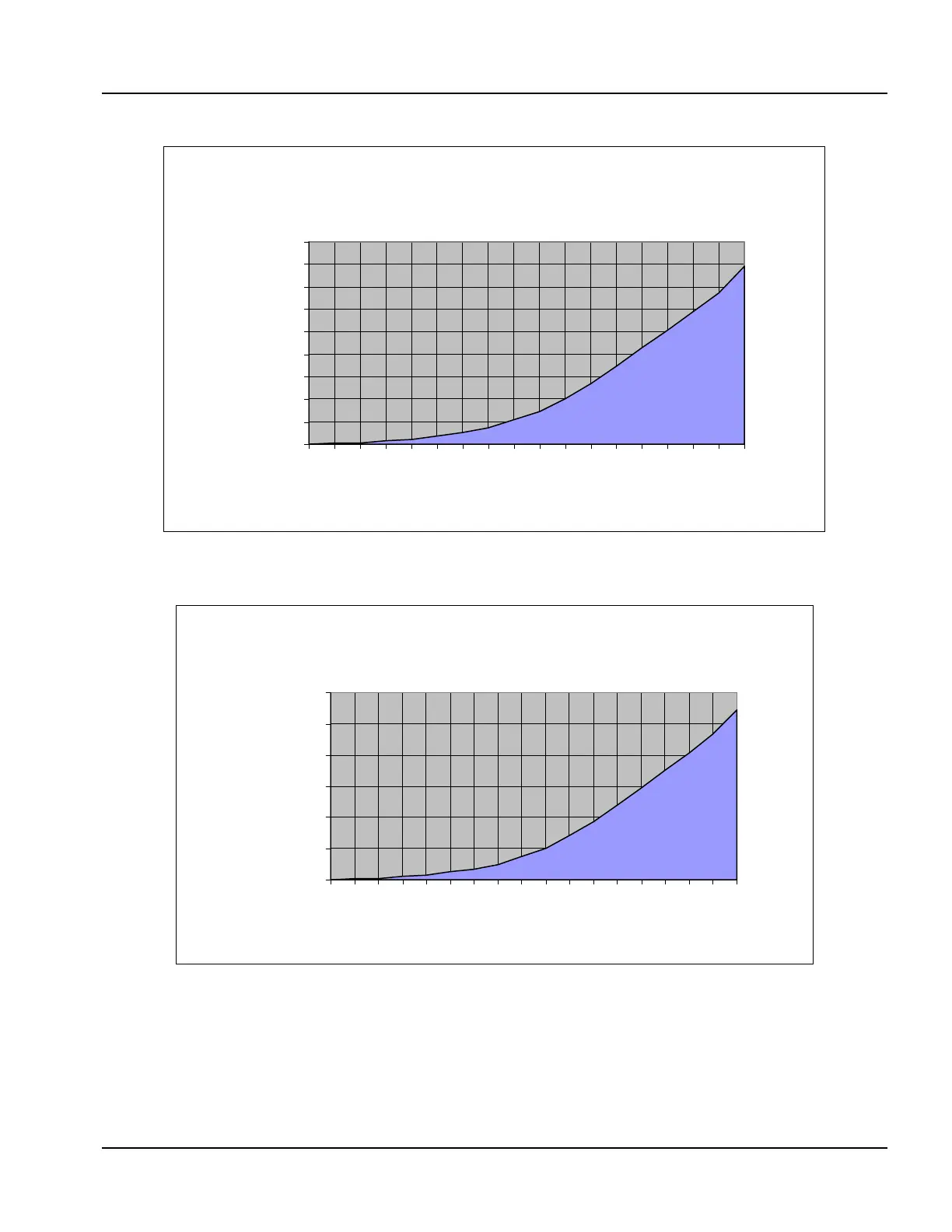

Figure 2-24 Pressure Drop Curve, CFC 1800, U.S. Flow Rates
Figure 2-25 Pressure Drop Curve, CFC 1800, Metric Flow Rates
Hydraulic Resistance CFC 1800
U.S. Standards
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
0
8.8
22 44 66 88
110 132 154 176 198 220 242 264 286 308 330 352
Flow - GPM
Pressure - PSI
Hydraulic Resistance CFC 1800
Metric
0
20
40
60
80
100
120
0 2 5 101520253035404550556065707580
Flow m3/h
Pressure mbar
