PRODUCT DATA
Hydronic Control
APPLICATION

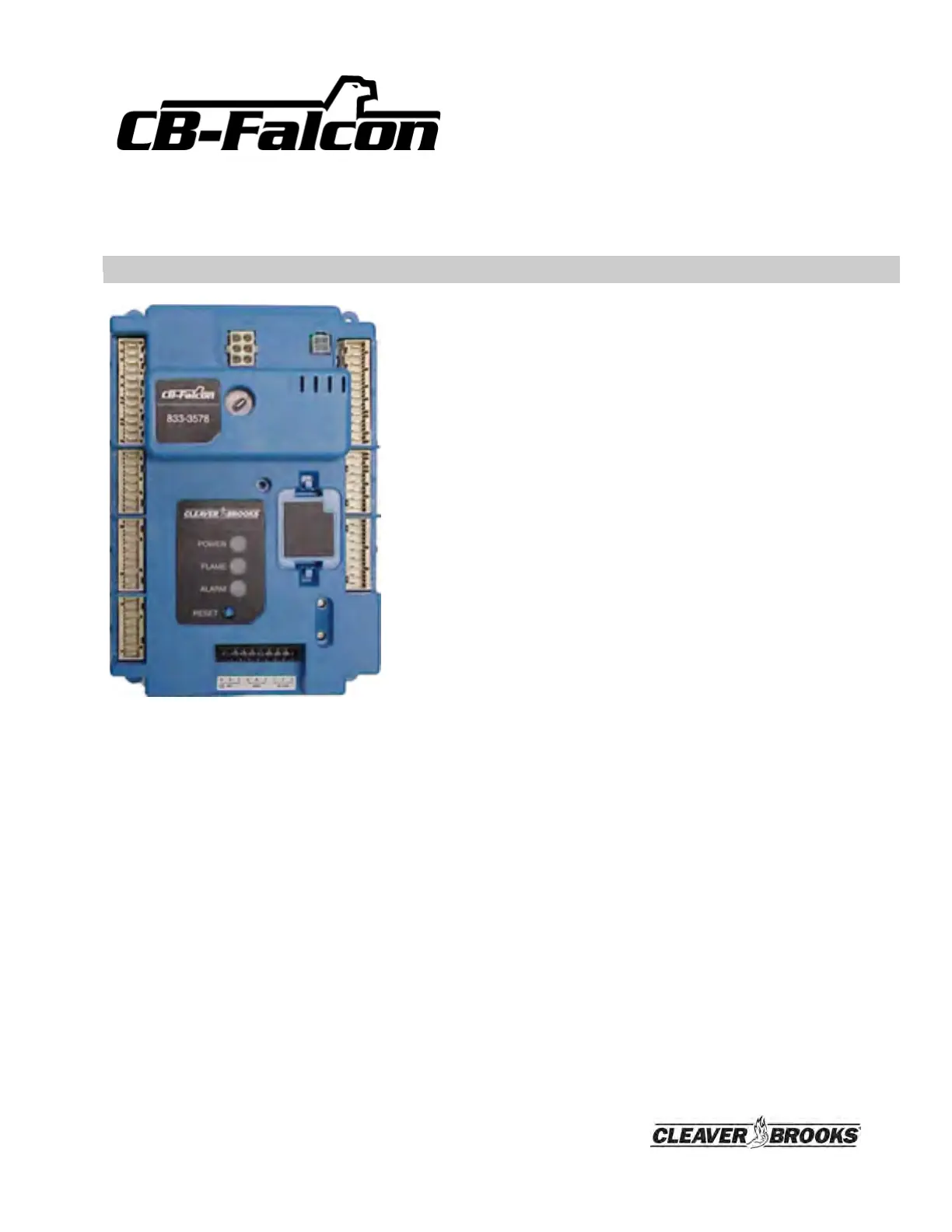

The CB Falcon is a hydronic boiler control system
that provides heat control, flame supervision, circulation pump
control, fan control, boiler control, and electric ignition
function. It will also provide boiler status and error reporting.
Multiple boilers can be joined together to heat a system
instead of a single, larger burner or boiler. Using boilers in
parallel is more efficient, costs less, reduces emissions,
improves load control, and is more flexible than the traditional
large boiler.
FEATURES
Safety and Boiler Protection
• Frost Protection, Slow Start, Anti-condensate, Boiler
Delta-T, Stack Limit, Boiler Limit, DHW Limit, Outlet T-
Rise Limit
Integrated Control Functions:
• Primary Flame Safeguard Control
• Internal or external spark generator
• Analog Input using 10kohm NTC Sensor
• Outlet Limit And Temperature
• DHW (Domestic Hot Water) Limit and
Temperature
• Stack Temperature Limit and Temperature
• Inlet Temperature
• Outdoor Temperature
• Other Analog Inputs
• PWM Feedback
• Flame Signal from either a Flame Rod or
Ultraviolet Detector
• PID Load Control
• CH (Central Heat)
• DHW (Domestic Hot Water)
• Digital Inputs
• Pre Ignition Interlock
• LCI (Load [or Limit]Control Input)
• Airflow Interlock
• Annunciation (8 Programmable) (6
Programmable plus High Fire and Low Fire
Switch Interlocks)
• Remote Reset
• TOD (Time of Day)
CB Falcon System Consists of:
CB Falcon Control Device
833-3577 Touchscreen Display—required for setup and ModBus communication but not required for the system to operate once
the CB Falcon is programmed.
Flame Rod or UV flame detector
Temperature Sensor, NTC Type 10KΩ at 77°F (25°C) or 12KΩ at 77°F (25°C)
Limit Sensor, NTC Type 10KΩ at 77°F (25°C)
Local Keyboard Display Module
Fans (VFD)
