Installation of the dual-antenna mode
B-2 Appendix B: Antenna Diversity Solution (ADS) 98-148248-C
You can use the SAILOR VSAT in dual antenna mode (ADS) to minimize downtime of the
service. The following figure shows a simplified system overview of the SAILOR VSAT ADS.
B.2 Installation of the dual-antenna mode
Parts needed
The following parts are needed for the SAILOR 600 VSAT Ka ADS:
• 1 x complete SAILOR VSAT system (Master System)
• 1 x additional SAILOR ADU (Slave Above Deck Unit)
• 1 x additional SAILOR ACU (Slave Antenna Control Unit)
• 1 x 407090D-010 SAILOR ADS Cable Kit (Cable and RF splitters)
The SAILOR ADS Cable Kit consists of two 75 Ohm RF cables, two RF splitters/combiners
and a keyline-signal splitter cable.

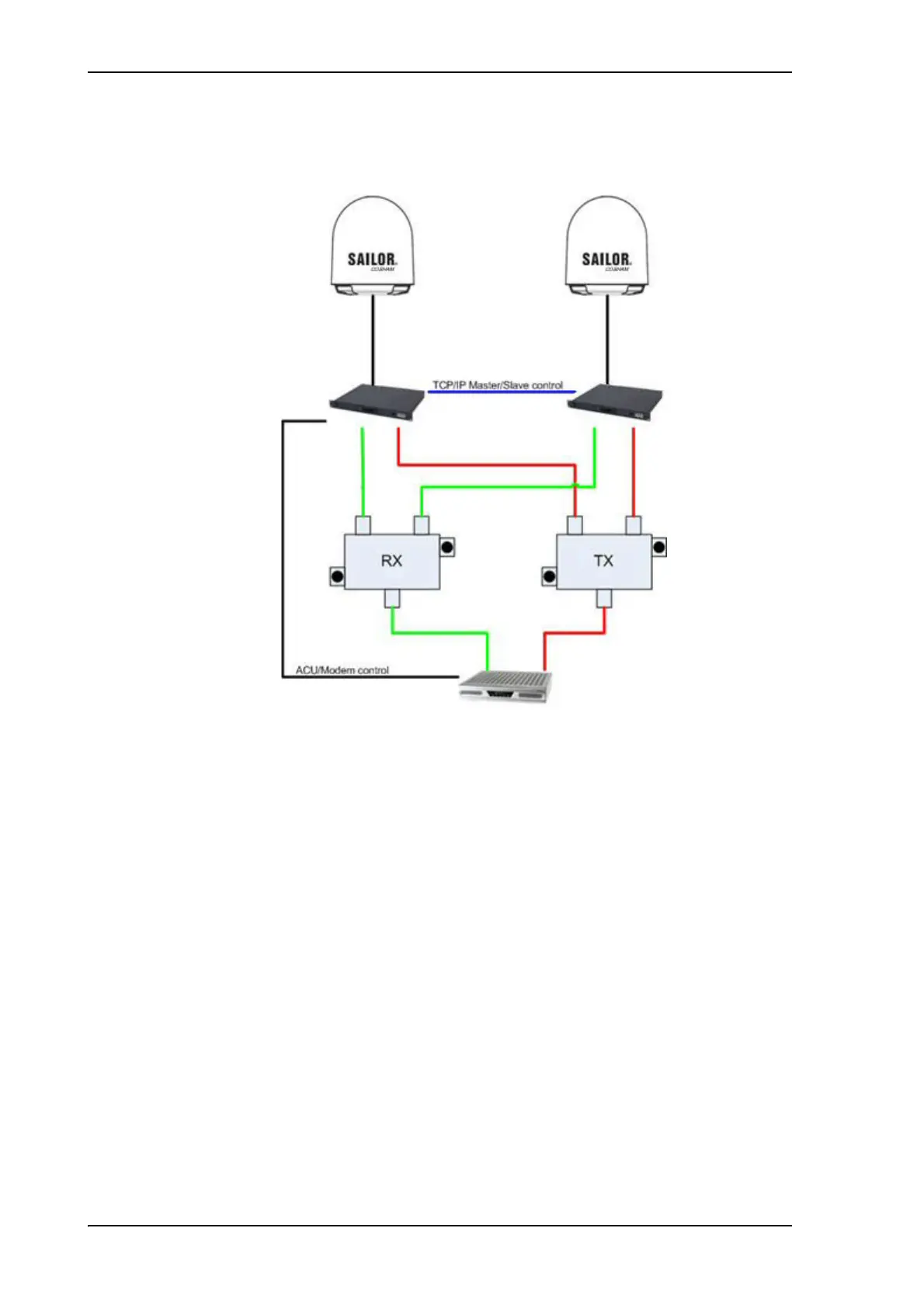

Figure B-1: Simplified system overview
