SAILOR 600 VSAT Ka system
98-148248-C Chapter 2: Introduction 2-7
2222
• On/Off power switch (at the front).
2.1.4 VSAT modem
2.1.4.1 iDirect X7 Modem
The iDirect X7 Modem modem is not supplied by Cobham SATCOM. The modem has the
following interfaces and connectors:
•GND
• 100-240 VAC power connector
• 8 LAN ports, one to ACU
• RS-422 interface BUC I/O
• RS-232 Console for modem control
• Tx Out (F-connector)
• Rx1 (F connector), Rx 2 not used
2.1.4.2 NEWTEC Dialog (Open AMIP) modem
The NEWTEC Dialog (Open AMIP) modem is not supplied by Cobham SATCOM. The
modem has the following interfaces and connectors:
• 100-240 VAC power connector (2x)
• Tx1 (F-connector), Tx2 not used
• Rx1 (F-connector), Rx2 not used
• 10MHz REF in (BNC), not used
•4x LAN ports, one to ACU
• USB connector, not used
•GND

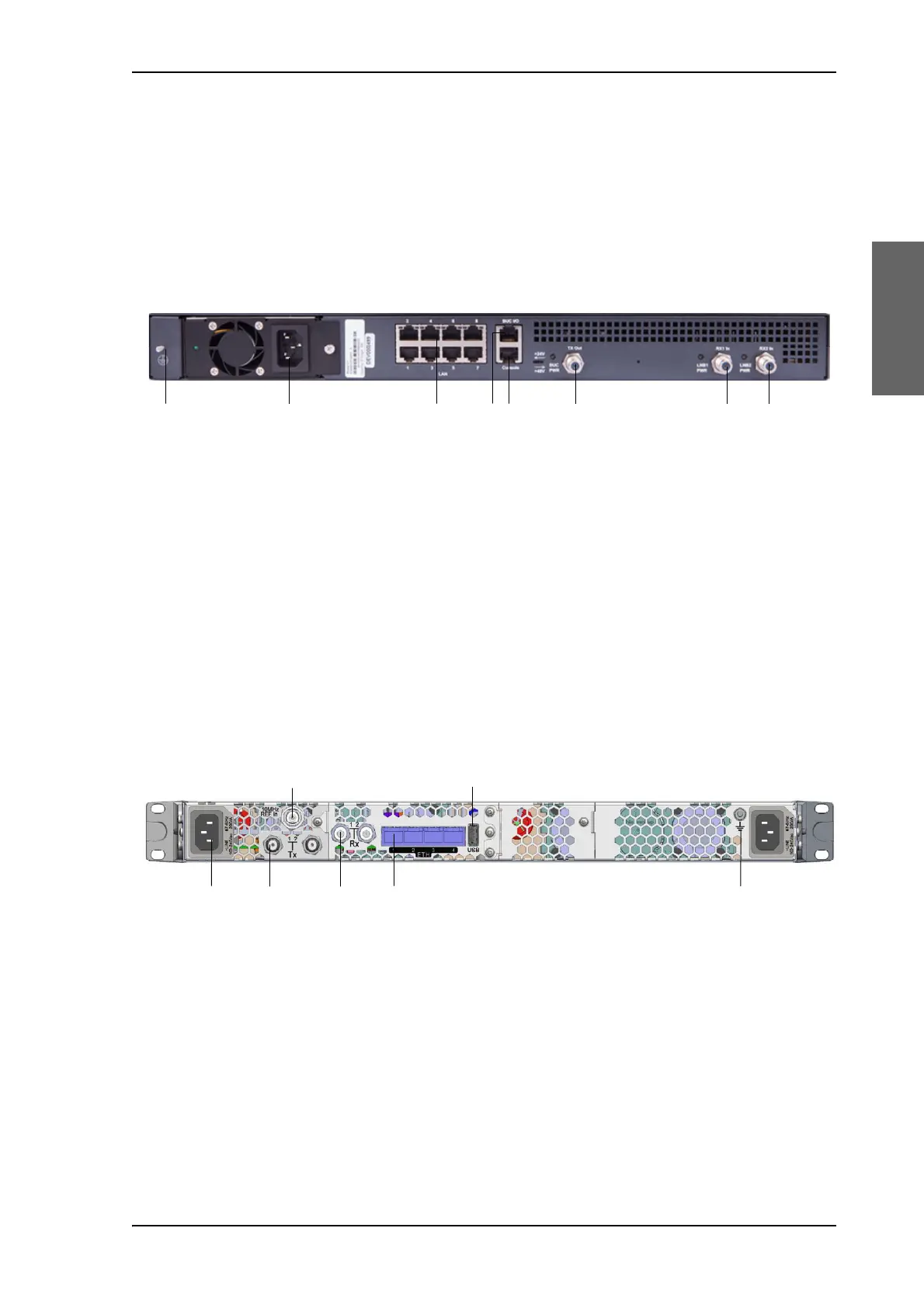

Figure 2-8: Connector panel of the iDirect X7 modem
&RPPXQLFDWLRQ
ZLWK$&8
7[2XW
5[,Q*URXQG
56
&RQVROH
$&3RZHU
5[,Q
QRWDFWLYH
56
%8&,2
Figure 2-9: Connector panel of the NEWTEC Dialog (Open AMIP) modem
&RPPXQLFDWLRQ
ZLWK$&8
7[2XW
7[IXWXUHXVH
5[,Q
5[IXWXUHXVH
*URXQG
$&3RZHU
1RWXVHG
1RWXVHG
