Configuration of the dual antenna mode
B-8 Appendix B: Antenna Diversity Solution (ADS) 98-148248-C

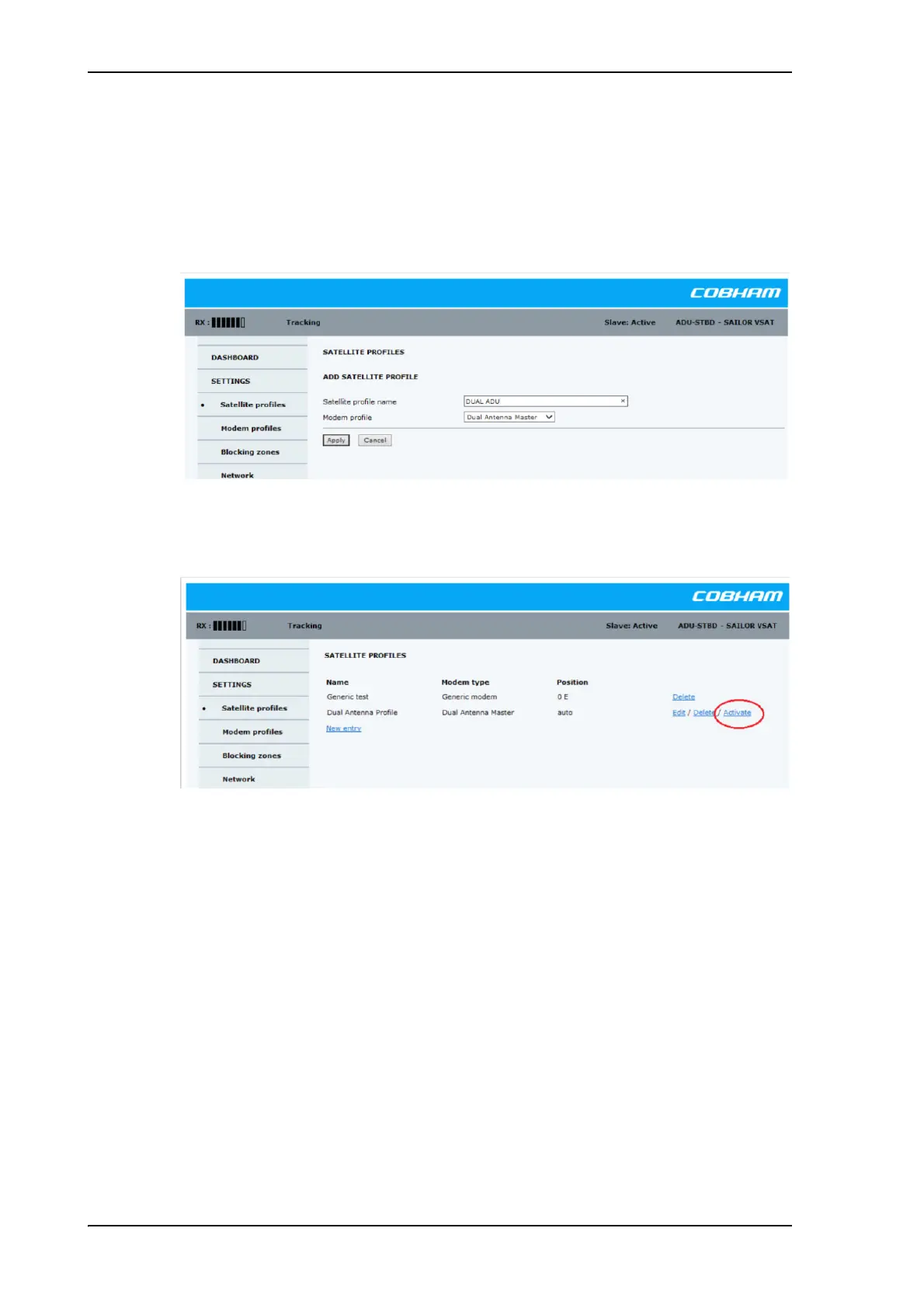

10. Add a satellite profile that uses the modem profile Dual Antenna Master, go to
SETTINGS > Satellite profiles > New entry.
11. Enter the satellite profile name, for example: Dual ADU.
12. As modem profile select Dual Antenna Master.
13. Click Apply.
14. Go to SETTINGS > Satellite profiles.
15. Click Activate to activate the satellite profile Dual Antenna Master.
B.3.4 To set up blocking zones for dual antenna setup
It is recommended to define the following 3 types of blocking zones in each SAILOR VSAT
system:
1. Actual blocking zones on the vessel (No TX)
2. Switching blocking zones (TX allowed), zones leading up to actual blocking zones,
allowing the system to switch antenna before any actual blocking is encountered.
3. Personnel safety zones (No TX), a type of blocking zone securing safe passage without
the risk of entering VSAT RF radiation.
Figure B-6: Setup of the Slave ACU 2/3
Figure B-7: Setup of the Slave ACU 3/3
