98-148248-C 2-1
Chapter 2
2222
Introduction 2
This chapter has the following sections:
• SAILOR 600 VSAT Ka system
• Part numbers and options
2.1 SAILOR 600 VSAT Ka system
2.1.1 Overview
The SAILOR 600 VSAT Ka is a unique stabilized maritime VSAT antenna system operating in
the Ka-band (19.2 to 30 GHz). It provides bi-directional IP data connections both on
regional satellite beams and quasi-global Ka-band satellite networks. The following figure
shows a coverage map of the Ka service.
The SAILOR 600 VSAT Ka system consists of the following units:
• SAILOR 7006B Above Deck Unit (ADU) or SAILOR 7006F ADU (High Power)
• SAILOR 7016C Antenna Control Unit (ACU)
The system requires a single 50 Ohm coaxial cable to provide the Above Deck Unit (ADU)
with both DC power, data and control information. The radome does not have to be
removed neither before nor after the installation. To protect the ADU the built-in motors
act as brakes during transport and when the ADU is not powered. You can access the
SAILOR 600 VSAT Ka remotely and make in-depth performance analysis using the built-in
web interface. The following figure shows the SAILOR 600 VSAT Ka system.

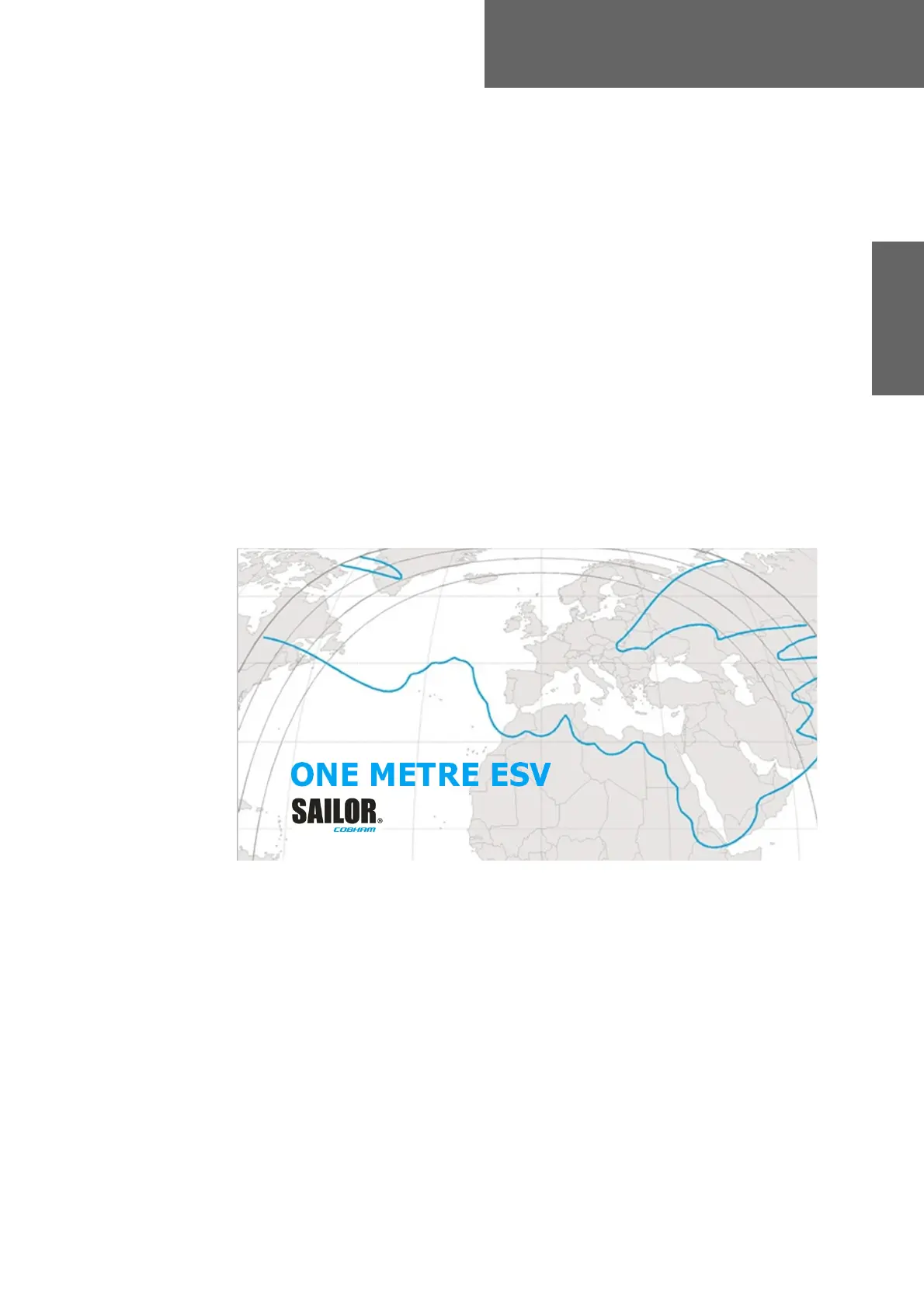

Figure 2-1: Coverage map for a Ka service (example)
