Keypad and menus of the ACU
98-148248-C Chapter 6: Configuration 6-41
6666
3. NAV: Navigational information
First letter: G (Valid GPS signal received from the GPS module) or g (No valid GPS fix)
Second letter: H (Valid ship heading data received from the ship’s gyro) or h (No valid
heading data).
4. MDM: Current status of the modem: TEST, ERROR, READY, INIT, RXOK, ACQ,
NETOK, RESET, OFF
5. LAN: LAN connectors used, 1, 2, 3, 4, –.
6. SAT: Longitude, satellite position of the currently active satellite profile.
7. RX:
1 (Rx1 Lock, - or 1),
- (Rx2 Lock, - or 2),
L (RX polarisation of currently active satellite profile: H (horizontal), V (vertical), L (left-
hand) R (right-hand).
8. RF tracking frequency in GHz and LNB LO Frequency.
9. TX: <Extern mute> <Modem TX> <ADU TX> <TX pol>
Read the TX status as follows: Upper case: Ok, lower case: Not ok, -: unknown
<Extern mute> = [U,u]
<Modem TX> = [m,M]
<ADU TX> = [a,A]
<Tx pol>=[-,X,C,L,R]
After 1 hour the display is dimmed to lowest intensity. Press any key to light up the display.

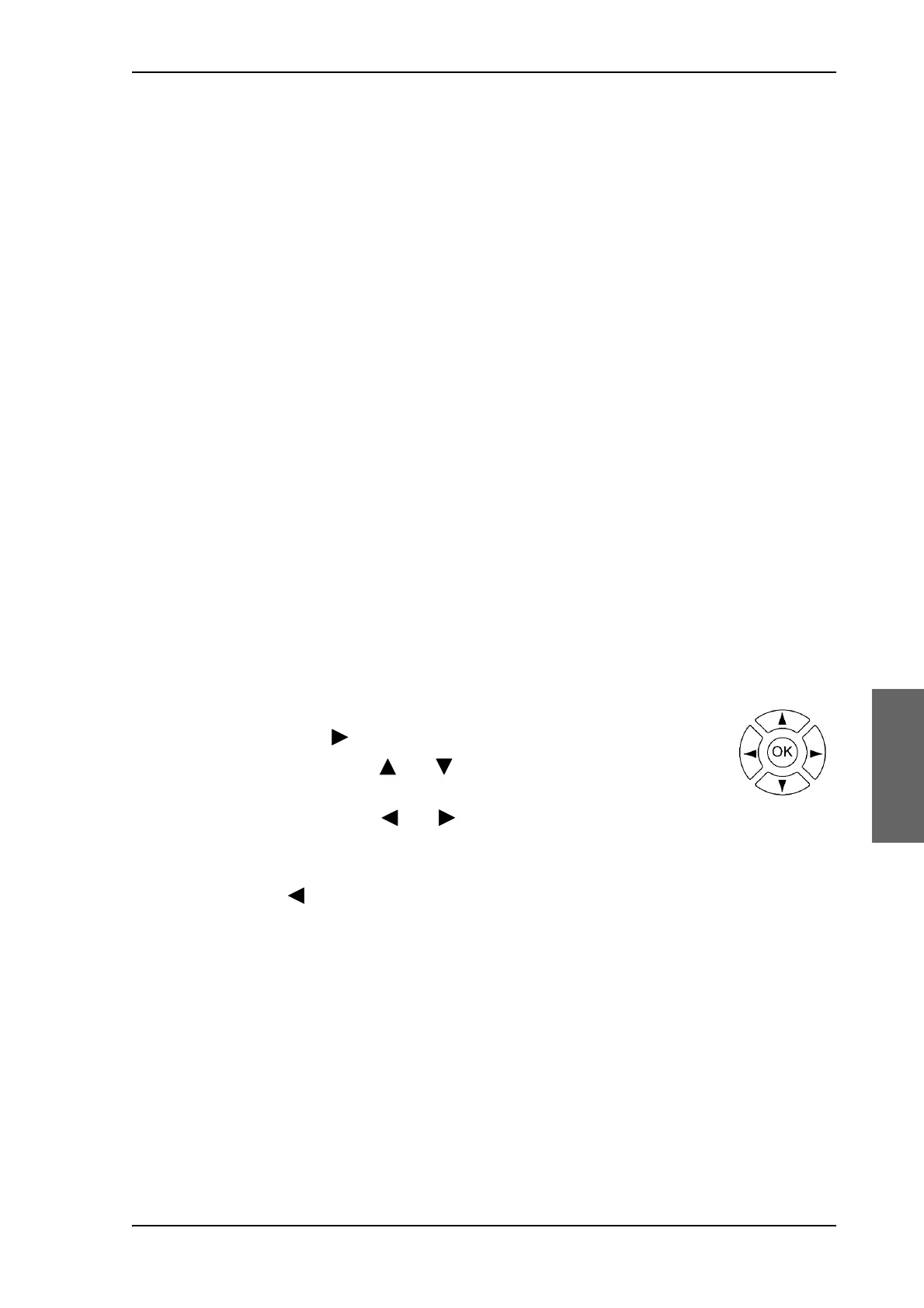

6.6.2 Navigating the menus
Use the keypad to navigate the menus.
•Press OK or to select a menu item.
• Use the arrow keys and to go through the menu items or enter
a number, digit by digit.
• Use the arrow keys and to go through the settings and move
from one digit to the next.
•Press OK to select a setting.
• Press again to move one level up. If applicable, confirm to store the new setting by
pressing OK.
6.6.3 The menu tree
In the menu tree you can see how the system has been configured. To enter satellite
information directly, use a connected PC and the web interface.
