Configuration of the dual antenna mode
B-6 Appendix B: Antenna Diversity Solution (ADS) 98-148248-C
The dual-antenna system switches between the 2 antennas in the following scenarios:
• When in a programmed blocking zone.
• When the signal of the active antenna is blocked for more than 2 minutes
• When the tracking signal is reduced to at least 4dB below the idle antenna.
• ADU is malfunctioning.
In the statistics report you can get more detailed information on the dual-antenna mode.
B.3.2 To configure the Master ACU
The Master ACU is configured exactly the same way as a stand-alone VSAT system with
satellite and modem profiles.
To activate the ACU to be a Dual Antenna Master do as follows:

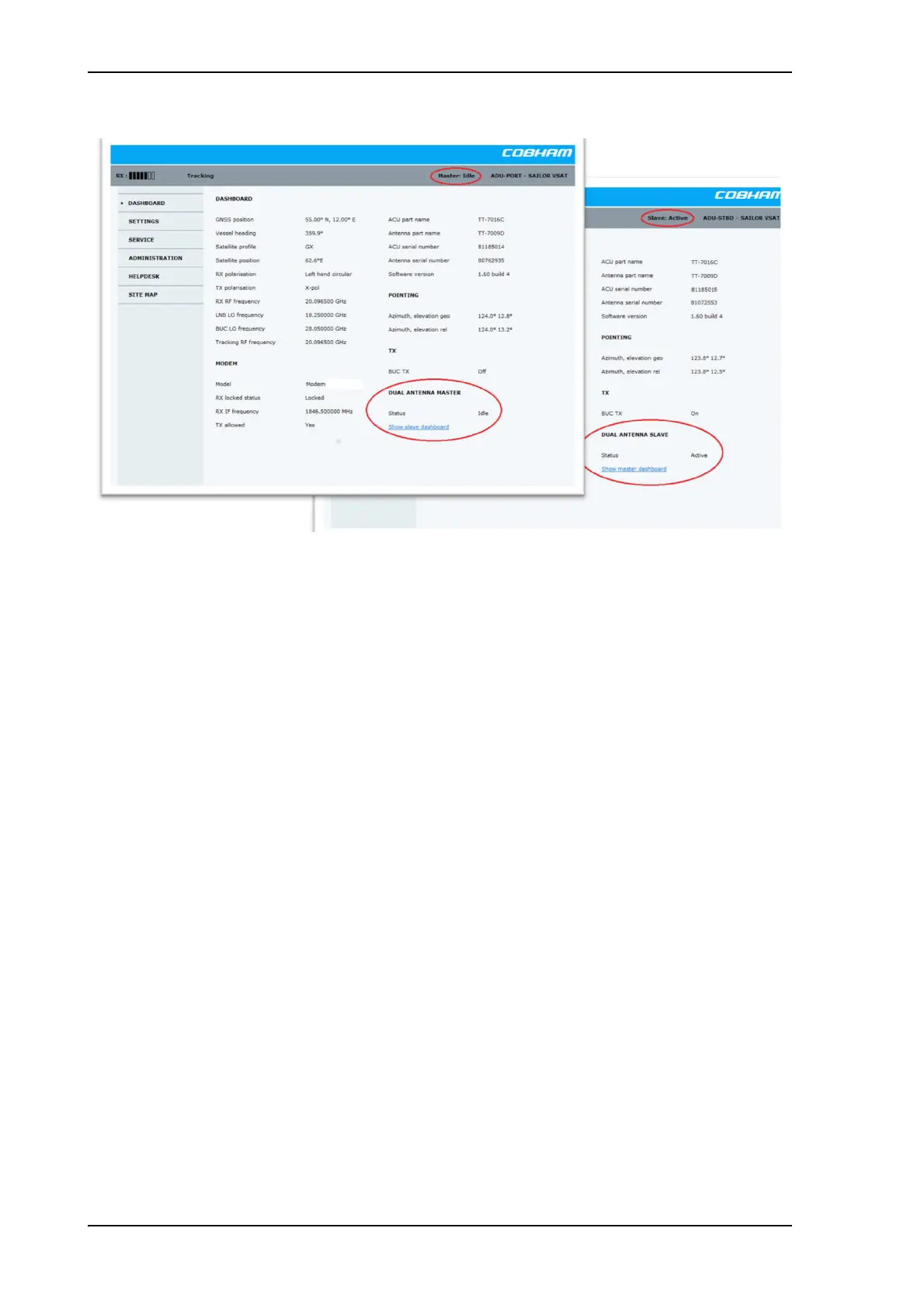

Figure B-3: Web interface, DASHBOARD of the Master and Slave antenna
