3.2.6.3 Mast without braces
The following figure shows the maximum mast length over the outer mast diameter.
Example: The mast outer diameter is 150 mm. Then the mast length must be shorter
than 82 cm.

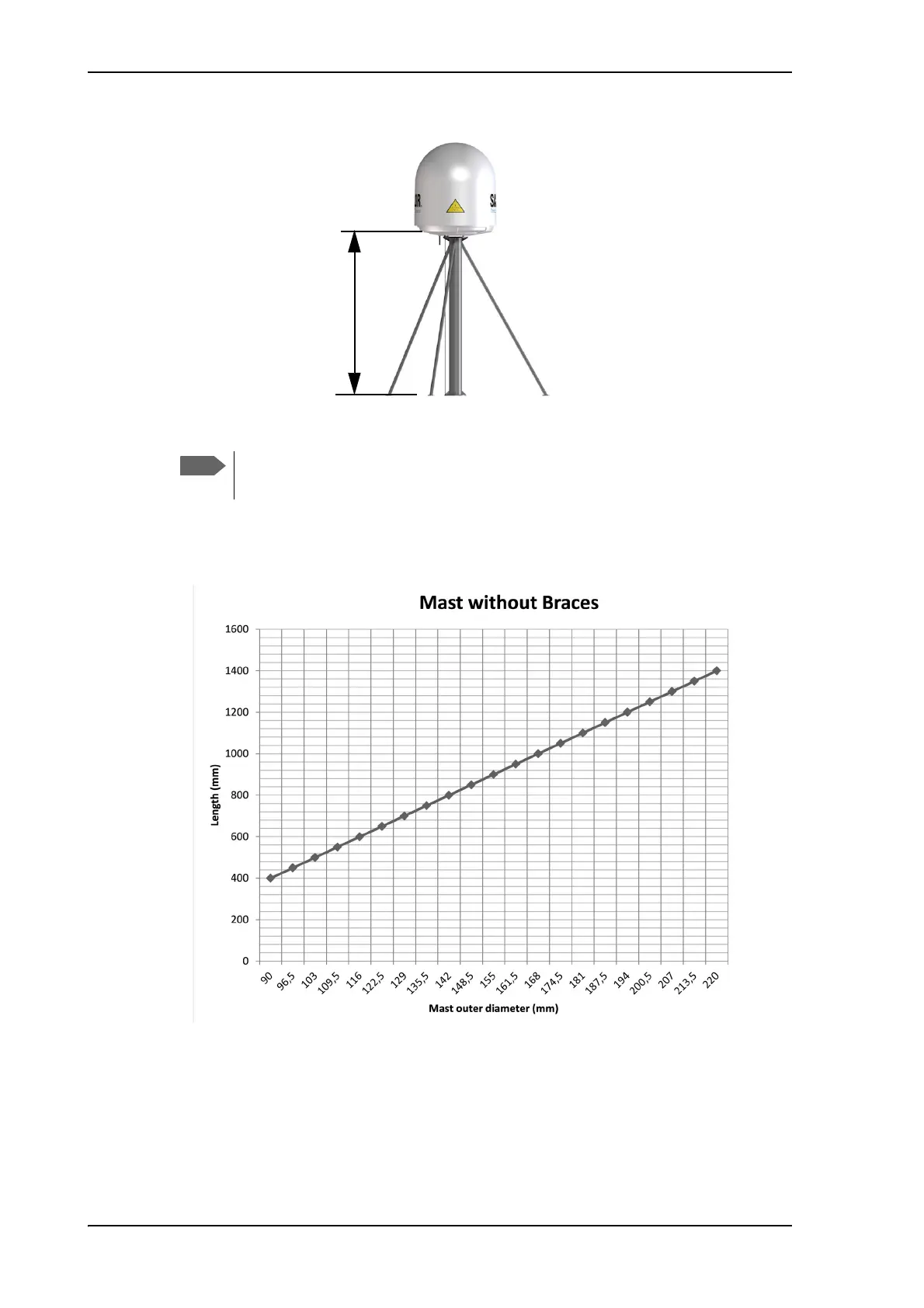

Figure 3-10: Free mast length and example bracing for a tall mast
Make sure that there is free space below the drain tube. See also Condensation,
water intrusion and deposits on page 3-16.
Figure 3-11: Maximum mast length for a mast without braces
