Automatic azimuth calibration with an active satellite profile
You can enable automatic azimuth calibration, even if there is no line of sight to an azimuth
calibration satellite the place of installation. To be able to use this feature you must have
made a valid satellite profile and activate it. When the vessel leaves the harbour and gets
line of sight to the calibration satellite, the system automatically finds and tracks the
satellite and makes the azimuth calibration. After a successful azimuth calibration the ACU
will automatically disable the Azimuth calibration (active satellite profile) on the
page SERVICE > Calibration.
1. Create a modem profile, see Modem profiles on page 6-22.
2. Create a satellite profile, see Satellite profiles on page 6-21.
3. Click SETTINGS and Activate the satellite profile.
4. Click SERVICE > Calibration.
6 No signal received. Check that there is free line of sight. Try again or try with
another satellite.
7 RF setup error, e.g. missing or invalid TX frequency.
8 Invalid satellite, e.g. satellite not visible.
9 Unknown error
Error code Explanation
Table 6-4: Possible error codes during calibration (Continued)

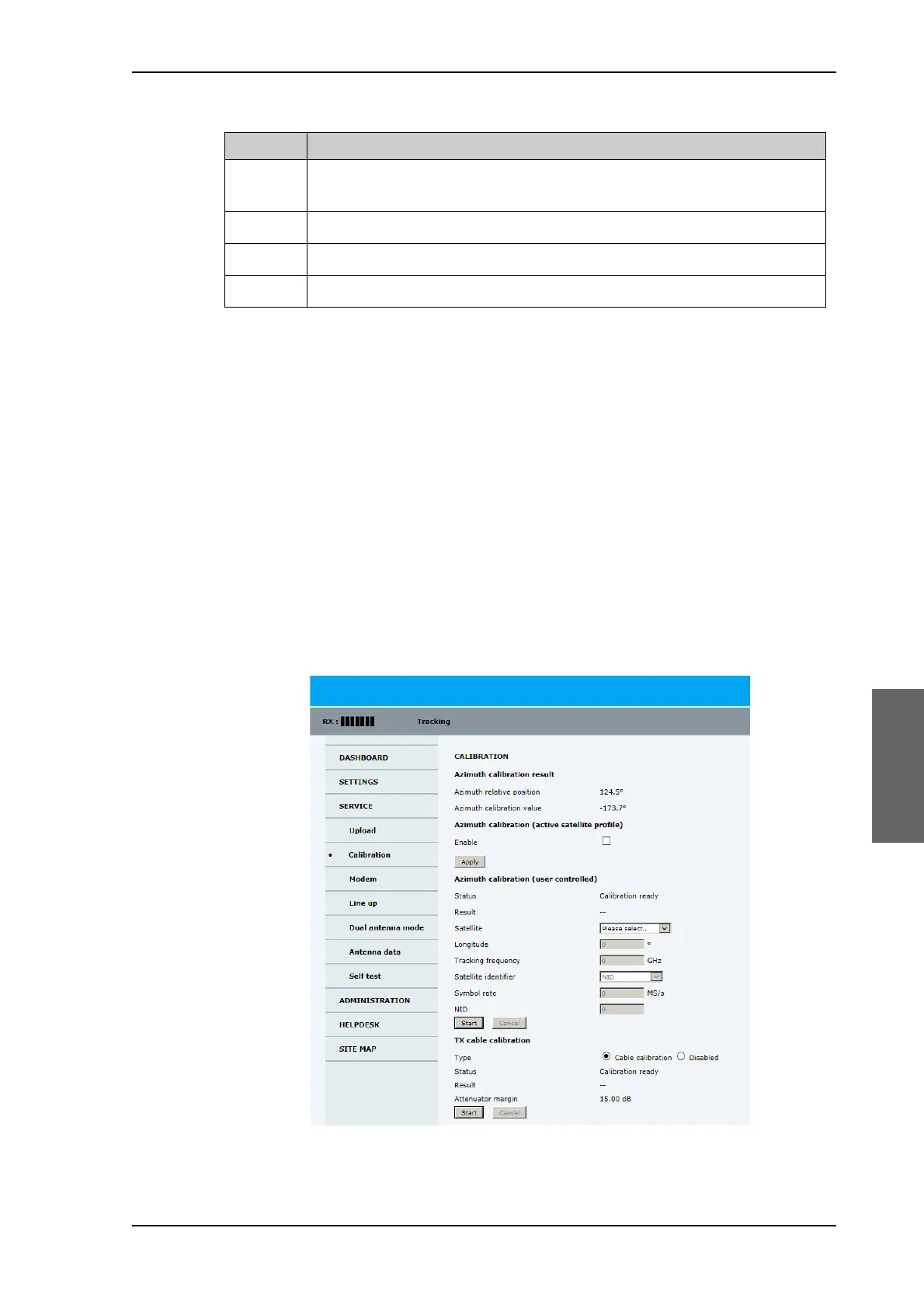

Figure 6-6: Web interface: SERVICE, Calibration (example)
