Satellite profiles and modem profiles
98-148248-C Chapter 6: Configuration 6-39
6666
Configuration
To import and export a system configuration
If you need to reuse a configuration in another SAILOR 600 VSAT Ka system, you can save
the current configuration to a configuration file. This file can then be loaded into another
SAILOR 600 VSAT Ka or be used as backup. The configuration file contains all the settings
you have entered during system setup: satellite profiles, modem profiles, LAN setup,
blocking zones, etc.
To save a configuration to a file, do as follows:
1. Select ADMINISTRATION > Export/import config.
2. Click the button Export. Follow the download instructions on the screen.
To load a configuration from a file, do as follows:
1. Select ADMINISTRATION > Export/import config.
2. Click the button Browse and locate the configuration file (.cfg file) you want to upload
3. Click the button Open.
4. Click the button Upload.
To clone a system configuration, do as follows:
1. Reset to factory default, see Reset to factory default and clear event history on
page 8-6.
2. Import a configuration from file, see section above.
To reset to factory default settings
Refer to Reset to factory default and clear event history on page 8-6.
Note
The antennas involved must have the same software version.

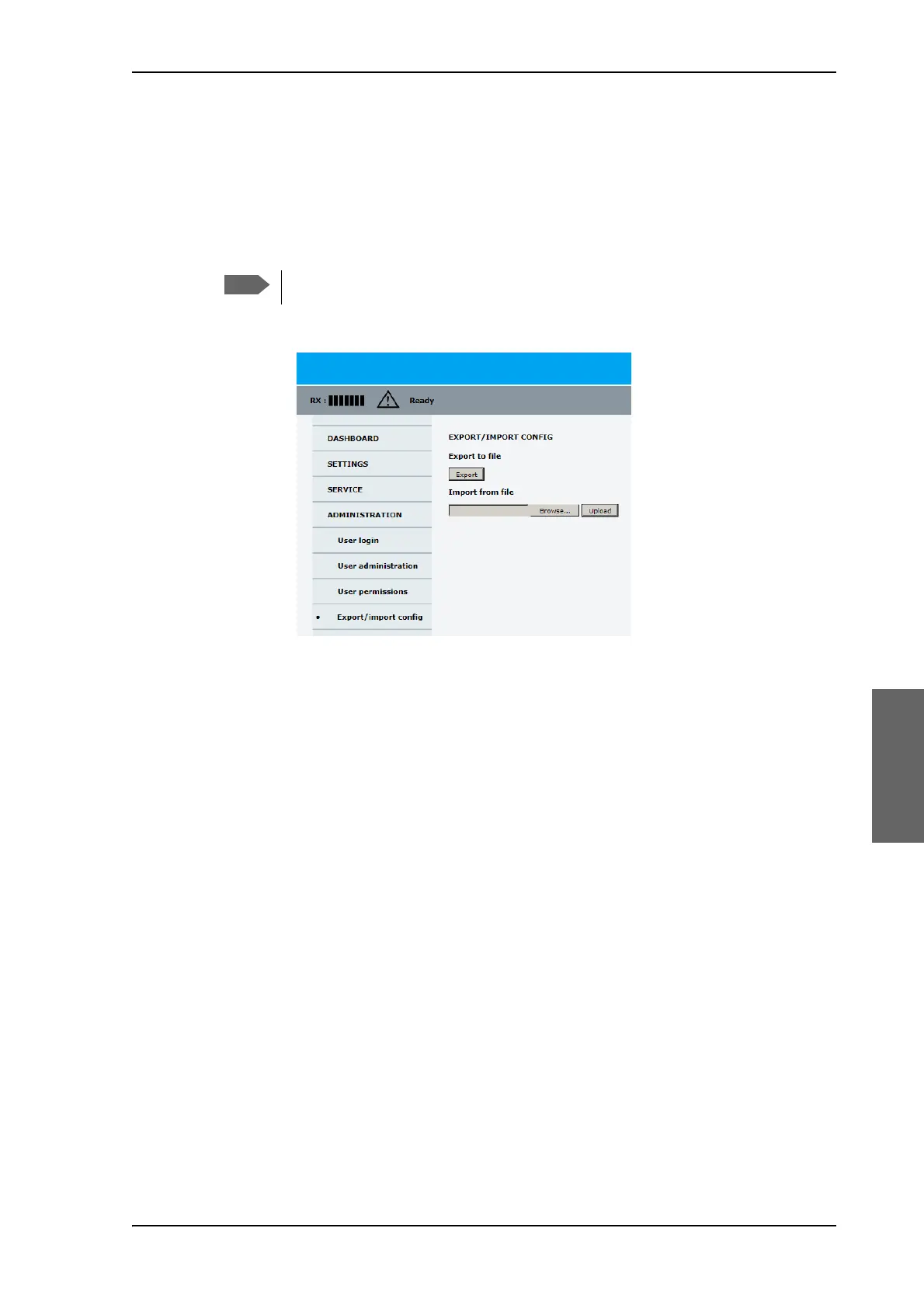

Figure 6-31: Web interface: ADMINISTRATION, Export/import configuration
