Power Connector Specifications
The Power connector is used to connect the power supply cable to VisionView.
Environmental Temperature
Operating: 0°C to 45°C (32°F to 113°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity
90%, non-condensing (Operating and Storage)
Protection
IP65 or NEMA 4 when properly panel-mounted in an IP65 or NEMA 4 rated enclosure or panel.
Shock
30 G Shock per IEC 68-2-27.
Vibration
2 G from 10-2000 Hz. Vibration per IEC 68-2-6.
Regulatory Compliance
CE, FCC, TUV SUD NRTL, RoHS
1. The Backlight Life may be increased beyond 50,000 hours by using the Inactivity Timeout. By default, if there is no operator interaction for the specified Inactivity
Timeout, the Brightness is dimmed to 10%, further increasing the Backlight Life.
2. VisionView Vision Sensor ports provide power to Cognex vision sensors requiring Power over Ethernet; connecting third party devices to these ports could damage
VisionView.
3. Do not connect more than one USB drive at a time to VisionView.
4. USB drives should be formatted with a FAT32 file system.

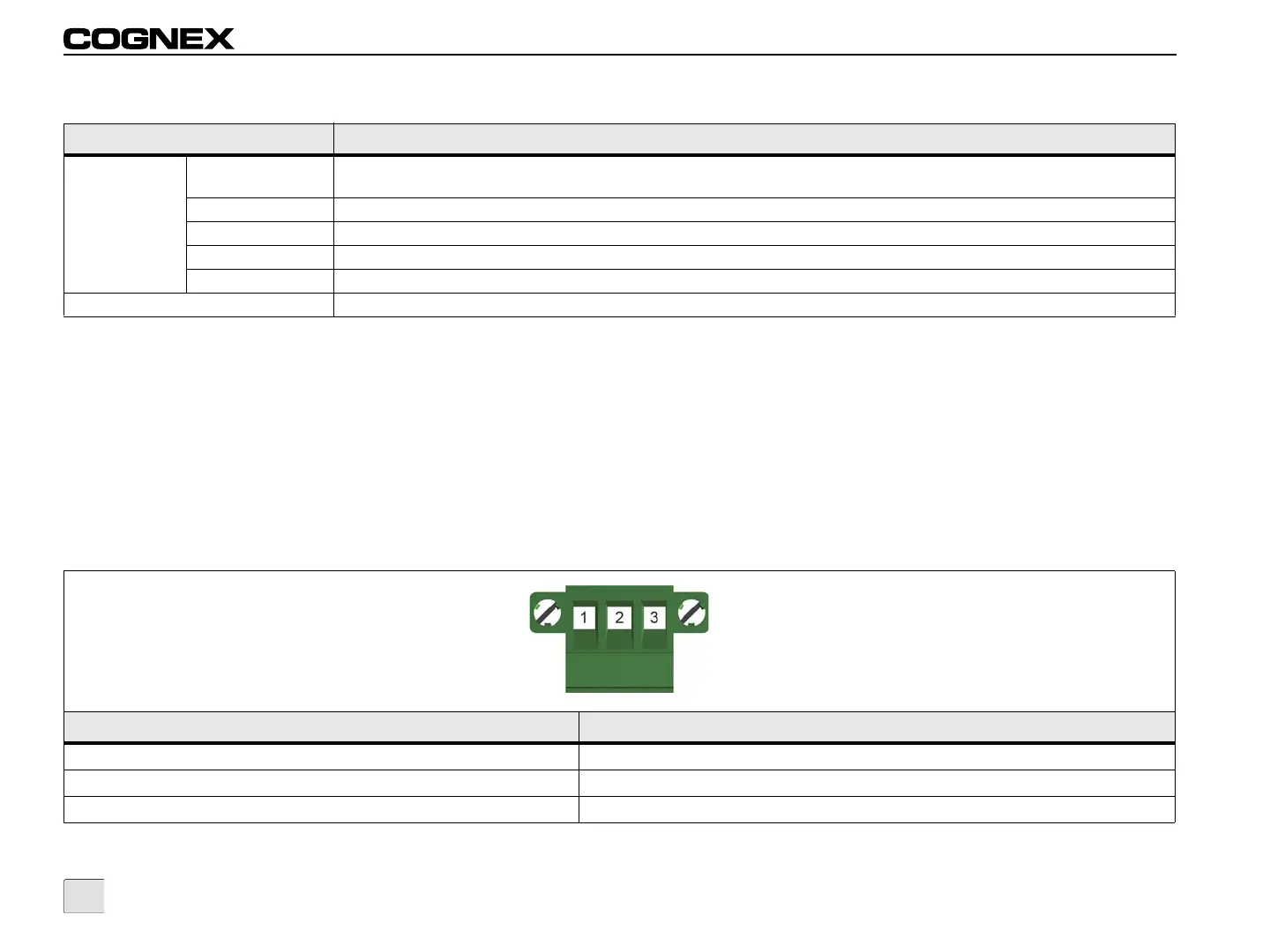

Table 8-2: Power Connector Pin-Out
Pin# Signal Name
1 Frame Ground
2 -24VDC (Return)
3 +24VDC (Power)
Table 8-1: VisionView 700 Specifications (Cont.)
Specification VisionView 700
