InteliLite 9 Global Guide
29
Split Ph – Ph-N voltage
Mono Ph – Ph-N voltage

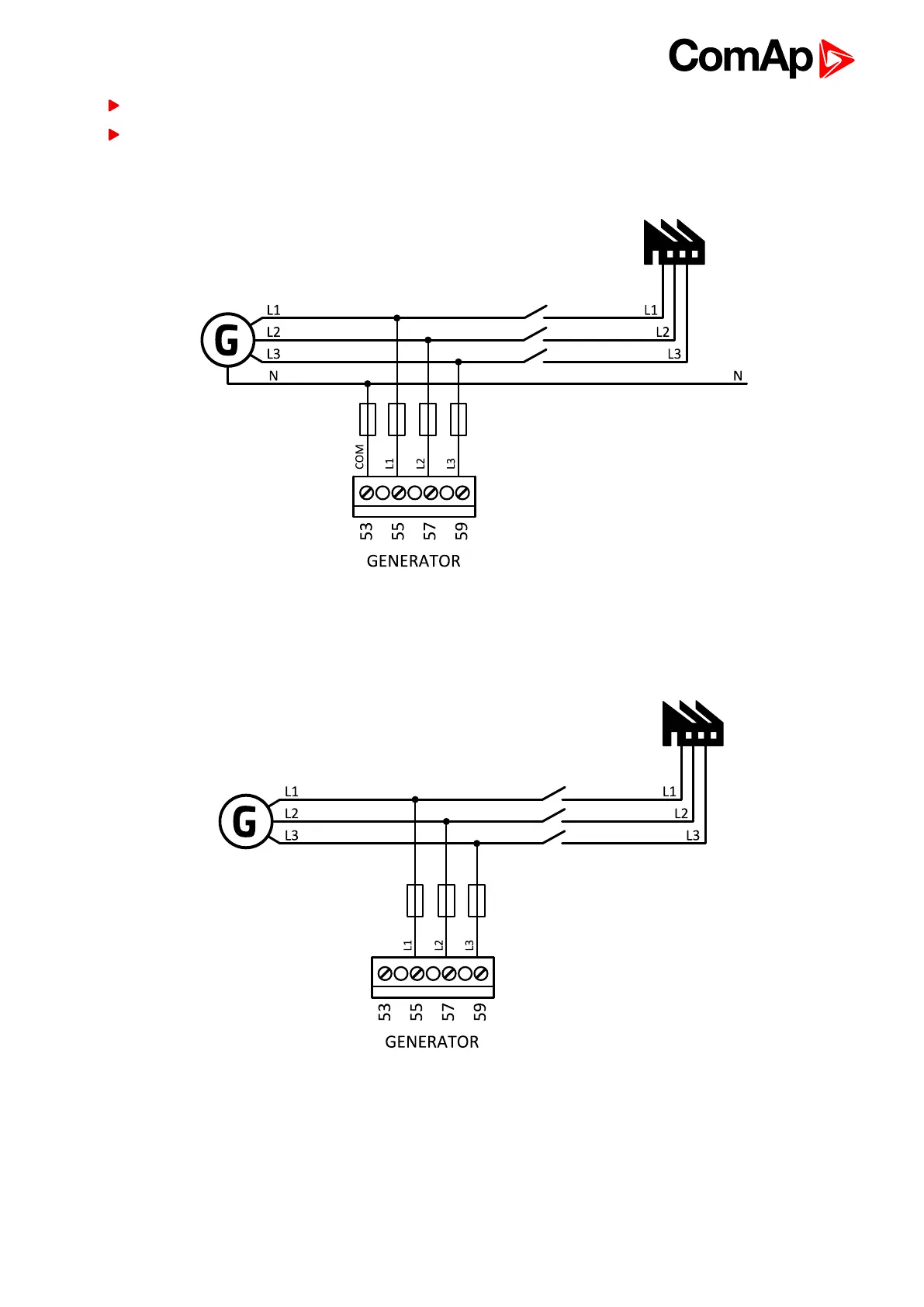

ConnectionType: 3 Phase 4 Wires
Image 4.10 3 phase application with neutral
ConnectionType: 3 Phase 3 Wires
Image 4.11 3 phase application without neutral
