Weekly mode
Set-up via InteliConfig
To set-up timer via InteliConfig go to the setpoint ribbon, setpoint group scheduler and setpoint Timer 1 Setup.
Note: First of all function of timer has to be adjusted via setpoint Timer 1 Function (page 214).

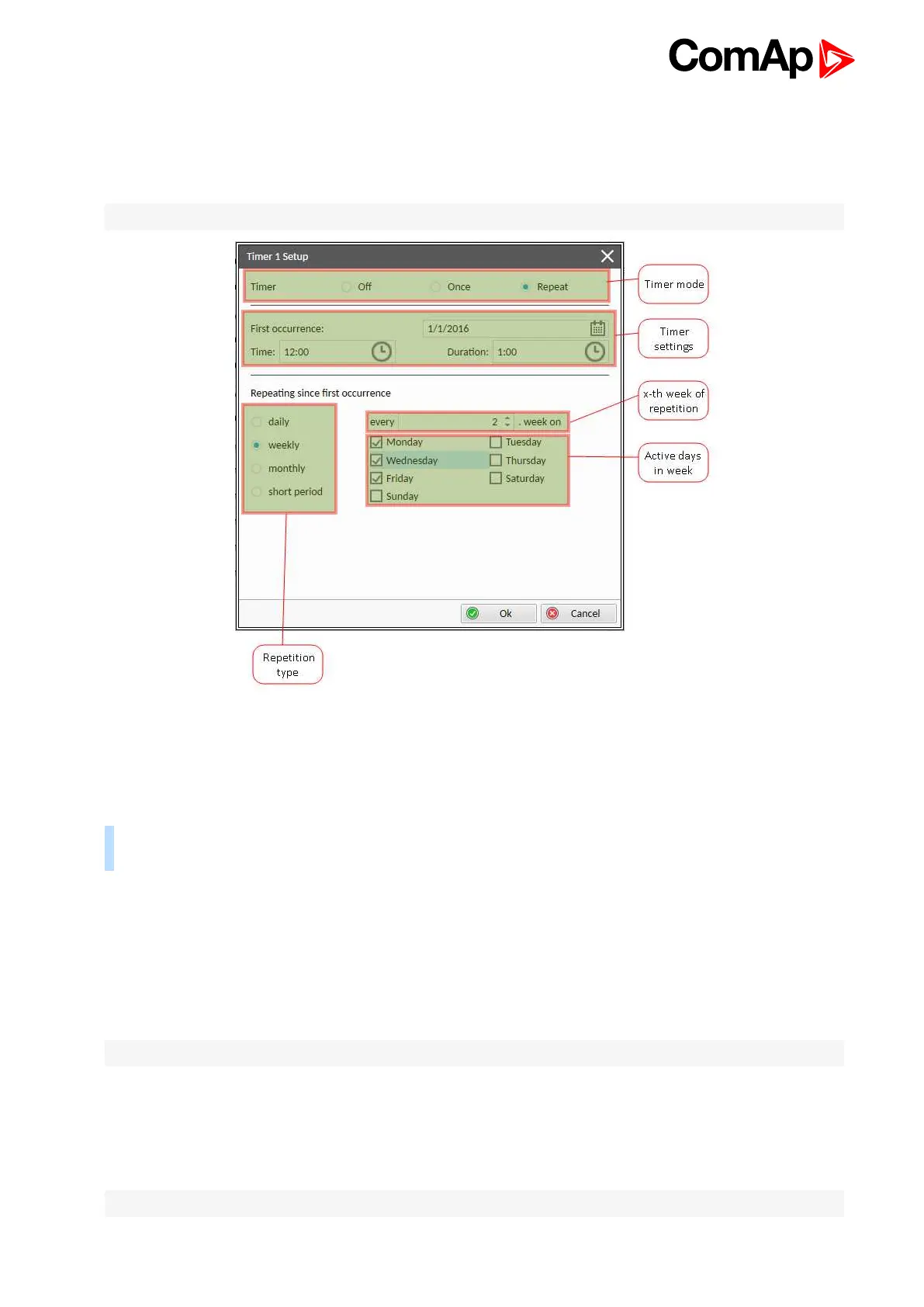

Image 5.22 Weekly mode - InteliConfig
In timer mode select Repeat. In repetition type select Weekly. In timer settings adjust date and time of first
occurrence of timer. Also adjust the duration of each occurrence of timer. Than select the x-th week of repetition
(Timer 1 Refresh Period (page 218)) and days when timer should be active (Timer 1 Day (page 219)).
Example: On image example first start of timer will be 1/1/2016 at 12:00. Duration will be 1 hour. Timer will
be again activated every 2nd week on Monday, Wednesday and Friday at 12:00 for 1 hour.
Set-up via controller interface
In controller go to the Scheduler setpoint group. Select the function of timer via Timer 1 Function (page 214)
setpoint. Than go to Timer 1 Setup and press enter button. In Timer 1 Repetition (page 215) setpoint select
Repeated mode. Than adjust Timer 1 First Occur. Date (page 216), Timer 1 First Occur. Time (page 216) and
Timer 1 Duration (page 216). In setpoint Timer 1 Repeated (page 217) select Weekly and adjust Timer 1 Day
(page 219) (days when timer should be active) and Timer 1 Refresh Period (page 218) (x-th week of repetition).
Note: Use left and right buttons to move between timer setpoints.
Monthly mode
Set-up via InteliConfig
To set-up timer via InteliConfig go to the setpoint ribbon, setpoint group scheduler and setpoint Timer 1 Setup.
Note: First of all function of timer has to be adjusted via setpoint Timer 1 Function (page 214).
