InteliLite 9 Global Guide
30
ConnectionType: Split Phase

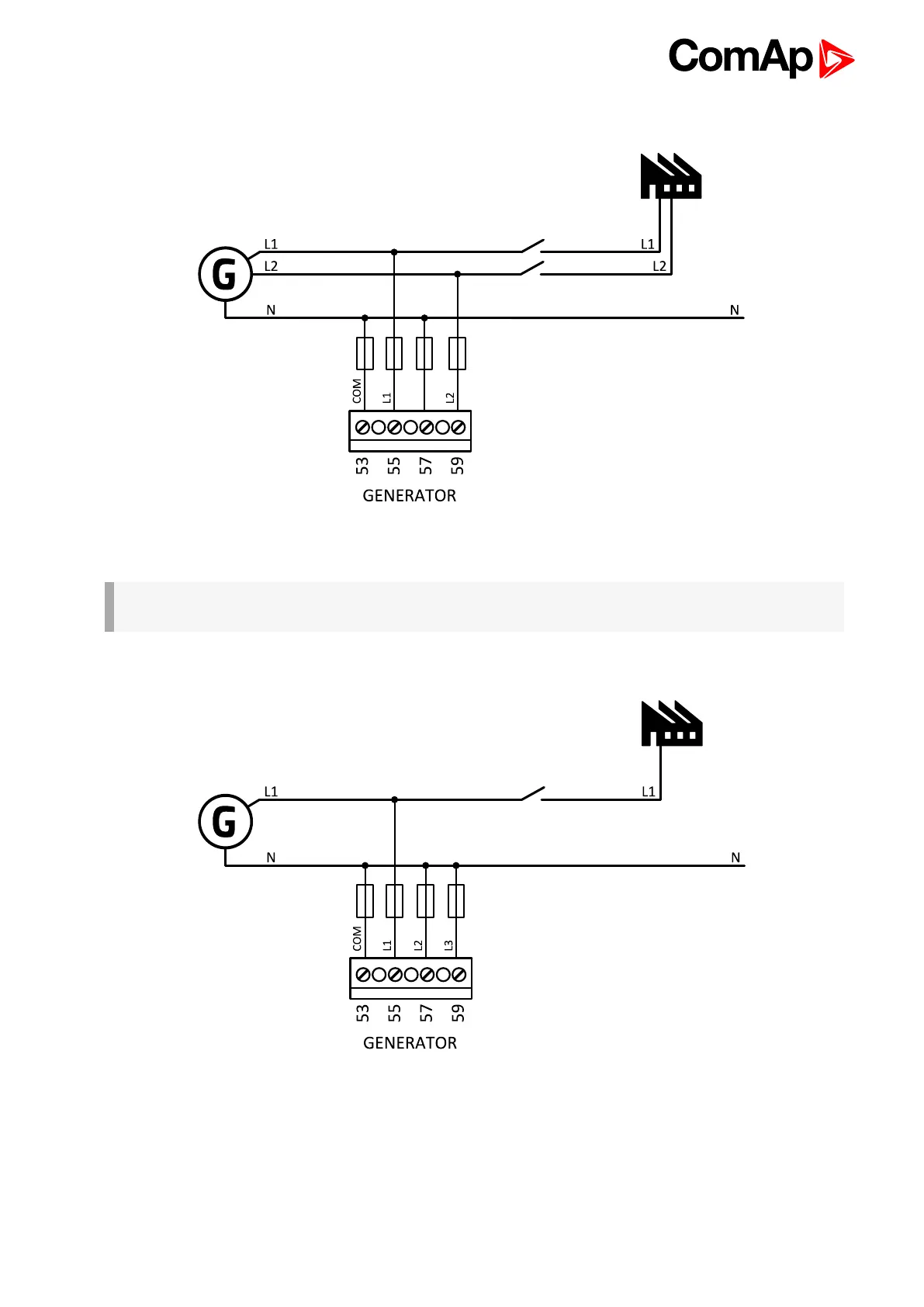

Image 4.12 Split phase application
IMPORTANT: The second phase of split phase connection is connected to the terminal, where is
normally connected the third phase.
ConnectionType: Mono Phase
Image 4.13 Mono phase application
4.4.5 Magnetic pick-up
A magnetic speed sensor (pickup) is the most common method of engine speed measurement. To use this
method, mount the pickup opposite to the engine flywheel, connect the cable to the controller as shown on the
