CM-4G-GPS

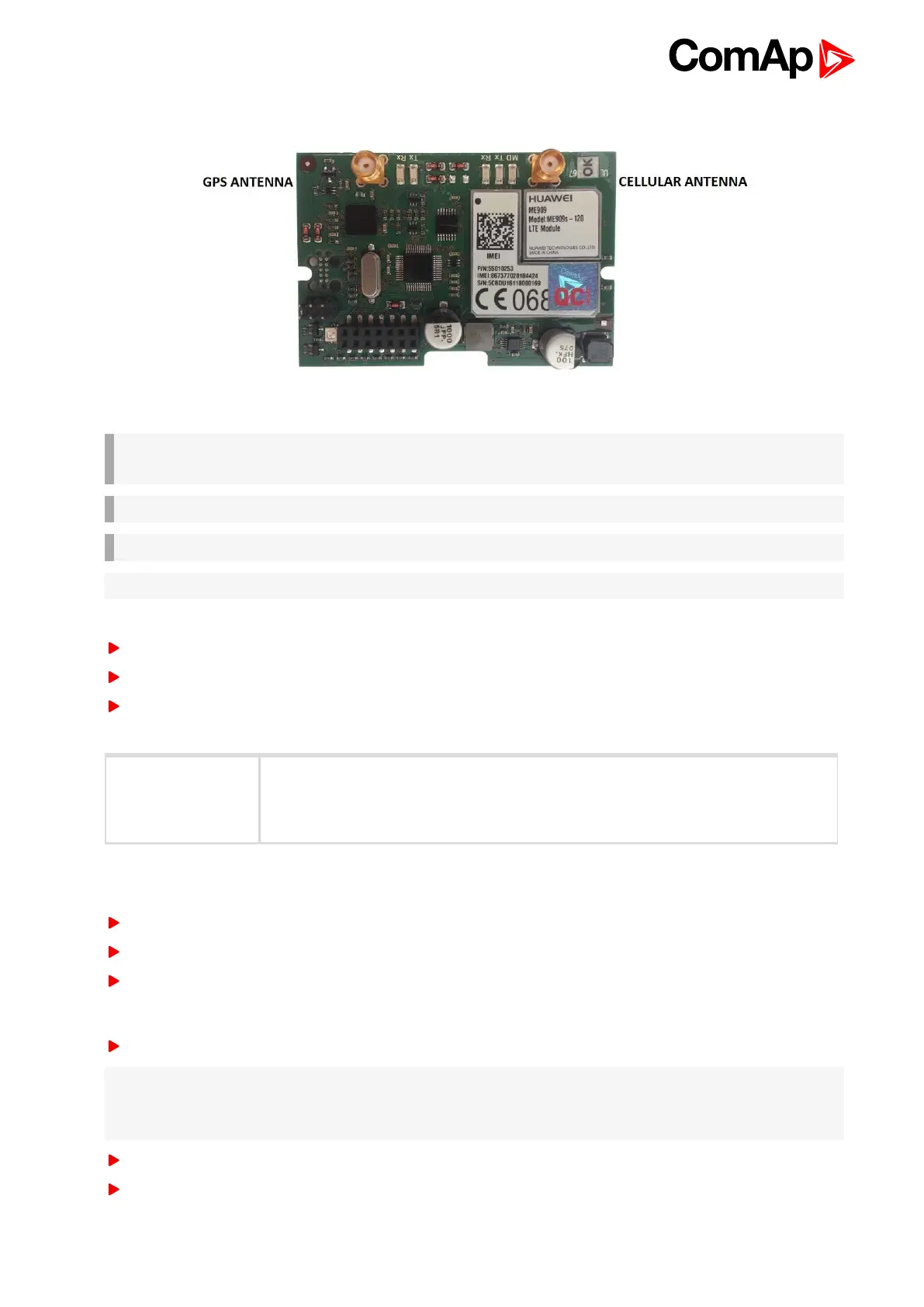

Image 9.10 CM-4G-GPS module
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
IMPORTANT: CM-4G-GPS and CM-GPRS modules cant be used in one controller in the same time.
IMPORTANT: Operating temperature of module is from -30°C to +75°C.
Note: Cellular data service must be enabled in your SIM card by your mobile operator for successful operation.
Supported 4G bands are as follows:
FDD LTE: Band 1, Band 2, Band 3, Band 4, Band 5, Band 7, Band 8, Band 20, all bands with diversity
WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 2, Band 5, Band 8, all bands with diversity
GSM/GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz
Power consumption
55 mA / 8 VDC
35 mA / 12 VDC
8 mA / 24 VDC
5 mA / 36 VDC
Technical data
SIM card settings
SIMcard to be used in CM-4G-GPS or CM-GPRS modules must be adjusted as follows:
SMS service enabled
Packet data (Internet access) enabled (when required for the selected mode of operation)
PIN code security disabled
How to start using CM-4G-GPS module
You will need a controller, CM-4G-GPS module, antenna and SIM card with SMS and packet data service.
Note: Make sure that your SIM supports the packet data network type you want to use. - i.e. if you want to use
the module in LTE (4G) network you have to confirm with the operator that the particular SIM card supports 4G
network.
Make sure SIM card does not require PIN code. Use any mobile phone to switch the SIM PIN security off.
Place the SIM card into slot on CM-4G-GPS card
