InteliLite 9 Global Guide
95
mode. Than adjust Timer 1 First Occur. Date (page 216), Timer 1 First Occur. Time (page 216) and Timer 1
Duration (page 216).
Note: Use left and right buttons to move between timer setpoints.
Daily mode
Set-up via InteliConfig
To set-up timer via InteliConfig go to the setpoint ribbon, setpoint group scheduler and setpoint Timer 1 Setup.
Note: First of all function of timer has to be adjusted via setpoint Timer 1 Function (page 214).

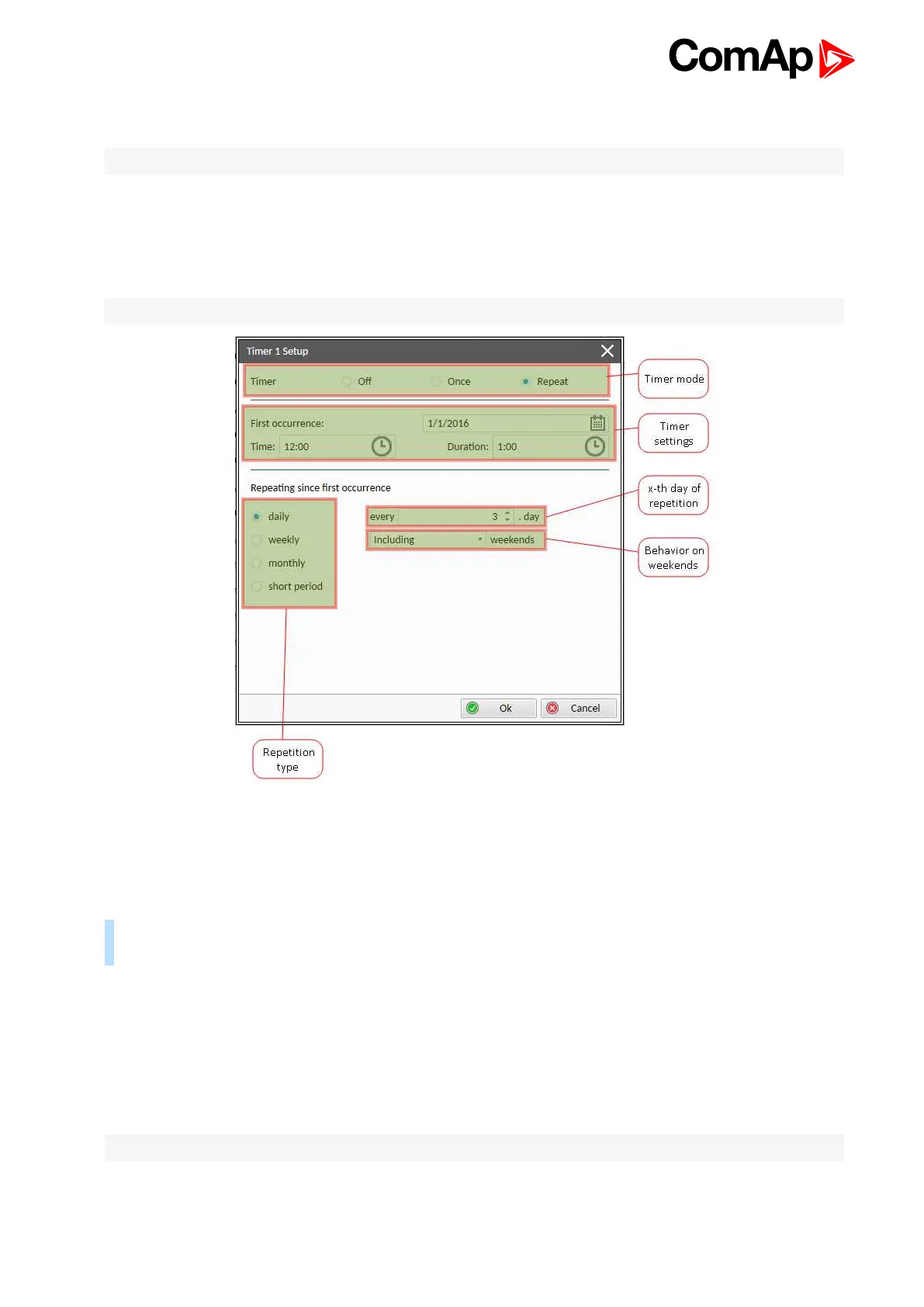

Image 5.21 Daily mode - InteliConfig
In timer mode select Repeat. In repetition type select Daily. In timer settings adjust date and time of first
occurrence of timer. Also adjust the duration of each occurrence of timer. Than select the x-th day of repetition
(Timer 1 Refresh Period (page 218)) and behavior of timer on weekends (Timer 1 Weekends (page 219)).
Example: On image example first start of timer will be 1/1/2016 at 12:00. Duration will be 1 hour. Timer will
be again activated every 3rd day at 12:00 for 1 hour including weekends.
Set-up via controller interface
In controller go to the Scheduler setpoint group. Select the function of timer via Timer 1 Function (page 214)
setpoint. Than go to Timer 1 Setup and press enter button. In Timer 1 Repetition (page 215) setpoint select
Repeated mode. Than adjust Timer 1 First Occur. Date (page 216), Timer 1 First Occur. Time (page 216) and
Timer 1 Duration (page 216). In setpoint Timer 1 Repeated (page 217) select Daily and adjust Timer 1 Refresh
Period (page 218) (x-th day of repetition) and Timer 1 Weekends (page 219) (behavior of timer on weekends).
Note: Use left and right buttons to move between timer setpoints.
