Related FW 1.1.0 Related applications AMF, MRS
Comm object 1253
Description
Output closes when the value of Fuel Level lies under the value of Fuel Pump On (page 164) setpoint and
opens when value of Fuel Pump Off (page 163) is reached.
This output also can be closed by binary input FUEL PUMP ON/OFF (PAGE 306). In this case the binary
output FUEL PUMP ON (PAGE 164) is closed until the binary input FUEL PUMP ON/OFF (PAGE 306) is active
or until the value of Fuel Pump Off (page 163) is reached.
Note: Setpoints Fuel Pump On (page 164) and Fuel Pump Off (page 163) are invisible until configuration of
this LBO.
Fuel Pump
6 back to Logical binary outputs alphabetically
LBO: G
Related FW 1.1.0 Related applications AMF, MRS
Comm object 41
Description
The output controls the generator circuit breaker. Its state represents the breaker position requested by the
controller. The breaker must react within 5 seconds to a close or open command, otherwise an alarm is
issued.
Note: InteliLite 9 controllers can work even without breaker feedbacks, in this case do not configure the
feedback to binary inputs.

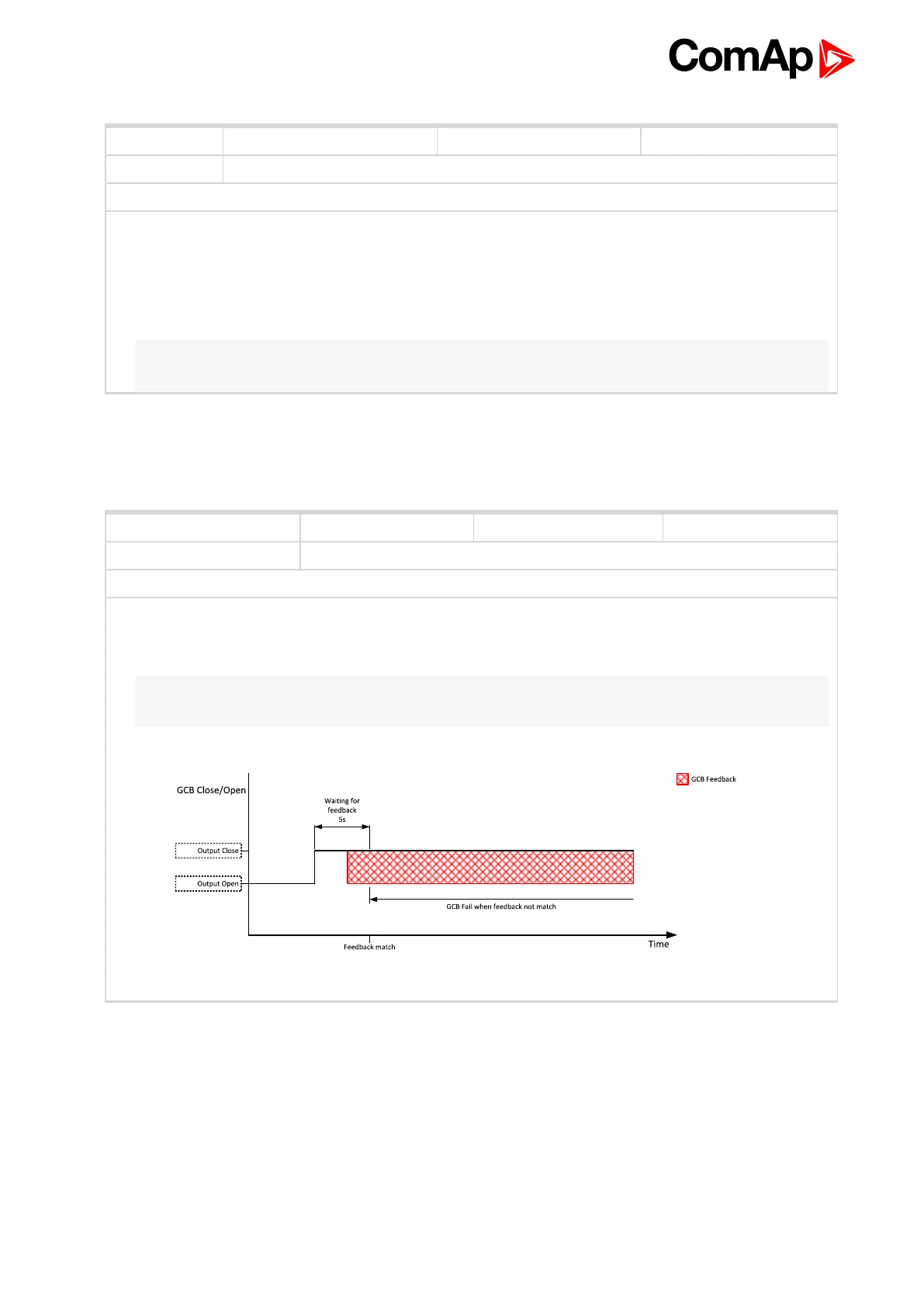

Image 8.27 GCB Close command
GCB Close/Open
