Short period mode
Set-up via InteliConfig
To set-up timer via InteliConfig go to the setpoint ribbon, setpoint group scheduler and setpoint Timer 1 Setup.
Note: First of all function of timer has to be adjusted via setpoint Timer 1 Function (page 214).

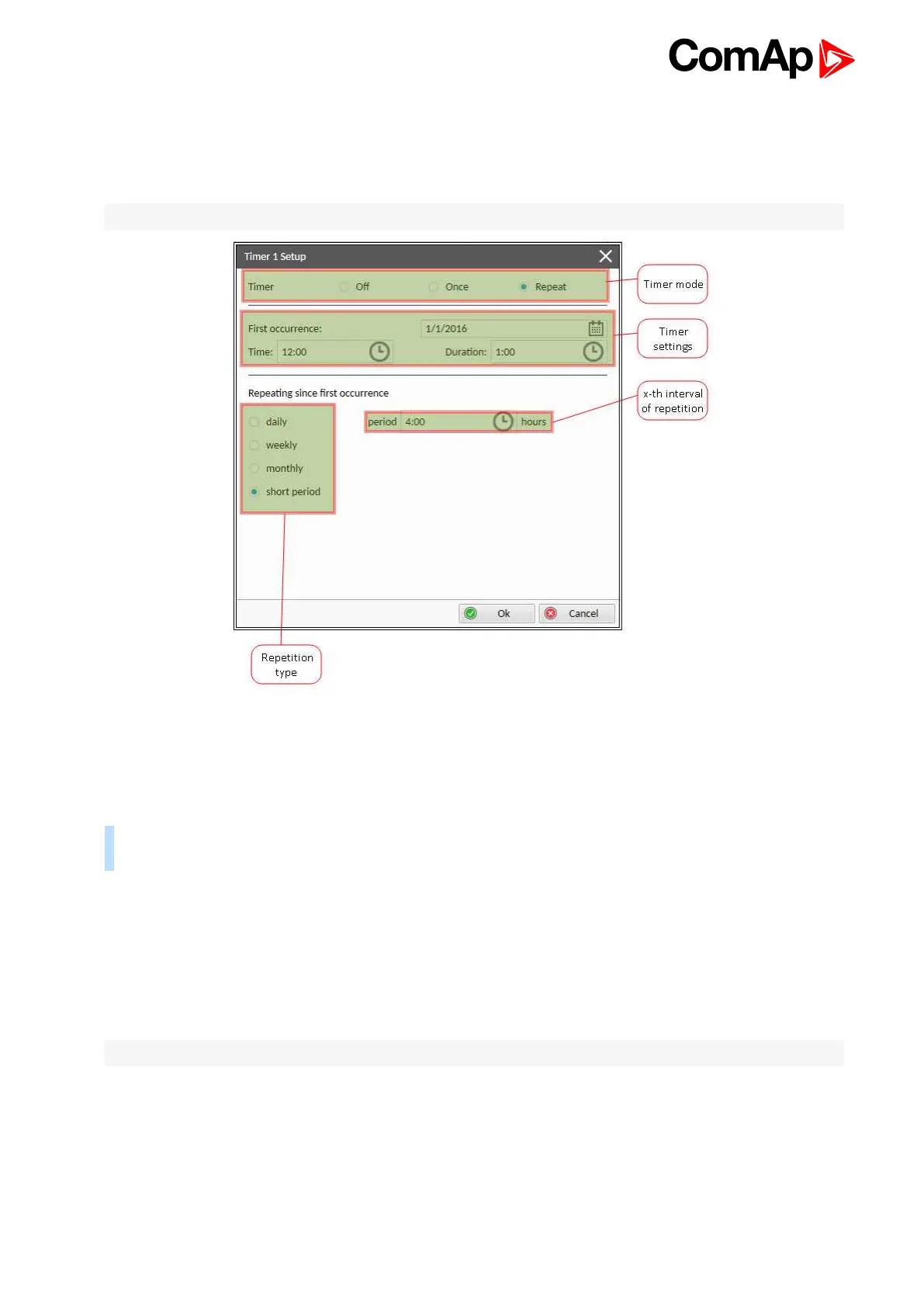

Image 5.25 Short period mode - InteliConfig
In timer mode select Repeat. In repetition type select Short period. In timer settings adjust date and time of first
occurrence of timer. Also adjust the duration of each occurrence of timer. Than select the interval of repetition
(shorter than 1 day).
Example: On image example first start of timer will be 1/1/2016 at 12:00. Duration will be 1 hour. Timer will
be again activated every 4th hour for 1 hour.
Set-up via controller interface
In controller go to the Scheduler setpoint group. Select the function of timer via Timer 1 Function (page 214)
setpoint. Than go to Timer 1 Setup and press enter button. In Timer 1 Repetition (page 215) setpoint select
Repeated mode. Than adjust Timer 1 First Occur. Date (page 216), Timer 1 First Occur. Time (page 216) and
Timer 1 Duration (page 216). In setpoint Timer 1 Repeated (page 217) select Short Period and adjust Timer 1
Refresh Period (page 218) (interval of repetition).
Note: Use left and right buttons to move between timer setpoints.
5.4.14 Service timers
Service timers are used as maintenance interval counters. Counters can be set by setpoints - Maintenance
Timer 1 (page 187), Maintenance Timer 2 (page 187) and Maintenance Timer 3 (page 188). All of them work the
same way - their values are decremented every hour when the gen-set is running.
