InteliLite 9 Global Guide
31

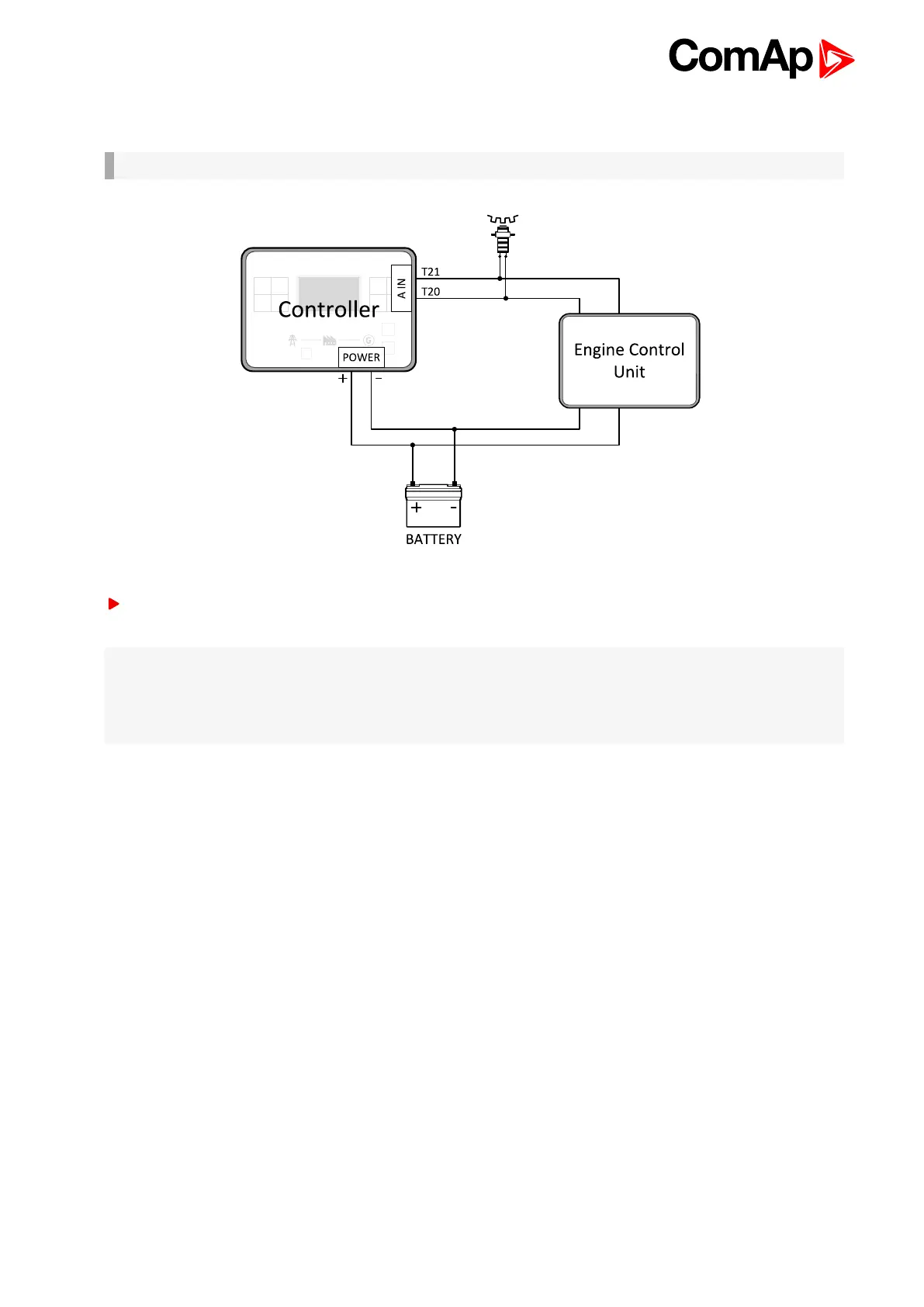

picture below and adjust the setpoint Gear Teeth (page 151) according to the number of teeth on the flywheel.
For the details about the pick-up input parameters see Technical data on page 137
IMPORTANT: To ensure proper function use a shielded cable.
If engine will not start:
Check ground connection from pick-up to controllers, eventually disconnect ground connection to one of
them.
Note: In some cases the controller will measure a RPM value even though the gen-set is not running: RPM is
measured from the generator voltage (Gear Teeth = 0). Controller is measuring some voltage value on input
terminals due to open fusing. If RPM > 0 the controller will be put into a Not ready state and the engine will not
be allowed to start.
