6-4
Upgrading the Computer
Part Number: 262446-002 Writer: Lorise Fazio Saved by: Johnnie Abercrombie
Saved Date: 08/26/96 3:20 PM 12:27 PM File Name: CH6.DOC

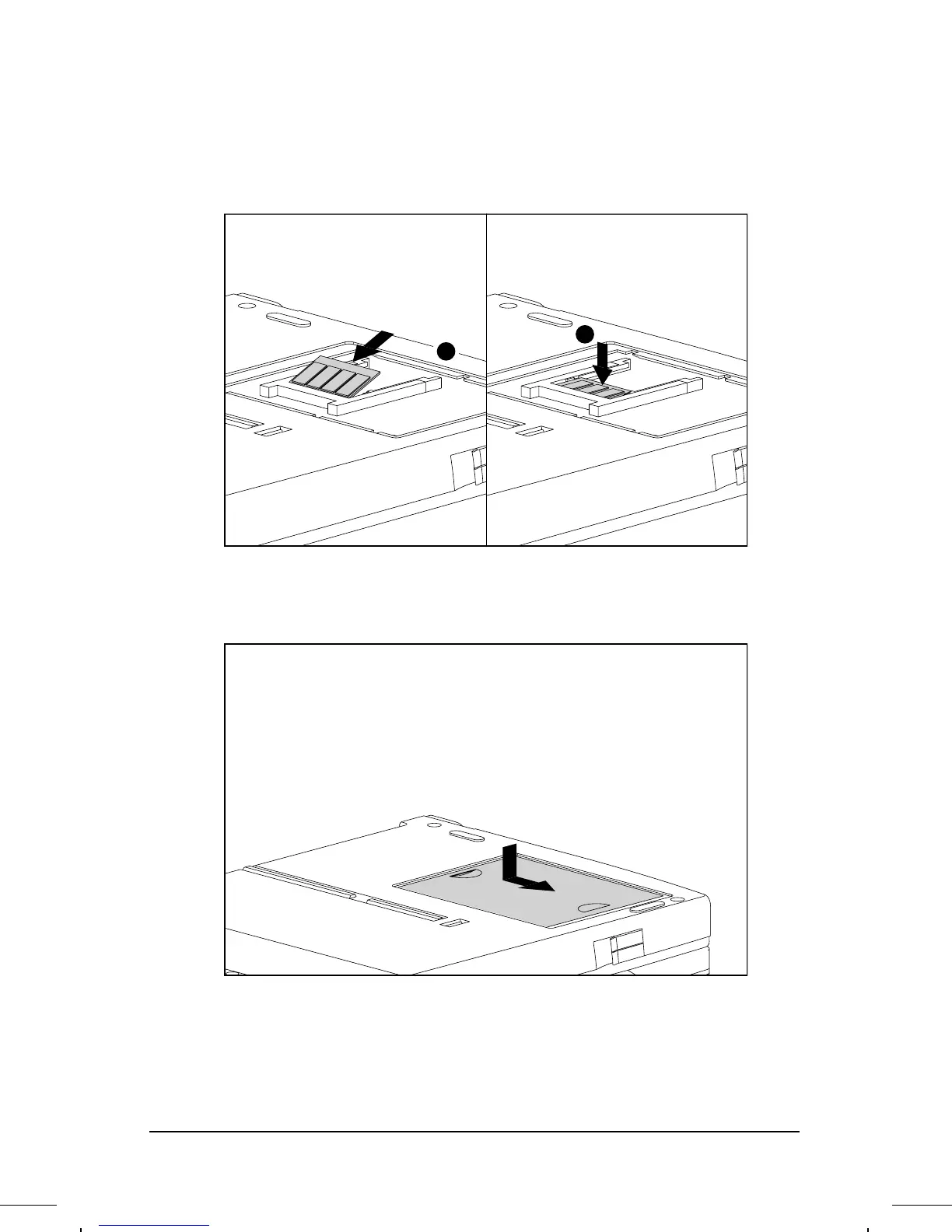

5. Slide the memory boards into the memory slot
n
. The connector
will snap into place when the board is correctly seated
o
.
2
1
Sliding Memory Boards Into Place
6. Replace the memory compartment cover.
Replacing the Memory Compartment Cover
