GEN1000 Operator Manual
10 July 22, 2019 | 287960-ENG | R00
3.1.3 Water Supply
Table 3-1 Water Supply Parameters
0.26 gallons / hour (1 Liter / hour) reverse osmosis
Max. – 115 psi (7.9 bar), Min. – 5 psi (0.3 bar)
< 0.00008 inch (2 microns)
0.01 to 0.02 Megaohm-cm (MΩ-cm)
3.1.4 Condensate Drain
A 3/4″ (19 mm) drain is provided underneath the chamber, located near the back. The drain may
be extended to a nearby floor drain, as required. If there is no floor drain nearby, the optional
condensate pan may be used to collect the condensate and the optional condensate pump may
be used to pump the condensate to the drain.
3.2 Remove the Chamber from the Shipping Pallet
The GEN1000 chamber is designed to be removed from the shipping pallet with a forklift. In
smaller facilities without access to a forklift, the shipping pallet may be ordered with an optional
built-in ramp to unload the chamber.
To remove the chamber from the pallet with a fork lift:
1. Remove the wooden brace and metal shipping bracket (Figure 3-1) from both sides of
the pallet.

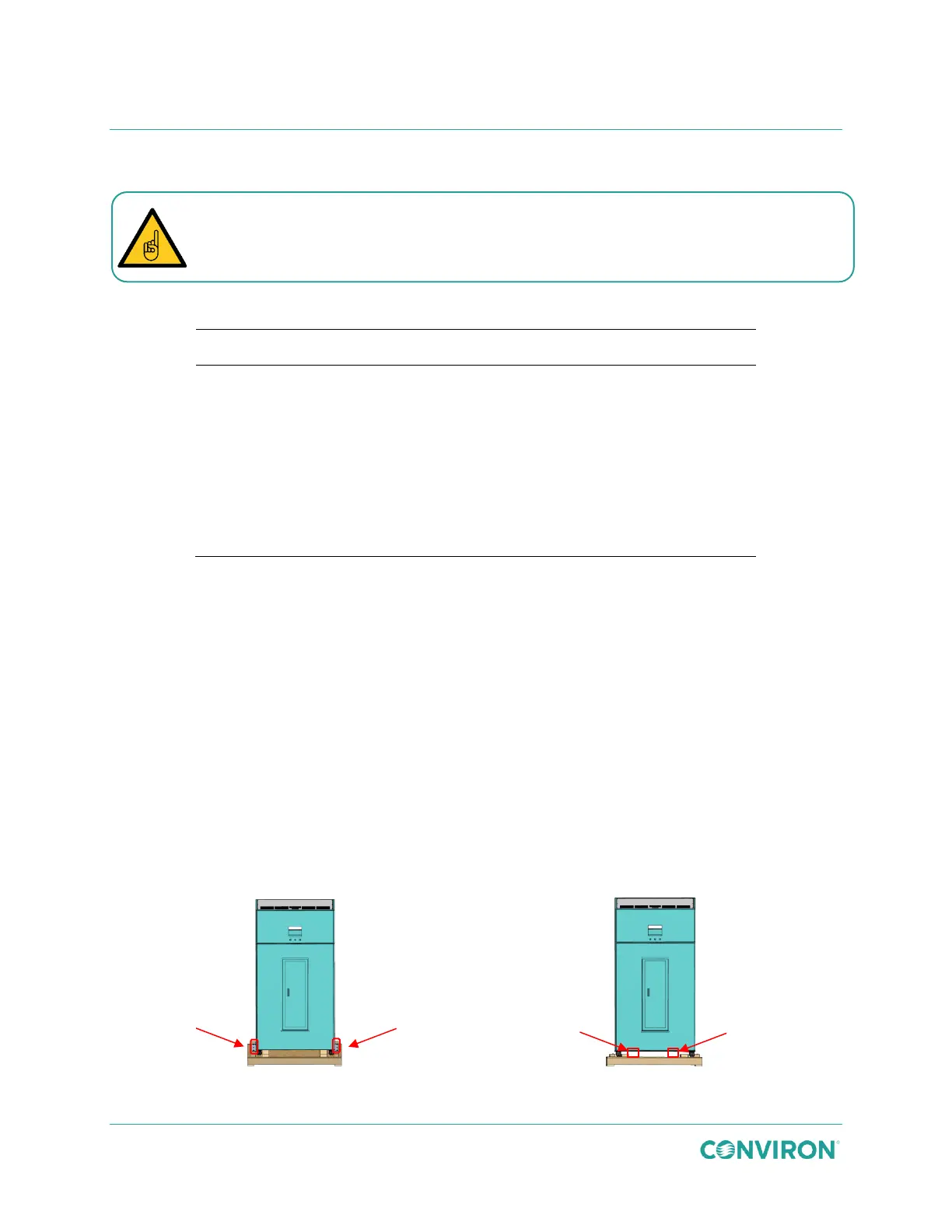

Figure 3-1 Remove the L-Brackets
Figure 3-2 Position the Forks
2. Position the forks of the forklift truck as shown in Figure 3-2.
Failure to use a water source with the quality stated in Table 3-1 will void the product
warranty.
