Installation
July 22, 2019 | 287960-ENG | R00 23

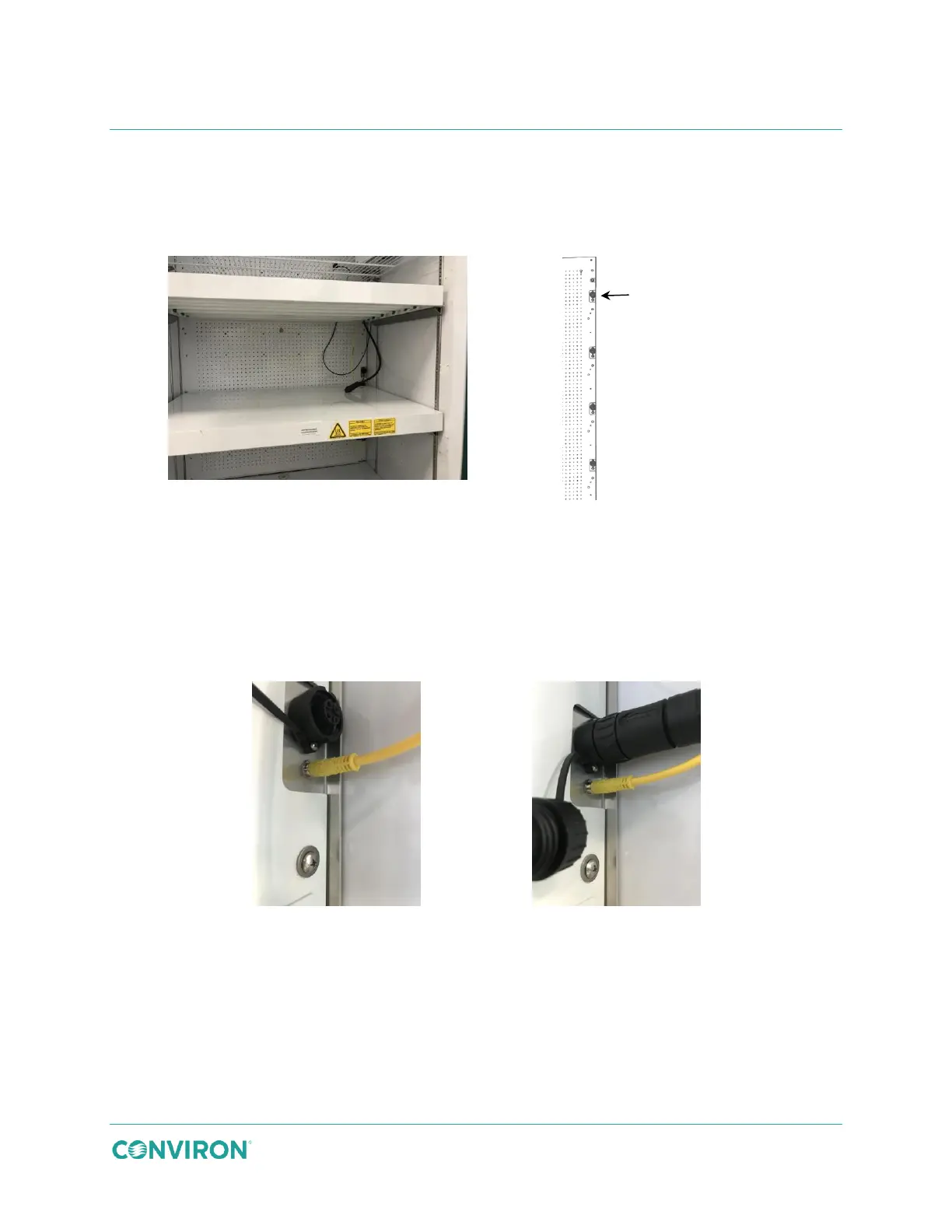

5. Place the canopy onto the canopy support brackets. Ensure the connection cables
are on the right-hand side of the chamber (Figure 3-25).
6. To ensure safe and efficient operation of the canopy, the control and power cables
must be plugged into the correct receptacles, as shown in Figure 3-26.
Figure 3-25 Install the Canopies
Figure 3-26 TA Canopy Connection
7. Plug the yellow canopy control cable into the small receptacle on the right-hand side
of the chamber (Figure 3-27).
8. Unscrew the receptacle protective cover and plug the black canopy power cable plug
into the large receptacle on the right-hand side of the chamber (Figure 3-28).
Figure 3-27 Control Connection
Figure 3-28 Power Connection
Canopy 1
