3.5.2 Adjustable Wire Shelves and Lamp Canopies
Wire shelves are supported by four metal clips attached to the four pilaster strips inside the
chamber (Figure 3-6).
Lamp canopy supports (Figure 3-7) are two long metal brackets attached between the two
pilaster strips on the same side of the chamber. The lamp canopy then simply slides onto the
brackets and is connected to control and power receptacles on the right side of the chamber
interior. Control and power cables are color coded and equipped with unique connector plugs
(Figure 3-7).
Light Canopy Control - Four small receptacles are used to control the lighting fixtures. The
yellow plugs are mated with the receptacles and then pushed firmly together.
Light Canopy Power - Four large receptacles provide power to the lighting fixtures. The black
plugs are mated with the receptacles and then screwed tightly together.

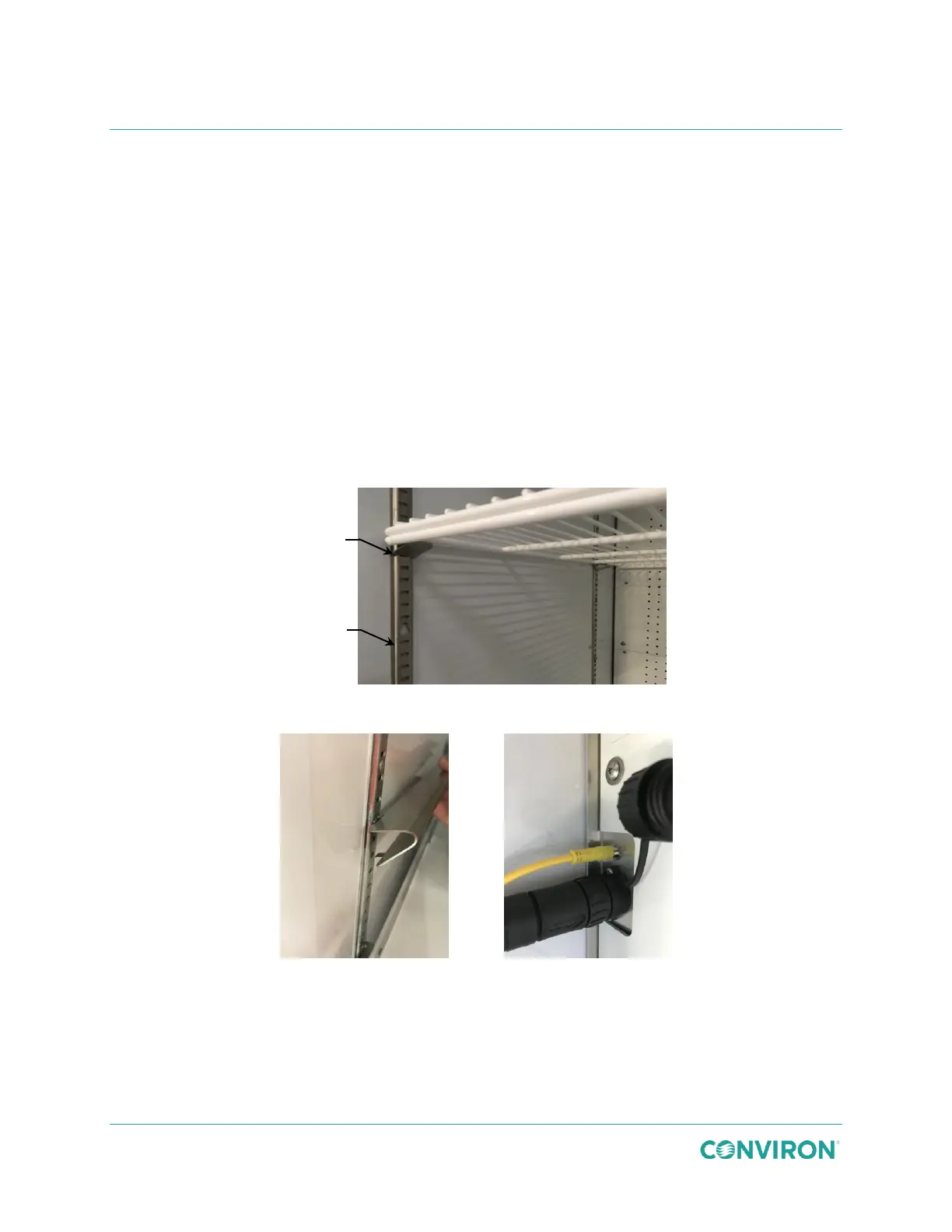

Figure 3-6 Wire Shelf Supports
Figure 3-7 Canopy Supports and Connections
