GEN1000 Operator Manual
30 July 22, 2019 | 287960-ENG | R00
Correct
Incorrect

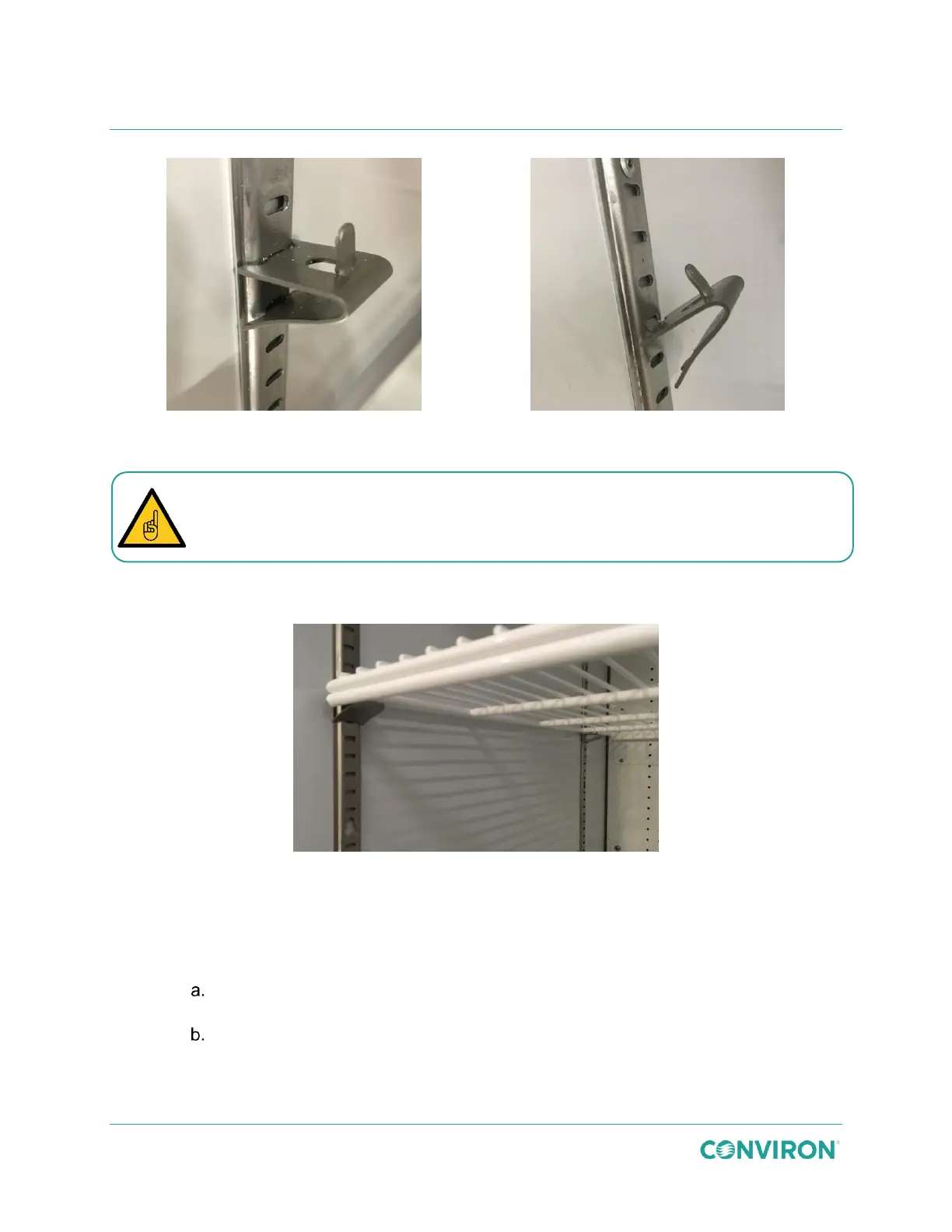

Figure 3-42 Install the Shelf Clips
4. Install a wire shelf on top of the wire shelf clips. Be careful not to scratch the painted
white finish (Figure 3-43).
Figure 3-43 Shelf Installed onto Clips
5. Repeat steps 3 and 4 for the remaining clips and shelves.
6. Install the canopy support brackets (Figure 3-44) for the appropriate number of
canopies to achieve the required growth height.
Insert the angled top tab of the canopy support bracket into the pilaster at the
required level.
Squeeze the bracket to align the bottom straight tab with the slot in the pilaster.
Ensure the clips are firmly seated into the slots in the pilaster before installing the wire
shelf. Incorrectly installed shelf clips could cause the shelf to collapse.
