GEN1000 Operator Manual
18 July 22, 2019 | 287960-ENG | R00

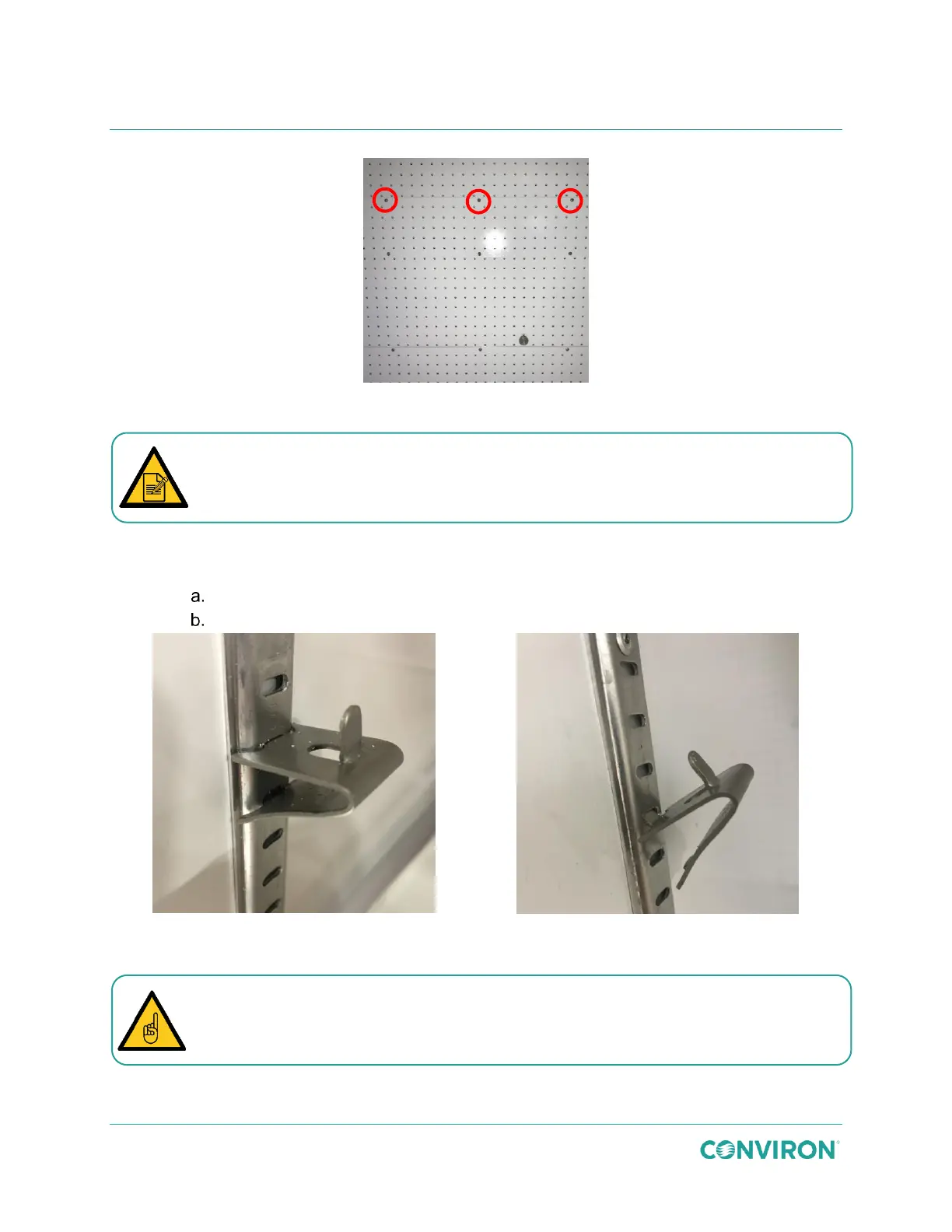

Figure 3-13 Cover Plate Screw Detail
3. Starting at the bottom of the chamber, install the shelf-clips (Figure 3-14) for the
appropriate number of shelves and to achieve the required growth height.
Insert the angled top tab of the shelf-clip into the pilaster at the required level.
Squeeze the clip to align the bottom straight tab with the slot in the pilaster.
Figure 3-14 Install the Shelf Clips
To create equidistant growth height on each tier, ensure that the distance from the
shelf to the underside of the canopy is 20″(51cm) for two tiers and 13″(33cm) for three
tiers.
Ensure the clips are firmly seated into the slots in the pilaster before installing the wire
shelf. Incorrectly installed shelf clips could cause the shelf to collapse.
