Installation
July 22, 2019 | 287960-ENG | R00 29

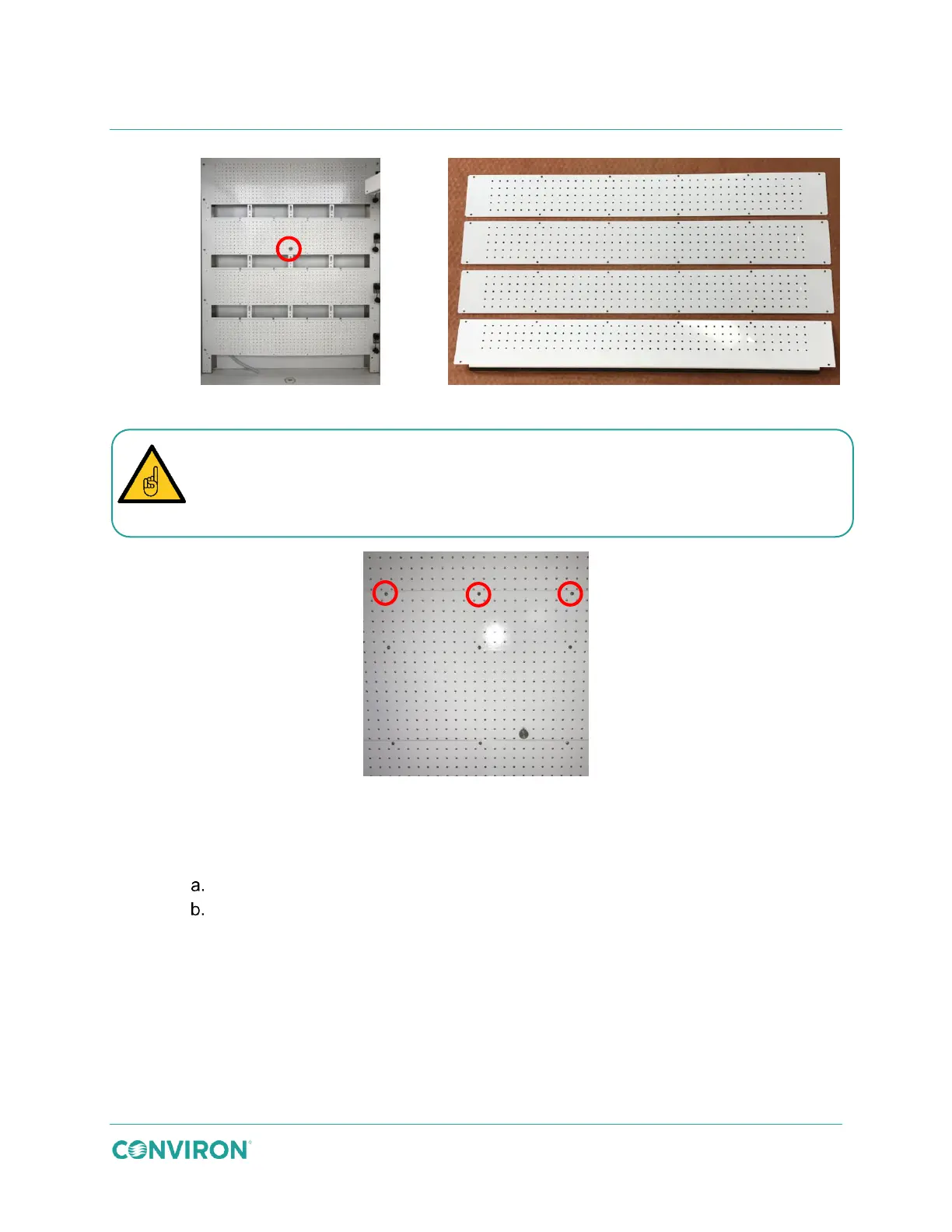

Figure 3-39 Open Plenum
Figure 3-40 Perforated Cover Plates
Figure 3-41 Cover Plate Screw Detail
3. Starting at the bottom of the chamber, install the shelf clips (Figure 3-42) for the
appropriate number of shelves to achieve the required growth height.
Insert the angled top tab of the shelf clip into the pilaster at the required level.
Squeeze the clip to align the bottom straight tab with the slot in the pilaster.
The cover plates are not all interchangeable. The three flat plates, shown at the top of
Figure 3-40 must be installed over the top three openings. The cover plate with the
flange and the gasket, shown at the bottom of Figure 3-40 must be installed over the
bottom opening.
`
