Copystar CS-3035 - Page 332

2FD/2FF/2FG
2-4-2

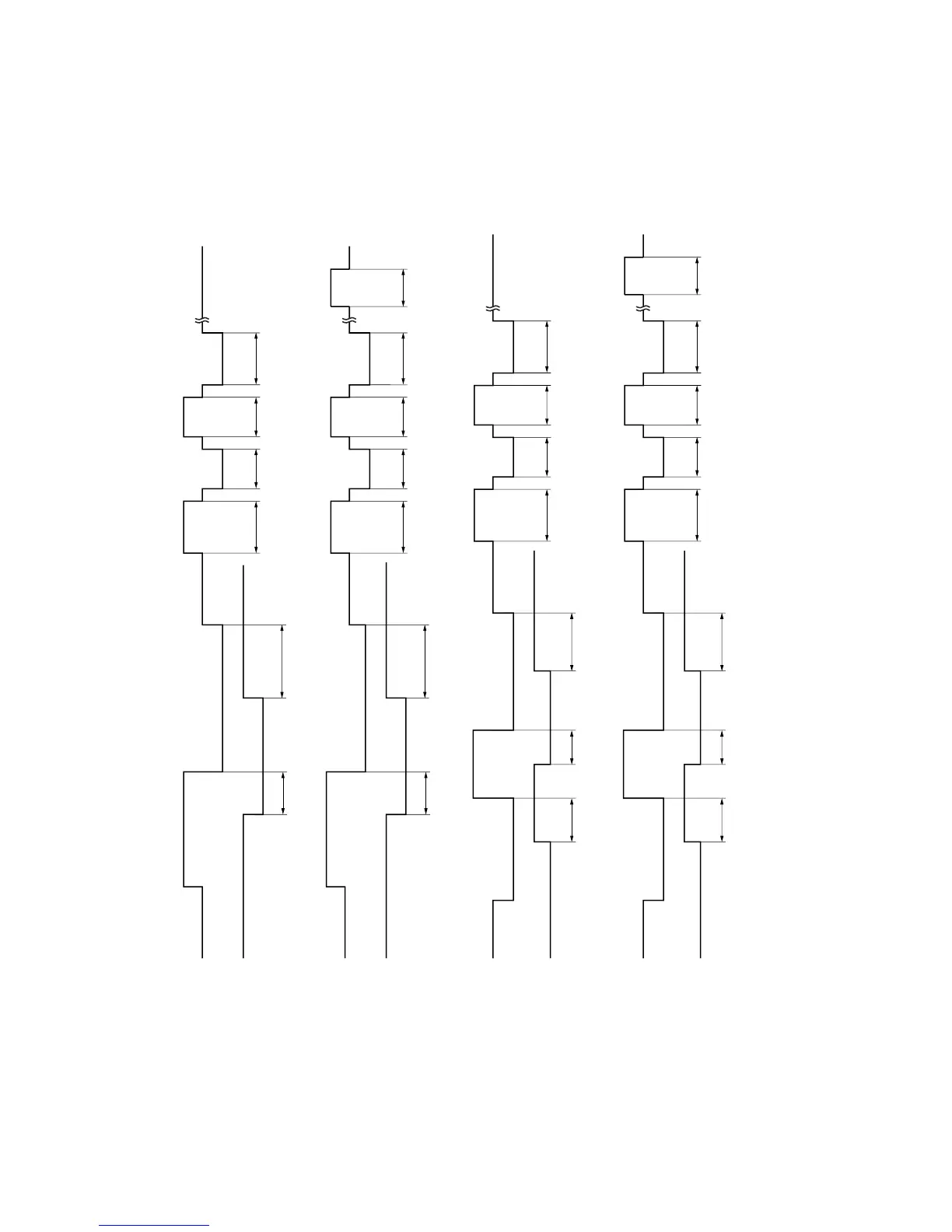

Timing chart No. 2 Scanner initialization
200 P
SM Off
Fwd. rotation
Scanner initialization (SHPSW: ON, ODSW: ON)
Rev. rotation
YC37-8,9,10
11,12
SHPSW YC37-2
SM Off
Fwd. rotation
Scanner initialization (SHPSW: OFF, ODSW: OFF)
Rev. rotation
YC37-8,9,10
11,12
SHPSW YC37-2
114 P
200 P
200 P 114 P
200 P
SM Off
Fwd. rotation
Scanner initialization (SHPSW: ON, ODSW: OFF)
Rev. rotation
YC37-8,9,10
11,12
SHPSW YC37-2
114 P
SM Off
Fwd. rotation
Scanner initialization (SHPSW: OFF, ODSW: ON)
Rev. rotation
YC37-8,9,10
11,12
SHPSW YC37-2
200 P
200 P 114 P
1418 P
944 P
944 P
1418 P
1418 P
944 P
824 P
944 P
1418 P
1418 P
944 P
944 P
1418 P
1418 P
944 P
824 P944 P
1418 P
