Artiglio Master Code User Manual 65
UK

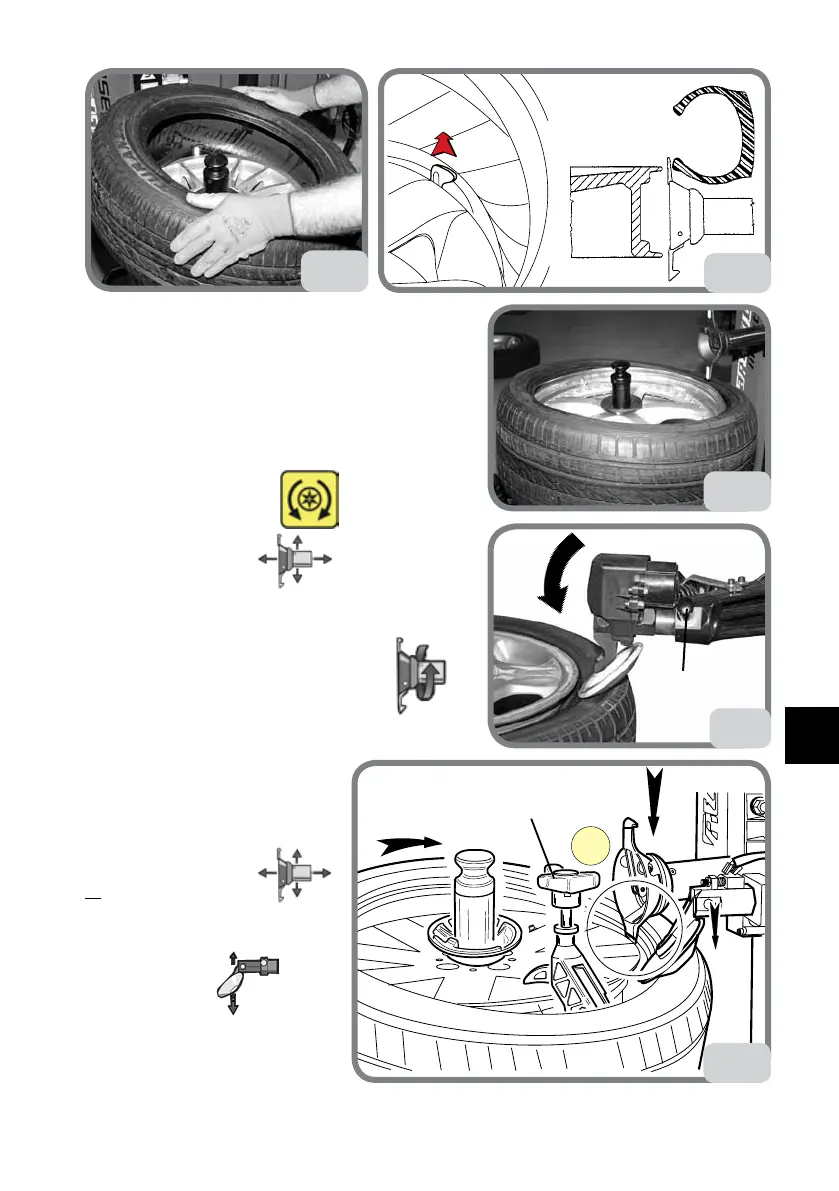

height for assembling the first bead, (Fig. 41b), and
manually work the tyre so that the upper shoulder
of the rim bypasses the lower bead and goes into
the rim well (Figs. 41a -41b).
4- Maintain a light pressure on the tyre section
with the lower bead not yet inserted in the rim
and rotate the turntable
.
5- Operate the lever
to move the tool
head to the upper work area, to mount the up-
per bead.
6- During movement, press the button
to
configure the fixed tool or the upper bead mount-
ing stage (Fig. 41c).
7- Operate knob P (Fig. 41d) to
manually lower the upper bead
breaker disc.
8-
Operate the lever
lowering the tool and manually
positioning the tyre (Fig. 41e).
9- Push the tyre
below
the level of the shoulder (Fig.
41e).
41b
41a
1
41e
A
41c
41d
P
