PBD175 (Spire 3.0) Service Manual
Publication Number: 620062609SER - 4 - ©2015-2016, Cornelius Inc.
PREPARING THE COUNTER
In order to place the PBD175 (Spire 3.0) unit on a counter, the counter must be prepared by cutting an opening in the
counter to accommodate the syrup lines and power cord connection to the unit.
Marking and Cutting the Counter

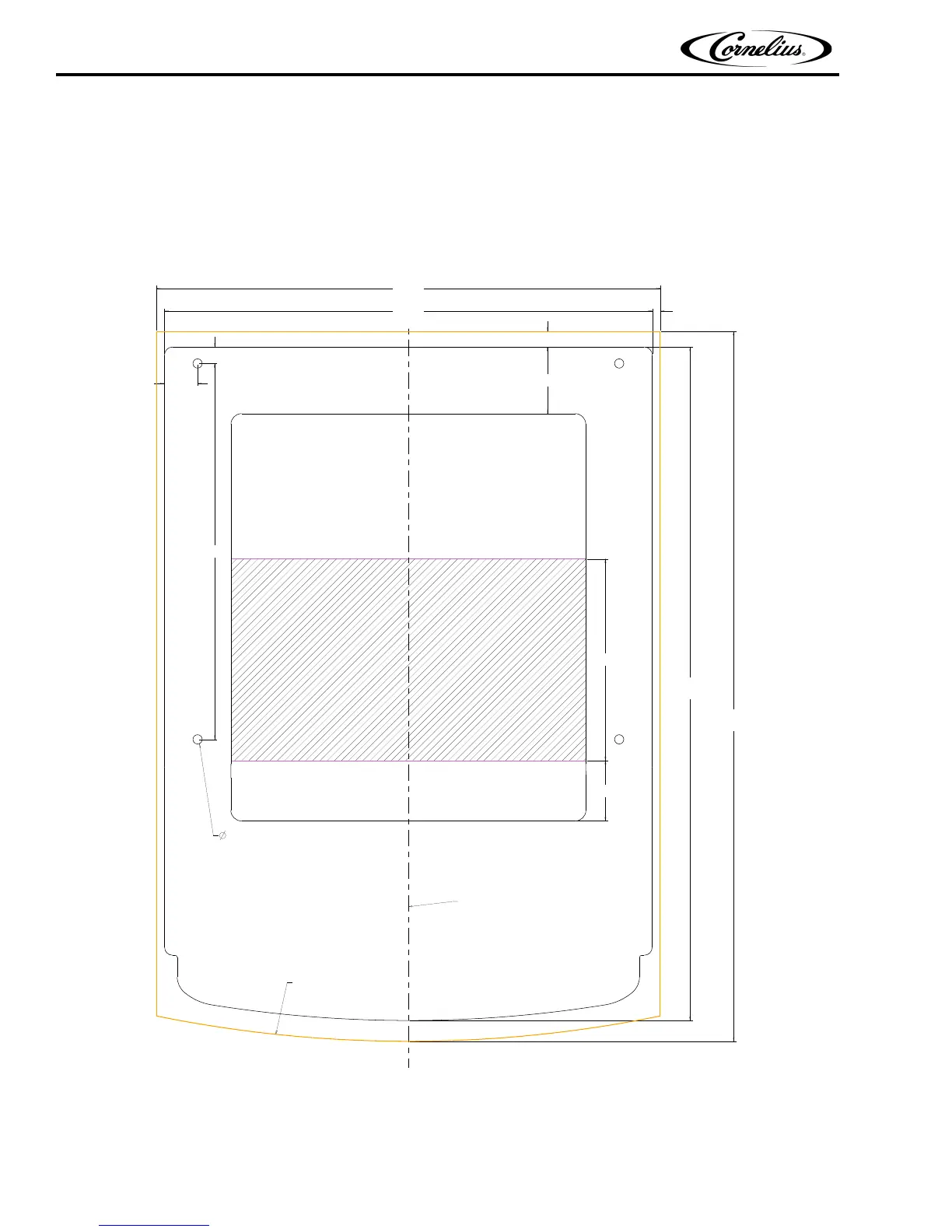

To mark and cut the counter, refer to Figure 1.
Figure 1.
24.20
BASE PLATE
24.98
CLADDING
.82
1.64
3.00
3.30
.77
.39
35.21
CLADDING
33.41
BASE PLATE
18.64
10.000
CENTER LINE
CLADDING OUTLINE
1/2"
4 OUTER MOUNTING HOLES
PREFERRED CUTOUT
7" X 17.60"
NOTES:
-ALL DIMENSIONS ARE IN INCHES
-ALLOW FOR OPEN DOOR CLEARANCE
OF 5.5" TO THE LEFT OF THE UNIT
DATED: 8/6/2015
