PBD175 (Spire 3.0)) Service Manual
© 2015-2016, Cornelius Inc. - 9 - Publication Number: 620062609SER

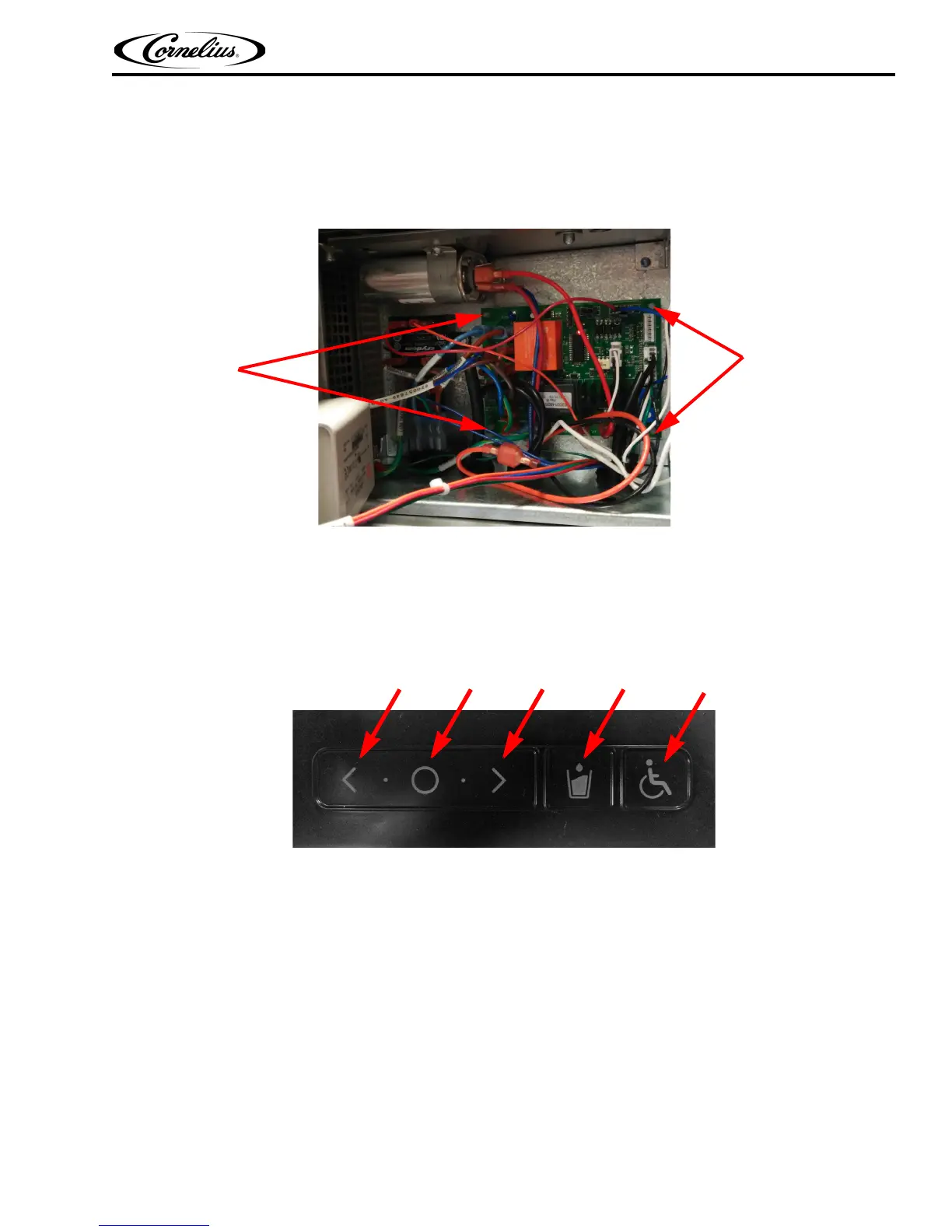

Agitator/Carbonator Control Board
The Agitator/Carbonator Control Board is located behind the 30 VDC and 12/24VDC power supplies. It supplies
function to the agitator motor, carb pump motor, off-cycle agitation settings, agitator motor heater, ice dispense
switch and safety switches. It receives both 24V and 115V input voltage.
Figure 9.
ADA Console
DispenseRightLeft Select
ADA Activation Button
The ADA console controls the display screen and acts like a mouse to navigate the front panel display menu. The
ADA console sends its output to the computer through a USB interface. It is located at the bottom, right side of unit
front, as shown Figure 10.
Figure 10.
