PBD175 (Spire 3.0) Service Manual
© 2015-2016, Cornelius Inc. - 43 - Publication Number: 620062609SER
Replacing the Agitator Motor
10. Swing the power supply panel up and install the two screws holding the panel.
11. Reconnect the power cord in the wall receptacle and resume normal operation.
1. Unplug from power and allow several minutes for gearbox heater to cool.
2. Remove the 4 screws with a 1/4” socket to separate
the agitator motor from the gear box.

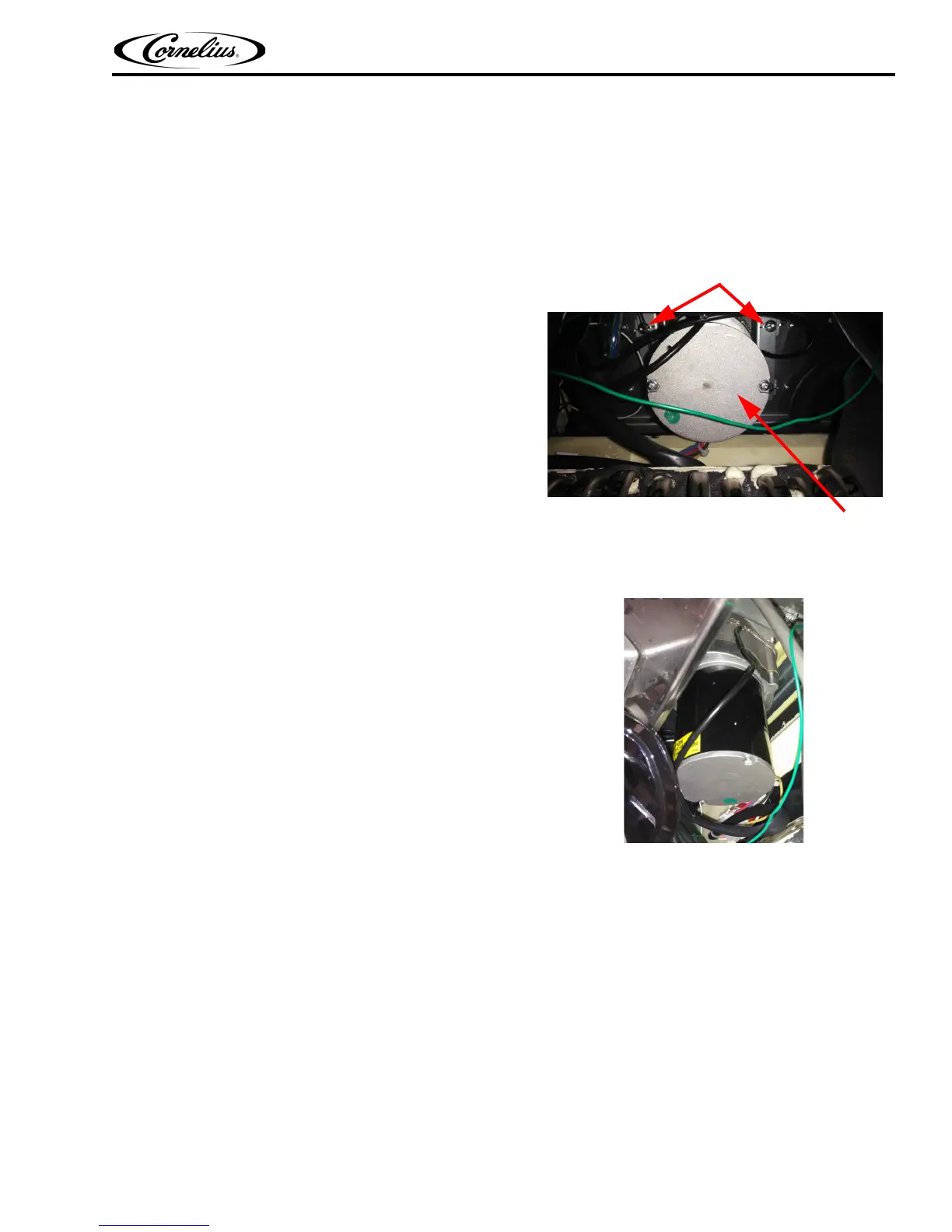

Figure 87.
3. Remove the agitator motor.
Figure 88.
4. Install the new agitator motor and replace the
screws removed in step 1 with a 1/4” socket.
