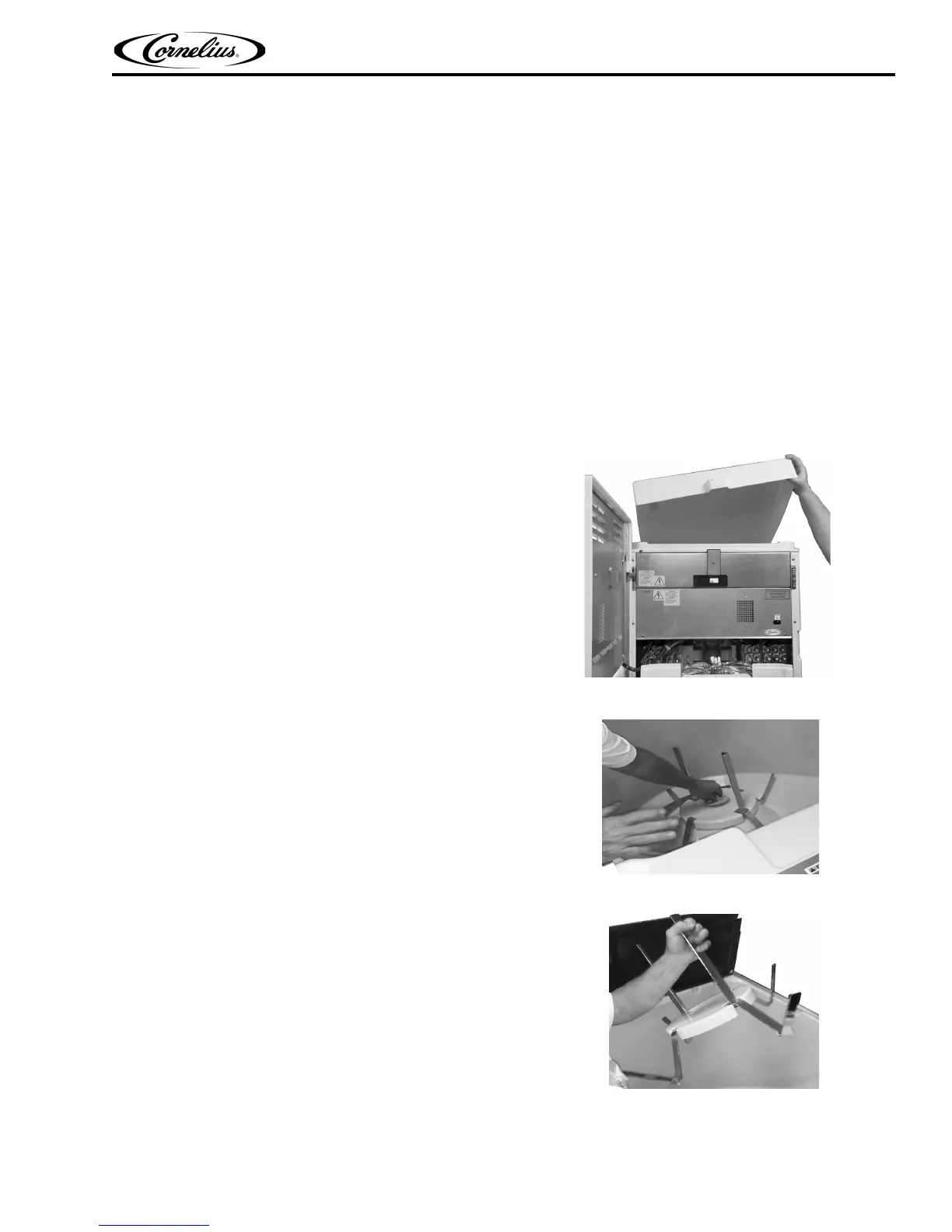

© 2015-2016, Cornelius Inc. - 41 - Publication Number: 620062609SER
Replacing the Ice Bin Agitator
If the ice bin agitator is damaged, perform the procedure below to replace it.
NOTE: Sanitize after replacement is complete.
9. Disconnect the lead from the damaged probe and unscrew the probe.
10. Screw in the new sensor and reconnect the connector.Probe connector goes only in one way.
11. Need to reconnect the drain to enclave.
12. Reconnect the backsplash and the ice slide.
13. Reconnect the power cord in the wall receptacle and resume normal operation.Refer to startup procedure
to fill and purge tank.
1. Shut down the unit using the service menu on the display.
2. Unplug the power cord from the wall receptacle.
3. Open the door.
4. Remove the ice bin cover.
Figure 81.
5. Loosen the agitator thumbscrew and remove the
agitator assembly.
Figure 82.
6. Replace the agitator assembly and tighten the
agitator thumbscrew. Make sure the thumbscrew is
tight.
Figure 83.
7. Reassemble the front and top of the ice bin.
8. Replace the ice bin cover.
