PBD175 (Spire 3.0) Service Manual
Publication Number: 620062609SER - 36 - © 2015-2016, Cornelius Inc.
ENCLAVE RE-INSTALL WORK INSTRUCTIONS
This document is to aid in Spire 3.0 Enclave removal and re-installation. Procedures not covered in this document can
be found in Spire 3.0 Operators or Service manuals. Only trained and certified technicians familiar with the Spire
family of Dispensers should service this unit.
Before removing the enclave, ensure the unit is of correct fit and operation while opening and closing the door. Note
any abnormalities that may affect door operation. Verify and service any parts that may affect door closure first before
attempting this procedure.

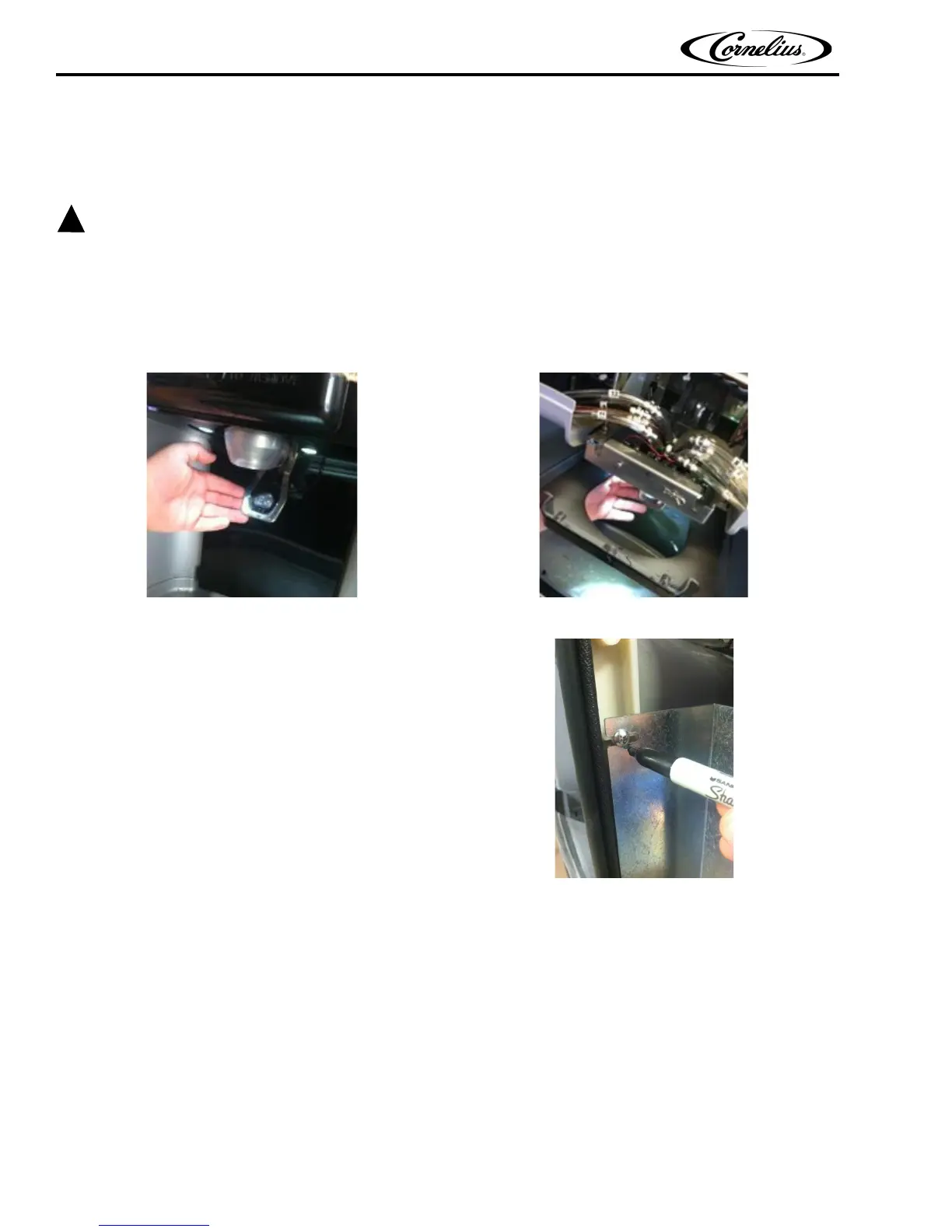

1. Open the Door, remove the Ice Slide and Splash Panel by disengaging the magnetic contact with the
static panel mounting bracket, by pulling the ice lever forward. Carefully remove Splash Panel.
Figure 63. Figure 64.
9. Mark location of Enclave screws as shown in
Figure 65 to help reference re-installation and
proper Enclave placement.
Figure 65.
10. Loosen the Enclave screws QTY (4), (2) each side using a screw driver, carefully remove the enclave and
set it aside.
