PBD175 (Spire 3.0) Service Manual
© 2015-2016, Cornelius Inc. - 37 - Publication Number: 620062609SER

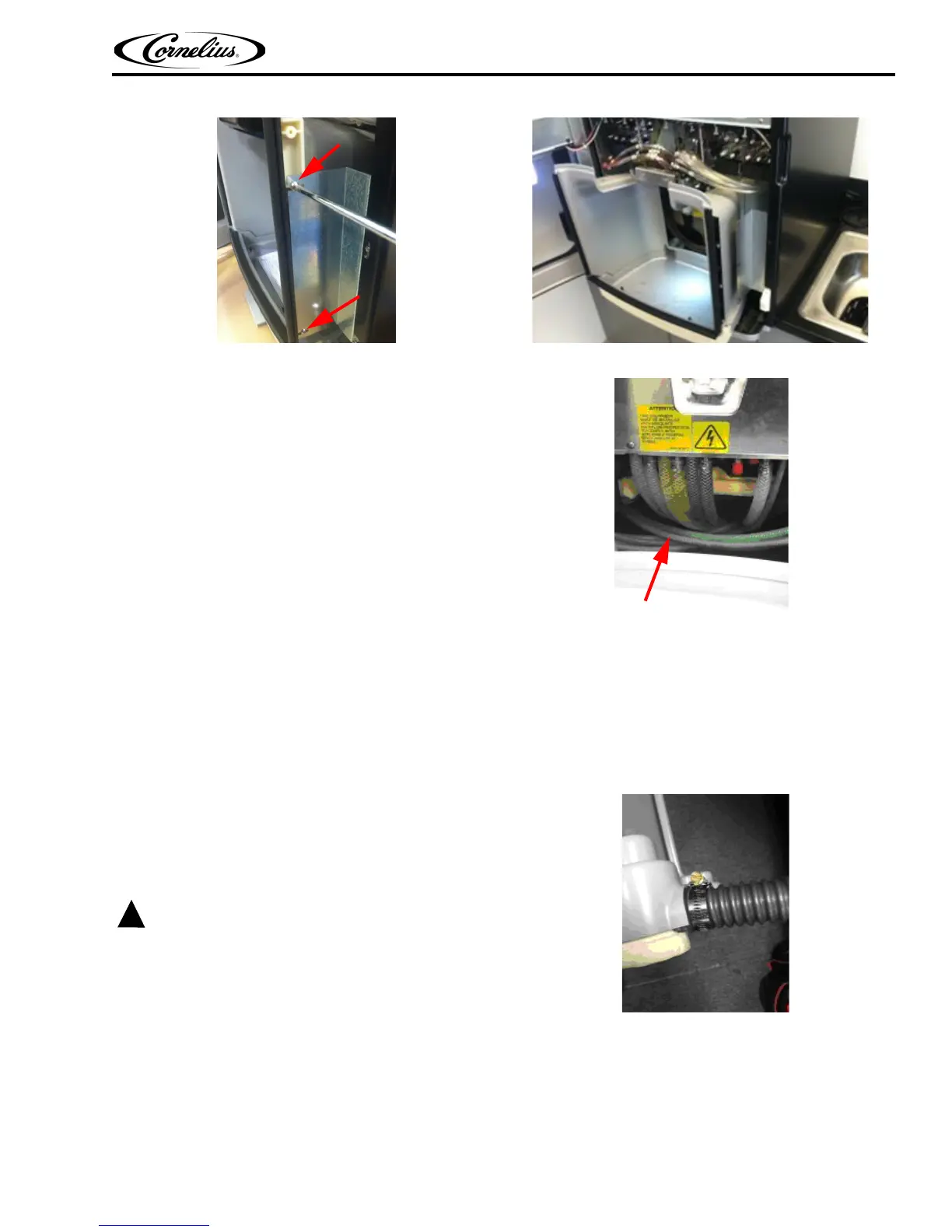

Figure 66. Figure 67.
11. Once the connections are complete, stow the
lines towards the back of the unit. Be sure to
dress the lines in a clean manner taking notice
of where lines should run to not interfere with
the enclave when installed.
Figure 68.
12. Install drip tray drain tube on enclave as shown
in Figure 69.
Do not overtighten clamp (Tighten to approx. 16 in/Lbs
torque max).Make sure drain tube is fully insulated to
prevent condensation.
Figure 69.
13. Carefully Install the Enclave by sliding it back till the screws match with the marked location on the side of
the enclave bracket (approx center of the slot). Make sure plumbing lines and drain tube are not in the
way, providing resistance on Enclave. If so, re-arrange plumbing and drains lines accordingly.
• Make sure main drain line is pitched properly per local, city or state codes.
• Make sure cold plate drain funnels are firmly installed in enclave holes and are in a vertical position.
be routed to allow enclave installation
an easy path.
This is an example of POOR installation.
Beverage lines, cords and drain lines should
