PBD175 (Spire 3.0) Service Manual
Publication Number: 620062609SER - 18 - ©2015-2016, Cornelius Inc.

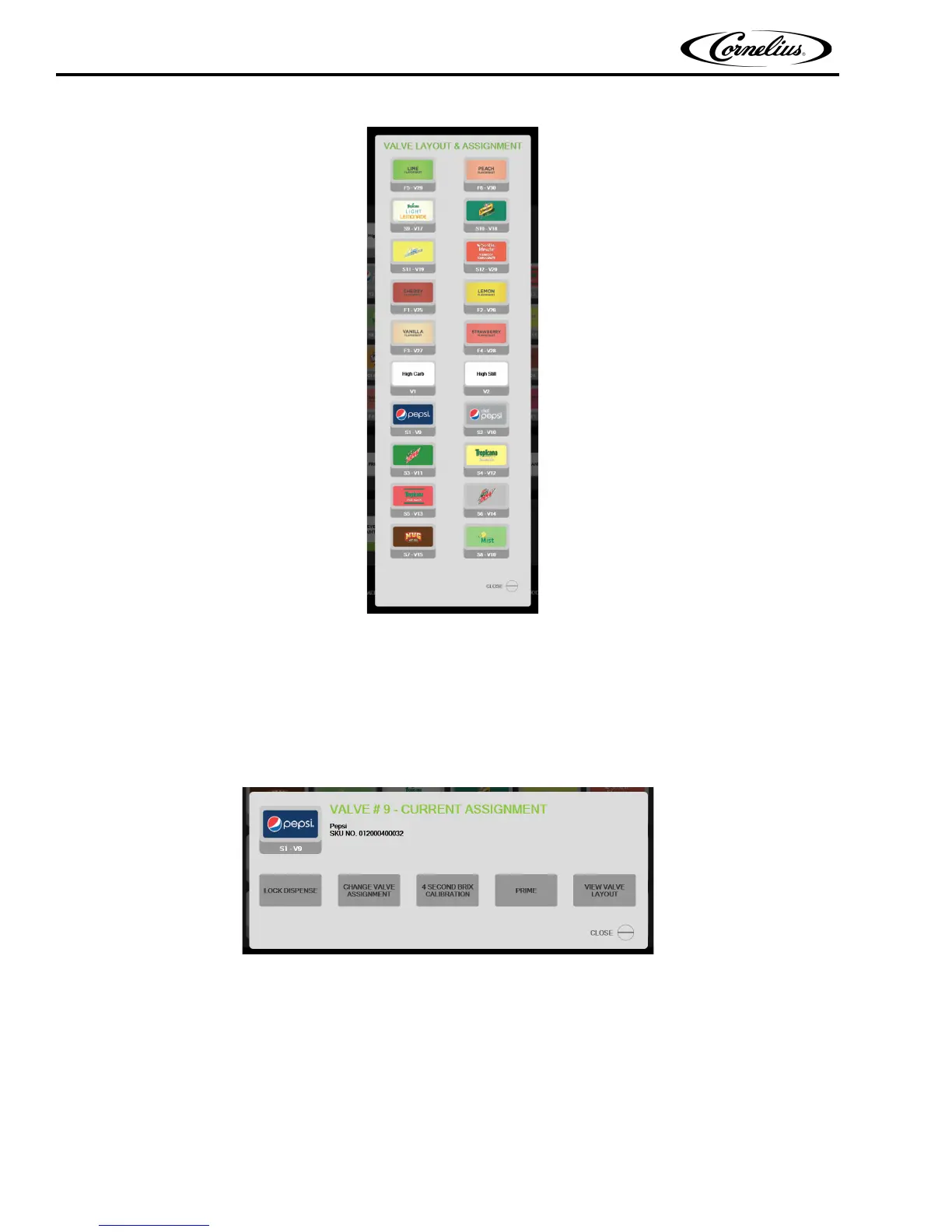

Figure 23.
Valve Assignment Options
When a brand or flavor is selected, a second screen is displayed, as shown in Figure 24, providing the technician
with several options.
NOTE: This option only allows one selection at a time. When dispensing a syrup or flavor no water will
be dispensed. If water is selected no syrup will be dispensed.
Figure 24.
4 Second BRIX Calibration
This selection dispenses a 4 second pour. Possible uses are to check the syrup volumes for brixing or to check that
the valve is dispensing the proper syrup. This function also exists in the priming menu, but in that screen it allows mul-
tiple selections.
