PBD175 (Spire 3.0) Service Manual
Publication Number: 620062609SER - 6 - ©2015-2016, Cornelius Inc.
SPIRE SUBSYSTEMS
Valve control Board
Computer
Valve Assemblies
Valve Assemblies
Door Switch
LX3 Board

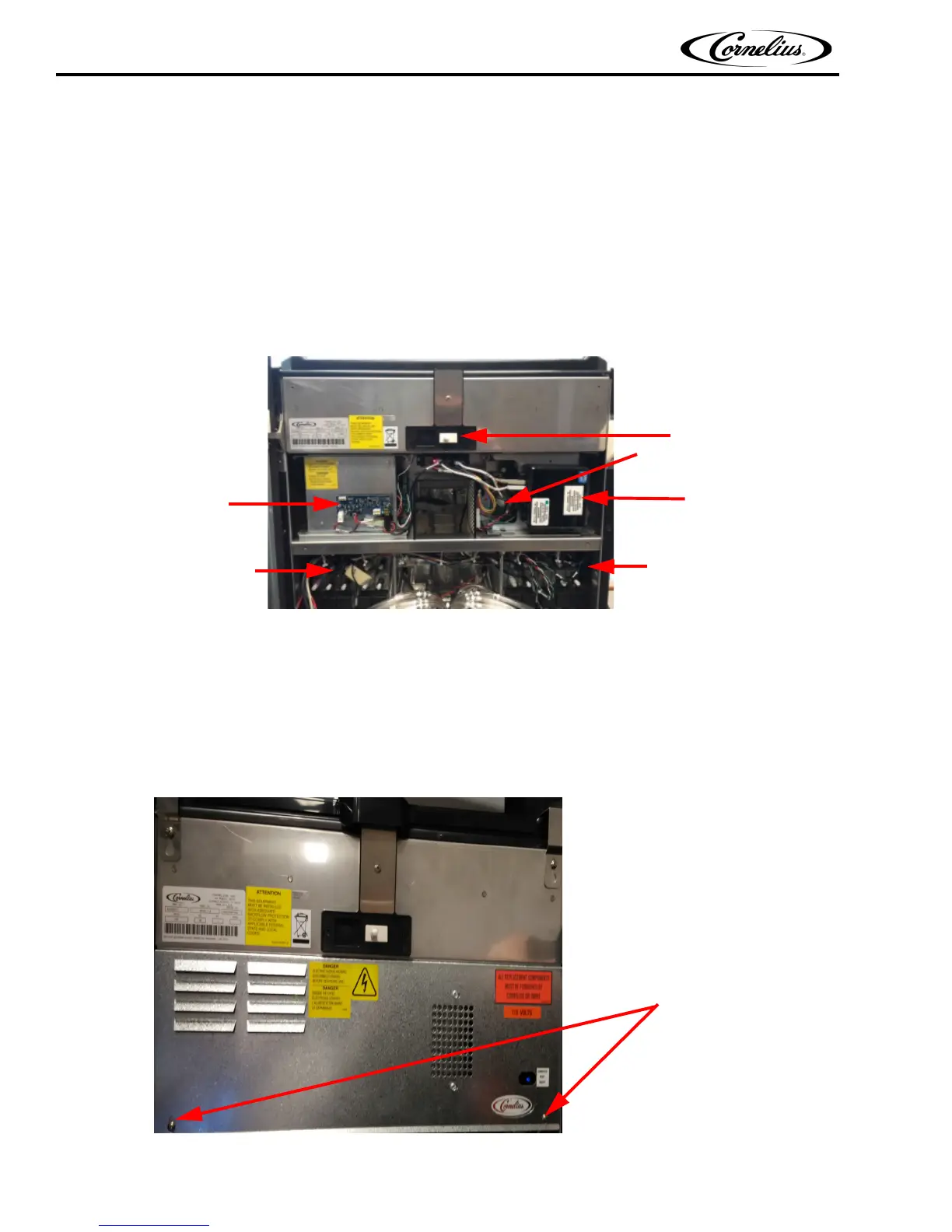

The subsystems that make up the PBD175 (Spire 3.0) unit are shown in Figure 4:
• Computer
• Top Power Supply is 30V only
• Bottom Power Supply is a 12V/24V
• Valve Control Board (MFV)
• ADA (Americans with Disabilities Act) Console
• LX3 Board
• Powered USB Hub (located beneath the computer)
• Valve Assemblies
Figure 4.
Computer
Mounting Screws
The computer controls all functions of the PBD175 (Spire 3.0) unit. This includes the display, all dispense functions,
setup and all external devices, such as the SEN modem.
The computer is shown in Figure 4. It has a power button and a LED on the front.
The computer is located in the top portion of the unit, behind the E-box cover shown in Figure 5.
Figure 5.
