COMPONENT REPLACEMENT
REMOVING THE CLADDING
To remove the cladding, perform the procedure below.
1. Open the door by grasping it on the right side and
swinging it open.

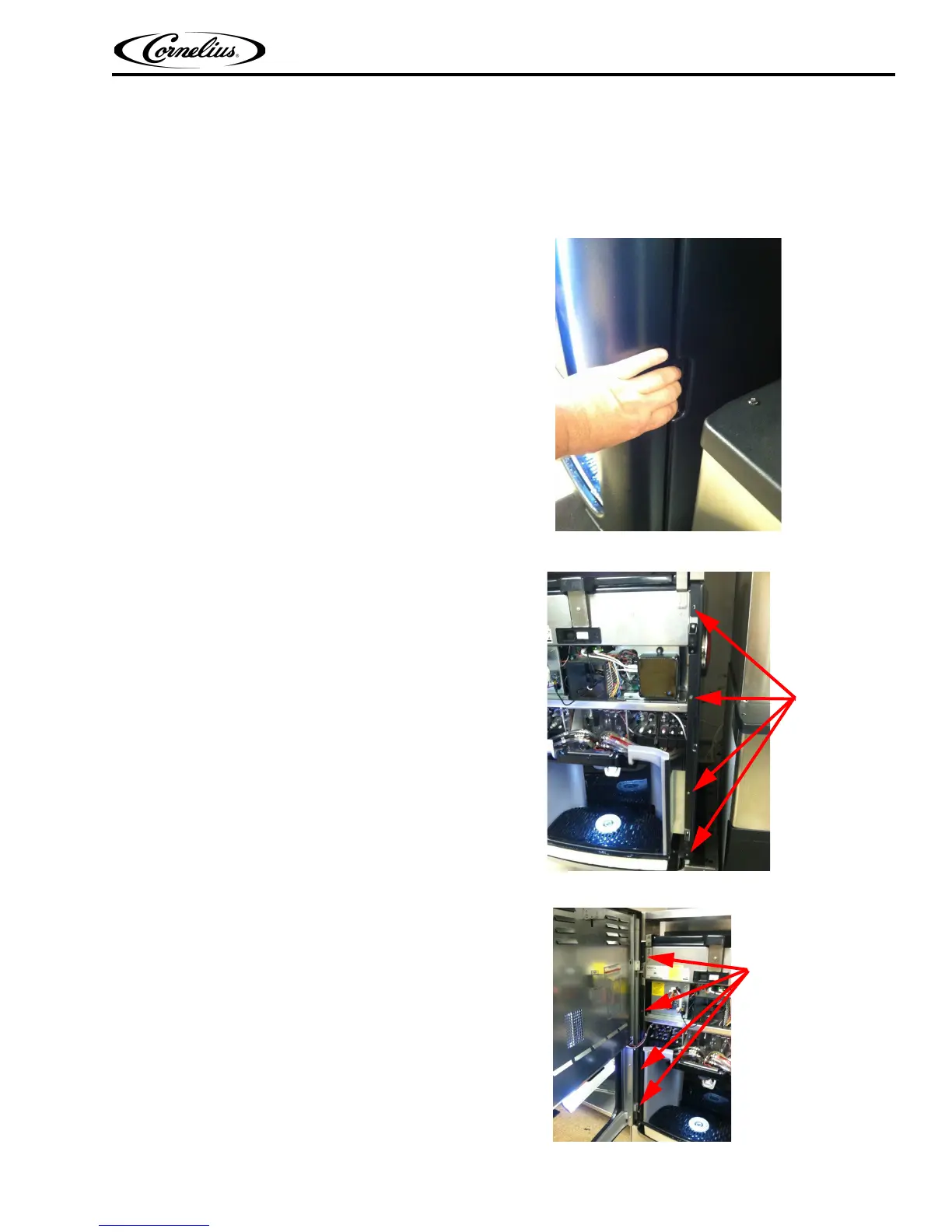

Figure 32.
2. Remove the 4 screws from the latch side of the unit.
Figure 33.
3. Remove the four screws from the hinge side of the
unit.
Figure 34.
