Cornelius pbd175 - Agitator Timer Board Replacement; Agitator Timer Board Replacement Procedure

PBD175 (Spire 3.0) Service Manual
Publication Number: 620062609SER - 42 - © 2015-2016, Cornelius Inc.
Replacing the Agitator Timer Board
If the agitator timer board is malfunctioning, perform the procedure below.
9. Close the door.
10. Reconnect the power cord in the wall receptacle and resume normal operation.
1. Shut down the unit using the service menu on the display.
2. Unplug the power cord from the wall receptacle.
3. Open the door.

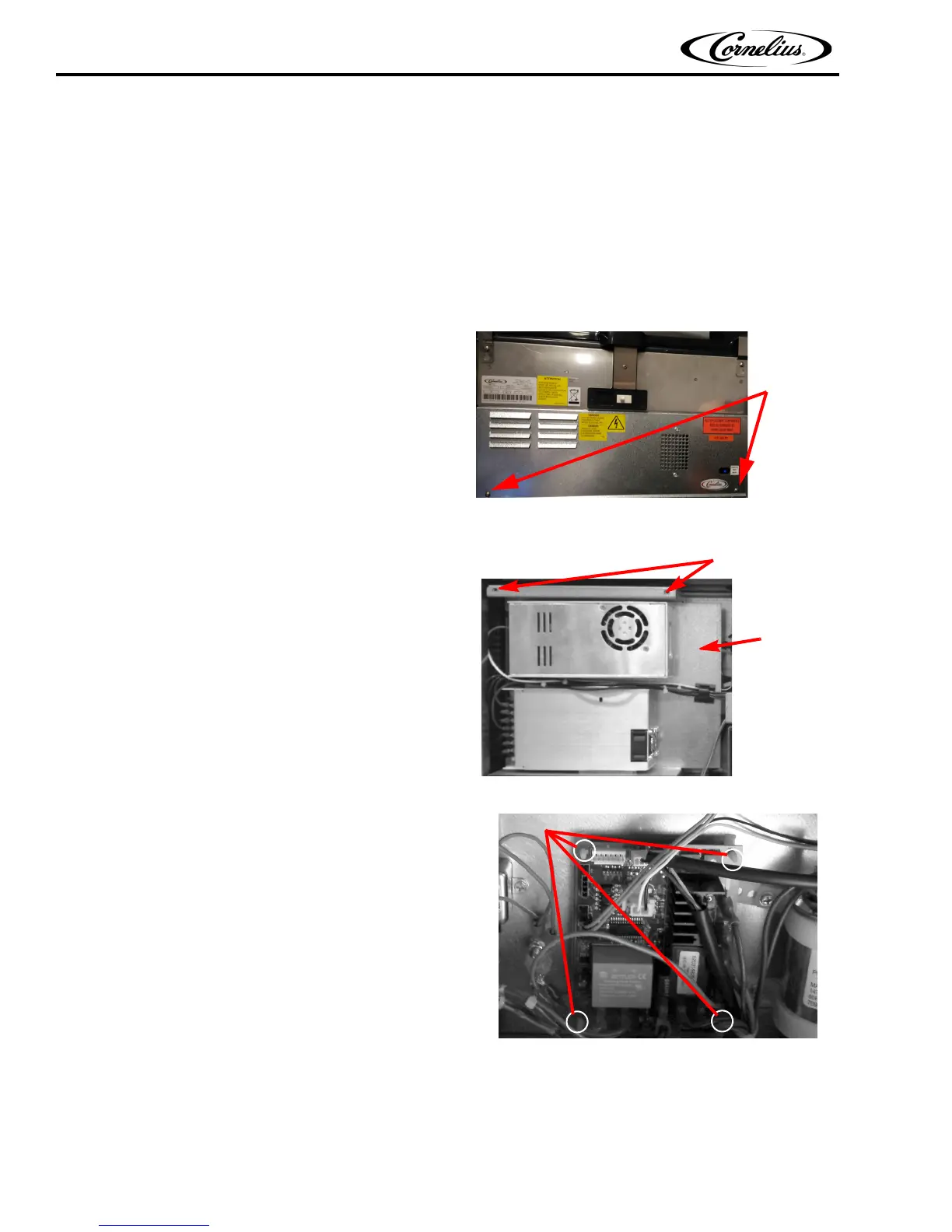

4. Remove the E-box cover by removing the two
mounting screws and sliding the panel down to
disengage the tabs on the top of the panel.
Figure 84.
5. Remove the two screws that mount the power
supply panel to the unit and swing the panel down
to expose the agitator timer board.
Figure 85.
6. Carefully remove and mark all the connectors.
Figure 86.
7. Using a needle nose pliers, pinch the four standoffs
to release the board.
8. Replace the Agitator Timer board and press the new board onto the four standoffs.
9. Reconnect all of the connectors to the board.
Mounting
Screws
Mounting
Plate
Screws
Power
Supply
Mounting
Plate
Standoffs
