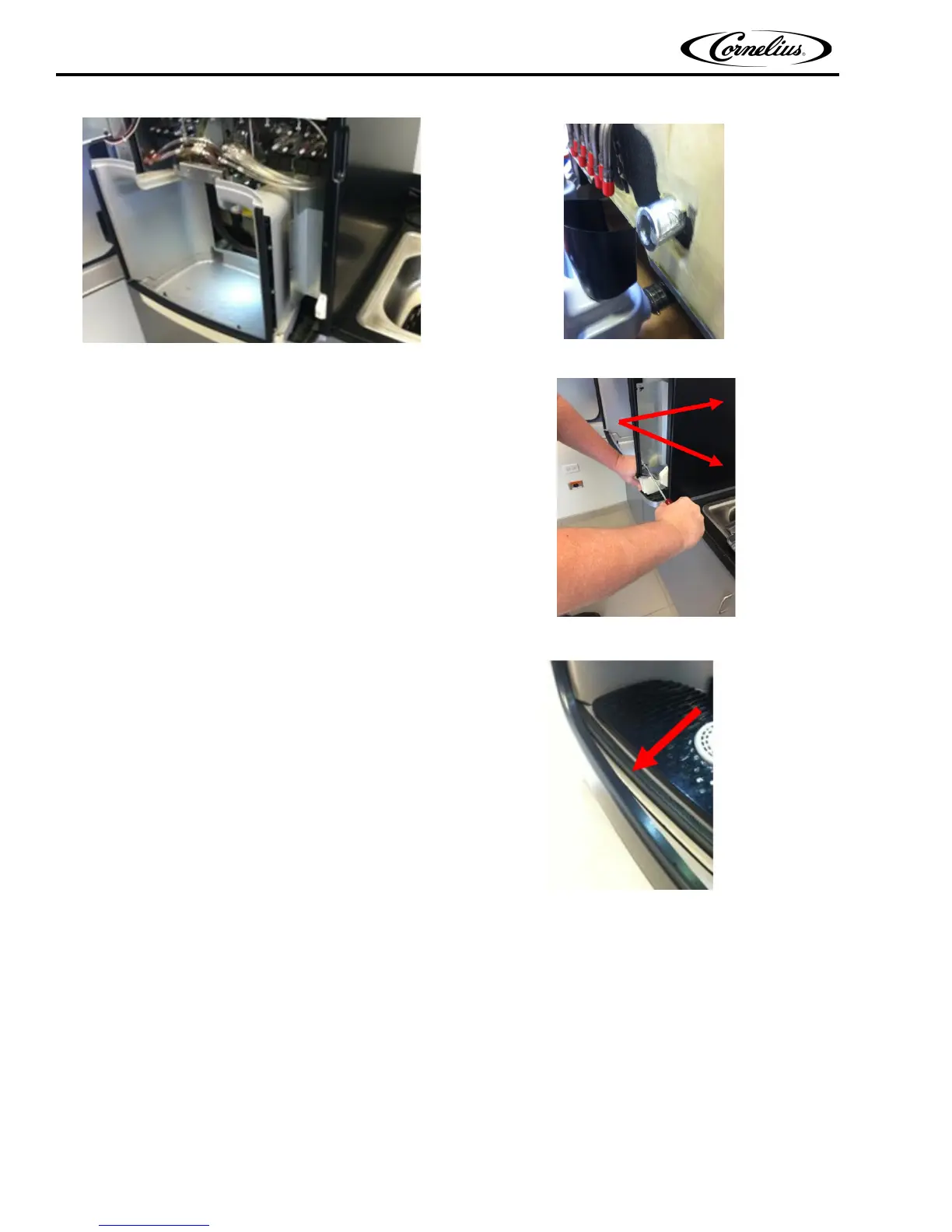

Figure 70. Figure 71.
14. Push the Enclave back and down, tighten the
lower Enclave screw at the mark location with a
screw driver, stop when screw has seated to
prevent overtightening and damage to plastic
mounting parts.
Figure 72.
15. Check Door closure to verify that when the door
is closing it is not ‘grabbing’ or rubbing gasket
on Enclave.
Figure 73.
