PBD175 (Spire 3.0) Service Manual
© 2015-2016, Cornelius Inc. - 39 - Publication Number: 620062609SER
16. If the door has difficulty in closing, loosen the 2
lower screws again and push the enclave fur-
ther back, re-tighten screws.
NOTE: Enclave depth is limited when it touches
the cold plate foam base (See in Figure 74).
If Door still does not close properly, there
is something else not aligned.
Do not attempt to modify enclave.

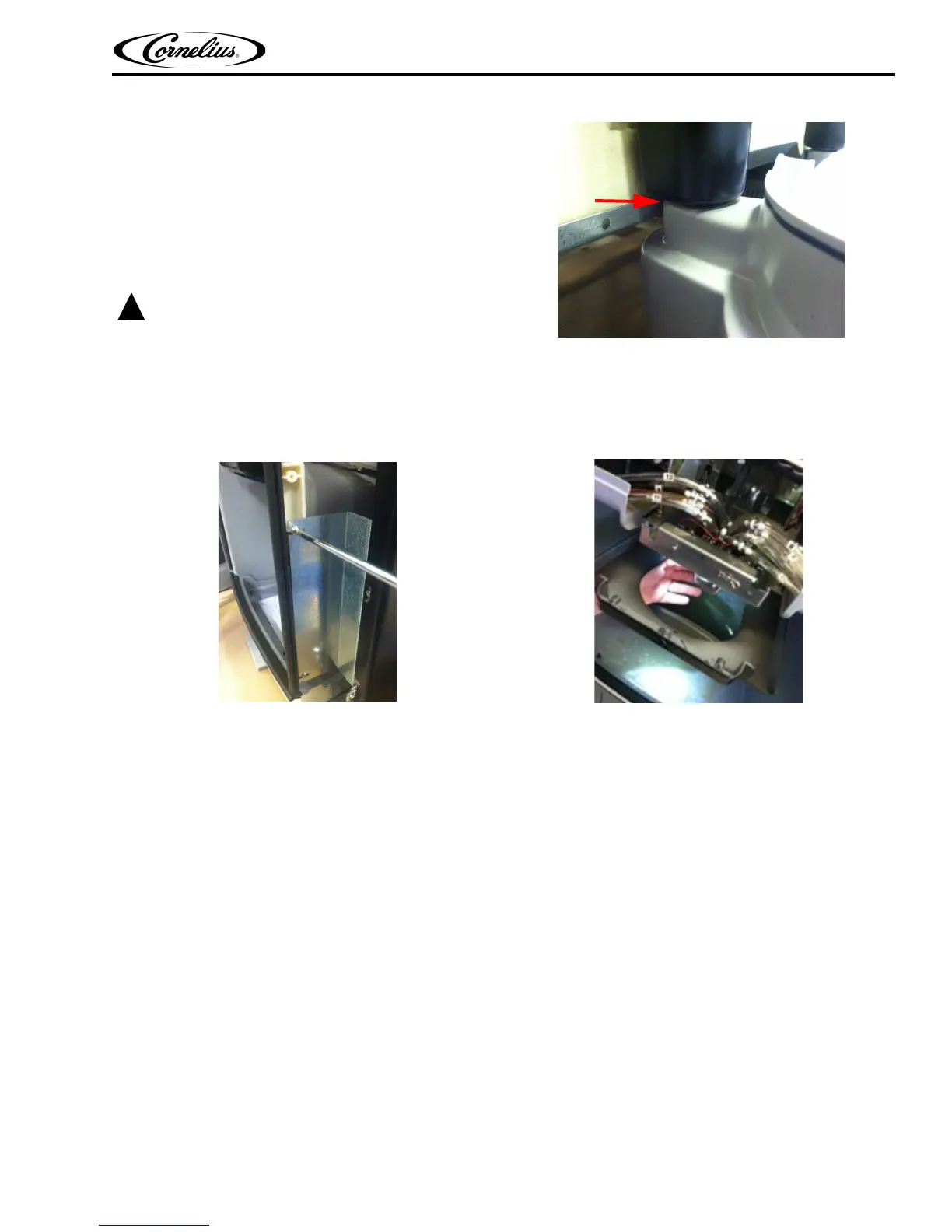

Figure 74.
17. Once door closes properly, tighten the remaining Enclave screws, verify door closure again. If OK, re-
install the Splash Panel by ensuring the ridges on the back of the splash panel clip over the edge of the
enclave. Pull the ice lever forward and push the panel back till the magnets contact the static panel
mounting bracket.
Figure 75.
Figure 76.
18. Verify function of the unit.
