PBD175 (Spire 3.0) Service Manual
Publication Number: 620062609SER - 34 - © 2015-2016, Cornelius Inc.

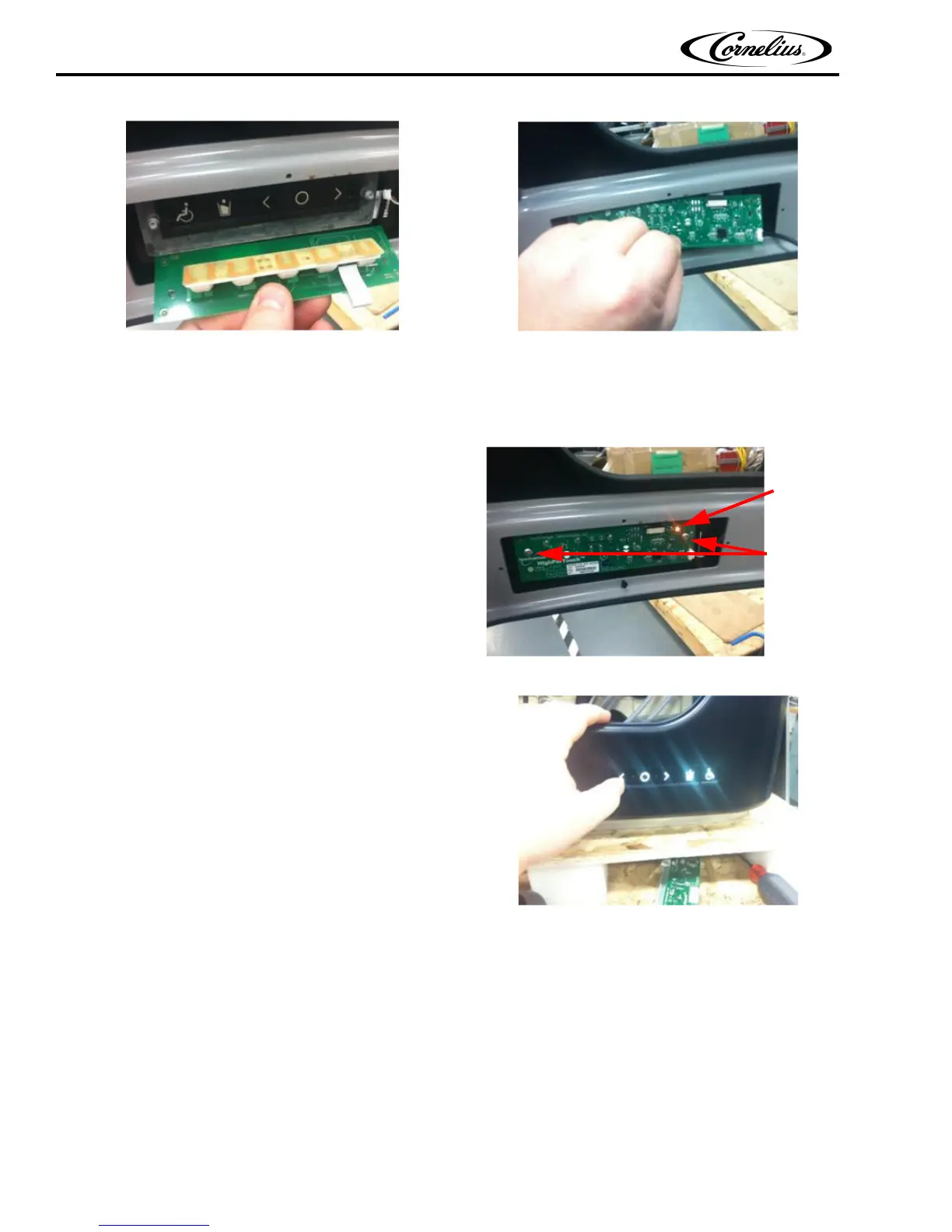

Figure 57.
Figure 58.
6. If done correctly, board assembly mounting holes will align with screw posts and board will appear flush
and not bulging outward.
7. Re-install the 2 mounting screw and plug ADA power harness back into its connector.
8. Once the power harness has been installed, the
board LED should be on.
Figure 59.
9. Test for function, make sure all buttons work and
function properly. When verified and complete, re-
install ADA service cover with panel clips.
Figure 60.
