4-4 4-SHIPPING, HANDLING AND UNPACKING
COROB™ TATOCOLOR
4. Lower both feet at the front of the machine (see point 12) until the wheels are no longer
resting on the pallet surface.
5. Completely unscrew and remove all screws and nuts (1 and 2) that fix the rear bracket to the
base of the pallet (Figure 4-3).
6. Operating from the front side, with one person at each corner, tilt the machine frontally until
the rear bracket (1) (Figure 4-4) is free and can be removed by a third person.

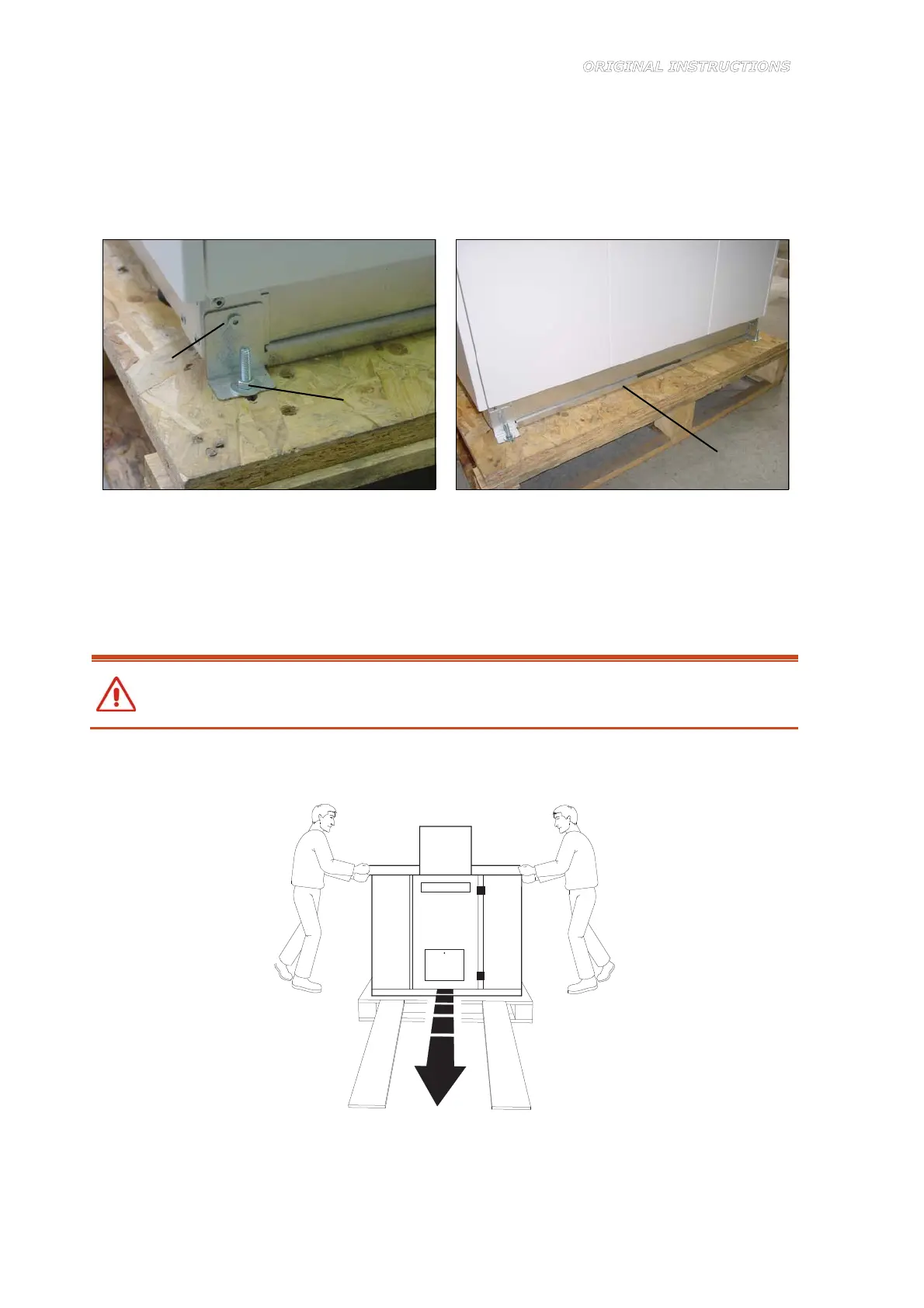

Figure 4-3 Figure 4-4
7. Completely unscrew and remove all screws and nuts that fix the front bracket to the machine
and the pallet.
8. Remove the bracket.
9. Raise the two feet at the front as described in point 12, until the wheels touch the pallet
surface.
The machine must always be lowered to the ground from the pallet using the wheels and
special sliding platforms provided; it must never be lifted by hand or dragged in any other
manner.
10. Grasp the machine on the sides as shown in the figure, then slide it slowly along the
platforms on its wheels, making sure they remain centered on the platforms, then lower it to
the ground (Figure 4-5).
Figure 4-5
11. Place the machine in its working position; the machine support surface must be stable and
level. The ideal placement surface is always the floor.
2
1
1
