Setup Assembling the CubiScan 125
CubiScan 125 10
1. Route the height sensor cable from the top of the gate support up the
side of the top sensor support as shown below.
2. Place the supplied cable ties over the sensor cable and through the holes
on either side and secure them to hold the sensor cable in place.

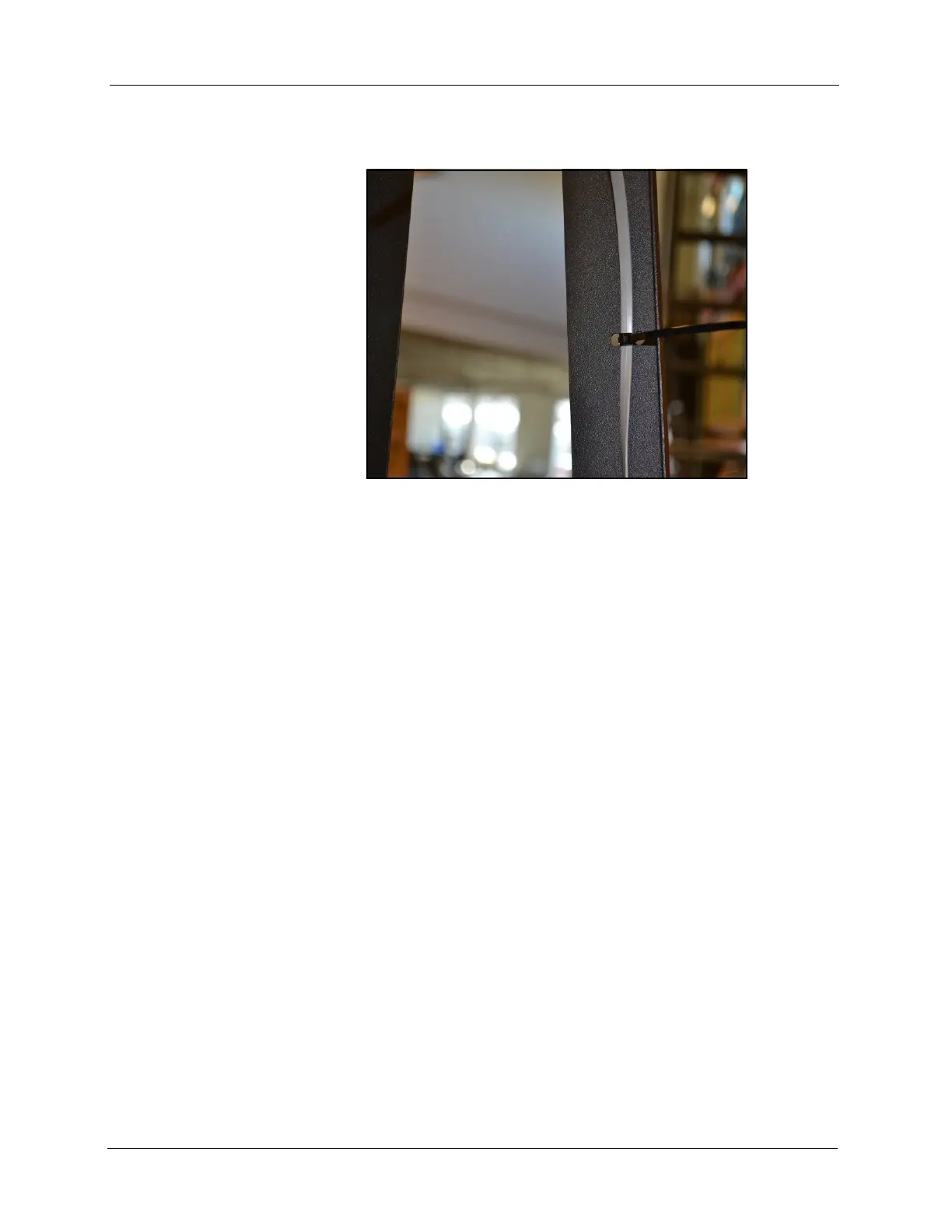

Figure 6
Routing the Height Sensor Cable
To Next Page
