Setup Assembling the CubiScan 125
CubiScan 125 13
2. Cut the cable tie holding the measuring gate in place, and remove the
bubble wrap.
Placing the Glass Platform
1. Remove the glass cubing and weighing platform from the cardboard
box that was in the shipping crate, and carefully place it on the platform
frame, as shown below.

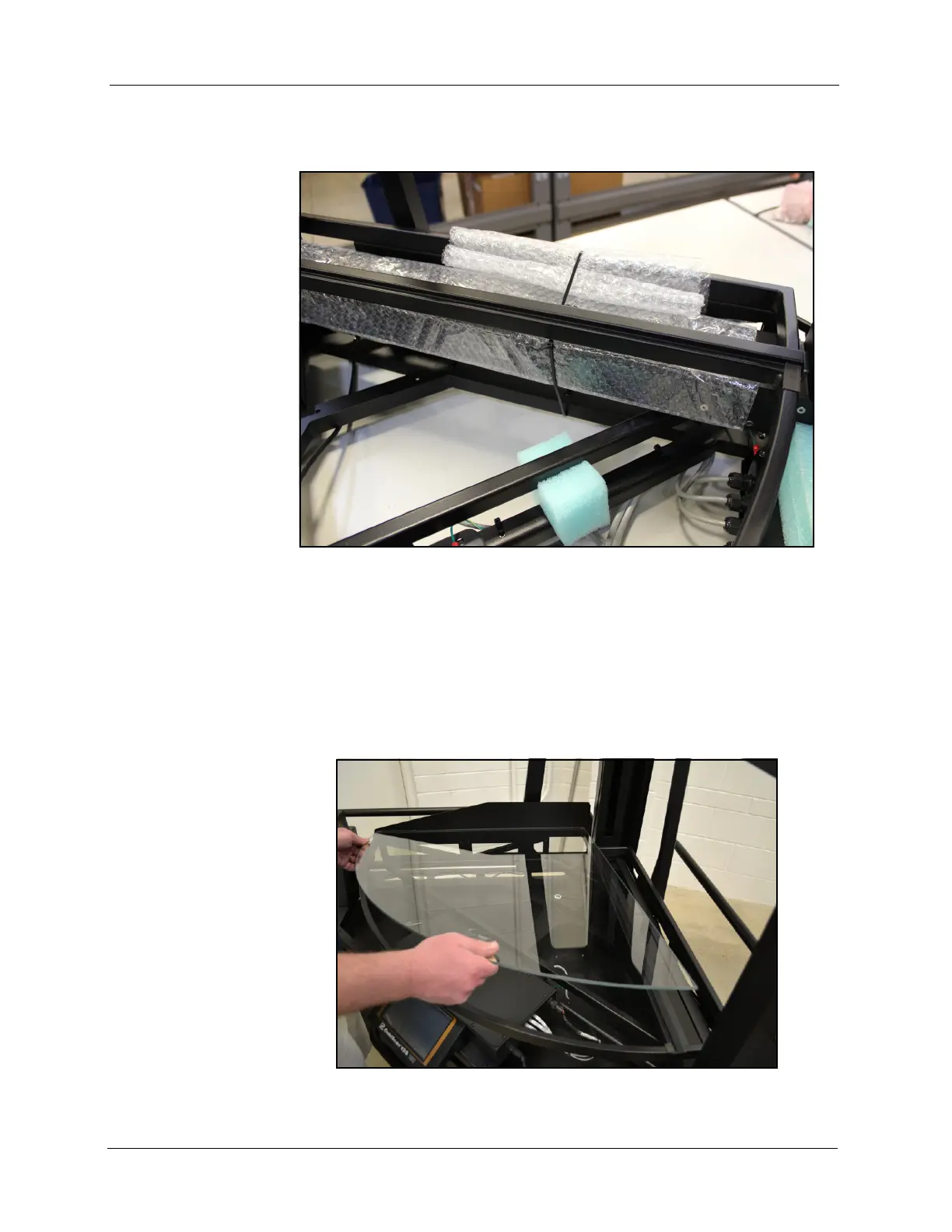

Figure 10
Cable Tie Holding Measuring Gate
Figure 11
Glass Cubing and Weighing Platform
To Next Page
