Configuration System Configuration
CubiScan 125 34
Display Dim
Weight
Check this box if you want the dim weight and factor to be displayed on the
home screen.
Enable Scale Check this box if you want to enable the CubiScan 125’s scale. If this box is
not checked, weight will not be reported on the home screen or sent in the
data packet.
Enable
Ultrasound
Check this box if you want to enable the CubiScan 125’s ultrasound sensors.
If this box is not checked, measurements cannot be taken using ultrasound.
Enable Ethernet Check this box if you want to enable Ethernet communication.
Enable Smallest
Box
Check this box if you want to enable the smallest box mode. This mode
boxes items into the smallest box possible, the placement of the item on the
platform makes no difference. Turning off the smallest box mode measures
items depending on their placement on the platform.
The images below illustrate the difference between having the smallest box
mode on or off.

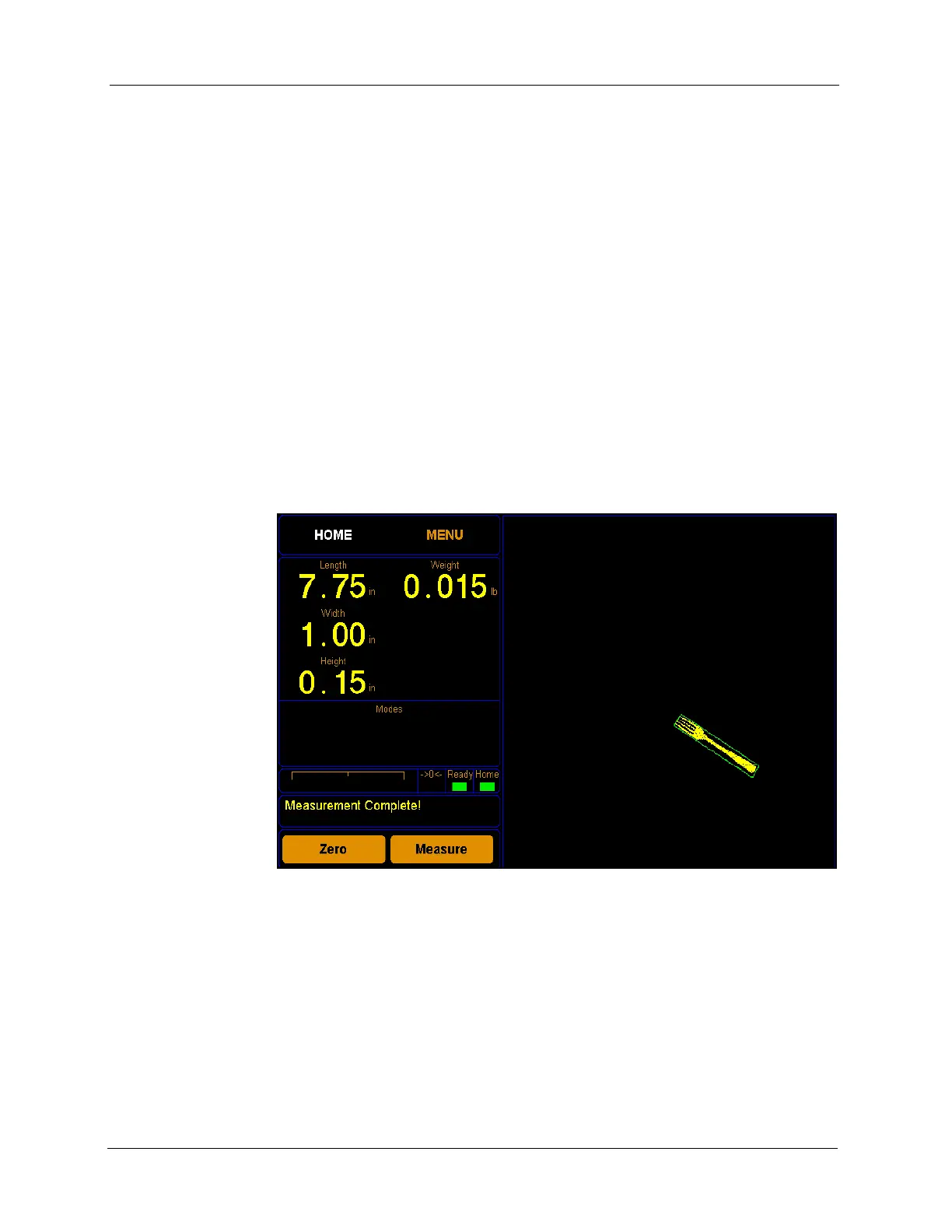

Figure 29
Smallest Box Mode On
