Troubleshooting Diagnostics
CubiScan 125 76
2. Tap DIAGNOSE. Select the Touchscreen option if it is not already
selected.
From this screen you can view the linearization parameters of the
touchscreen.
To test the calibration of the touchscreen you can touch the screen and a
x
should appear.
Sensor Diagnostics
Complete the following steps to view the sensor diagnostics.

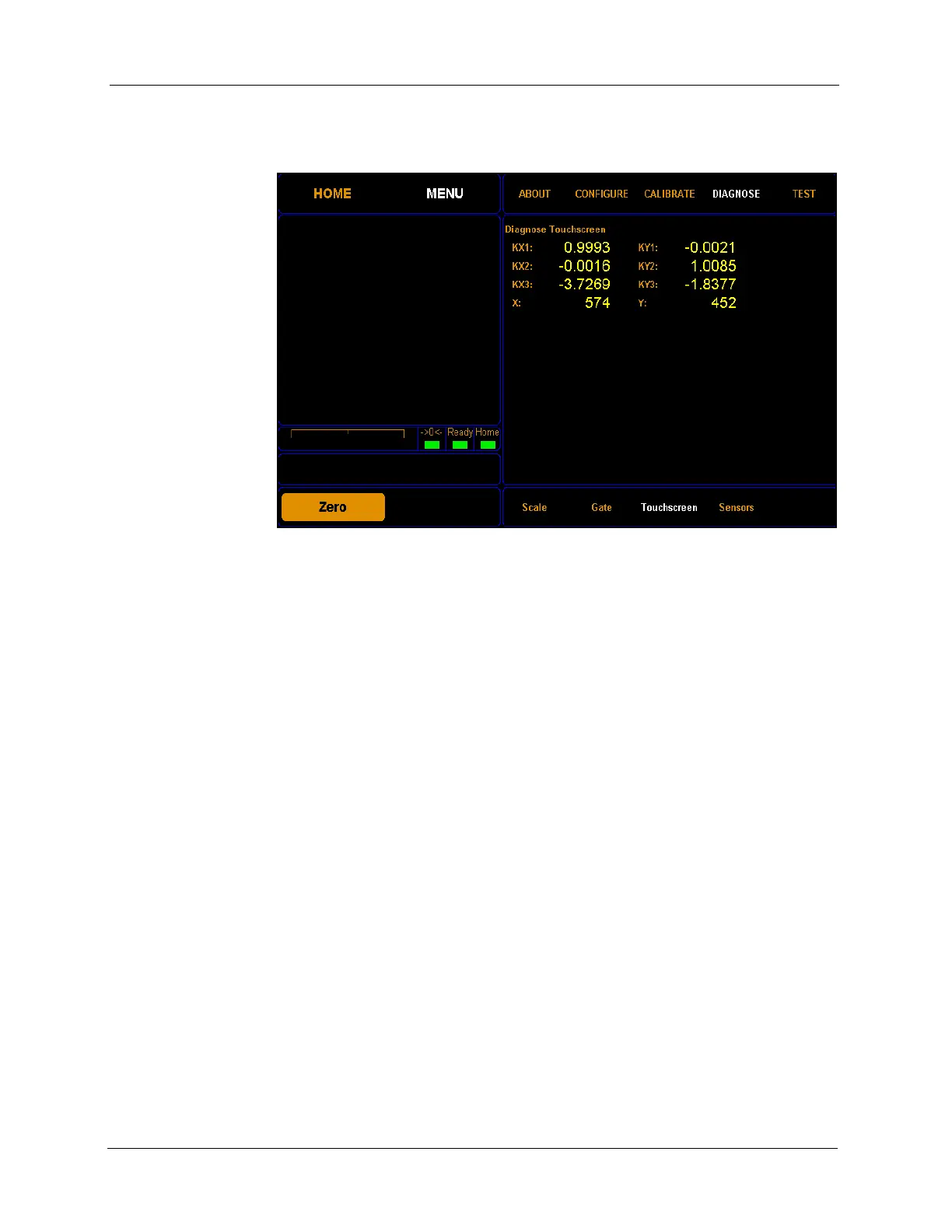

Figure 72
Diagnostic Touchscreen
