CubiScan 125 - Gate Testing

Troubleshooting Tes ti ng
CubiScan 125 80
2. Tap TEST. Select the Scale option if it is not already selected.
From this screen you can test for scale repeatability. Only run this test if
instructed to by a Quantronix employee.
Gate
Complete the following steps to view the Gate Testing.

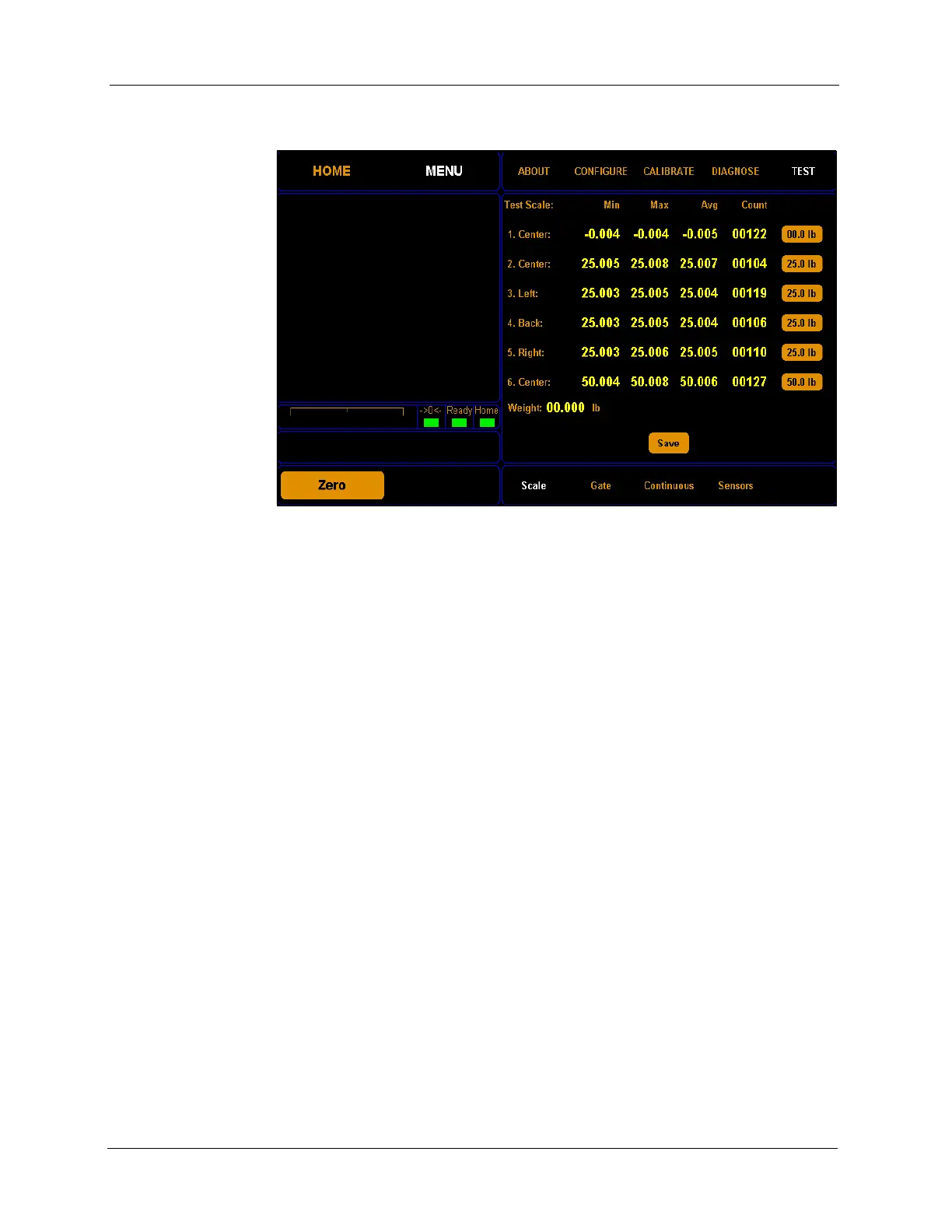

Figure 76
Test Scale
